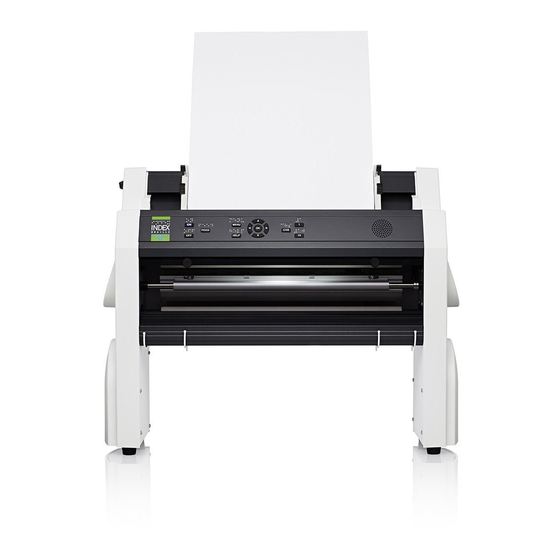

- Page 1 Index V5 Embosser manual 2016-05-13...
-
Page 2: Table Of Contents
Index V4 Embosser manual Contents 1. Safety information 1.1 Approvals ........................... 1 2. Index V5 embosser overview 2.1 Back lighted text on all models ........................... 2 2.2 Basic-D ........................... 2 ................................. 2 2.2.1 LED feedback Basic-D 2.3 Everest-D ........................... 3 2.3.1 LED feedback Everest-D... -
Page 3: Safety Information
5250-5350 M Hz et 5470-5725 M Hz doit se conformer à la pire limite, et le gain d'antenne maximal autorisé pour les appareils dans la bande www.indexbraille.com © 2016 Index Braille... -
Page 4: Index V5 Embosser Overview
Il doit être installé et utilisé en maintenant une distance minimum de 20 cm entre le radiateur et votre corps. Bloutooth Qualification This device contains Bluetooth module qualified as "Controller system" - QD ID 58171 Index V5 embosser overview Back lighted text on all models Bluetooth, Wi-Fi, Network; Blinking when available, steady when connected idB: Blinking during translation, lighted during printing with idB UPDATE: Activated when the embosser is network connected. -
Page 5: Everest-D
Index V5 embosser overview Everest-D 1. Control panel 11. Ventilation outlet 2. Sheet feeder 12. Electrical connectors 3. Paper guides 13. Switch to close/open the sheet feeder 4. Embossing head 14. Card/sheet selectors (right/left) 5. Speaker 15. Locking levers for margin guides (right/left) 6. -
Page 6: Electrical Connectors Braillebox
Follow the wizard steps. When completed the embosser will re-start and is ready to be used. BrailleBox pictures 1. Rubber seal 2. Transport box 3. Braille tray glass 4. Three print head transport locks www.indexbraille.com © 2016 Index Braille... -
Page 7: Speech Feeback
V5_firmware_readme file www.indexbraille.com Upgrade via Internet connection When the V5 embosser is connected to an IP port with connection or Wi-Fi to Internet it will automatically check for an upgrade. When the UPGRADE text is lighted, a new upgrade is available. -
Page 8: Install To Usb Port
Index Braille printer driver on your computer before connecting the embosser to the USB device port. To find the current version of the Index Braille printer driver for your embosser, access the control panel in your computer. Select control panel/ Uninstall a program/ Index Braille Driver. -
Page 9: Connect To Wi-Fi Network
Braille in grade 0 (computer), 1 (literary) and 2 (contracted) o Word (.doc) files o PDF (.pdf) files o Text (.txt) files o Word XML (.docx) files o Page numbering o Volume handling (for braille books) www.indexbraille.com © 2016 Index Braille... -
Page 10: Emboss With Idb In Windows
3.3.5 External Braille editor Emboss with a commercial or freeware Braille editor The majority of Braille editors available have good functionality with Index Braille embossers. For more information please check the below link for compatible braille editors. http://www.indexbraille.com/en-us/support/braille-editor-software www.indexbraille.com... -
Page 11: Paper Handling
120 - 590 mm 130 - 297 mm paper paper sizes BrailleBox 11,5-17 inches 250 mm, 11 inches, Cut sheet Supports fixed paper 292 - 431,8 mm 297 mm paper sizes: A3, Tabloid 11x17", 11.5x11", B4 www.indexbraille.com © 2016 Index Braille... -
Page 12: Paper Loading
Everest is placed on a table and a 45 degree downward angle for use in Acoustic Hood Everest. o Adjust the two inner document guides to line up with the paper edges www.indexbraille.com © 2016 Index Braille... -
Page 13: Control Panel
A3, Tabloid 11x17 inches, 11.5x11 inches and B4. paper in Control panel Menu summary 5.1.1 About the V5 menu ON key o Blinking ON, indicate ongoing start up process o Lighted ON, the embossers is on MENU - Open menu function... -
Page 14: Key Functions
Normally "10" represent value 10 NUMBER When it represents other values this will be presented by KEYS speed feedback. Run paper arm release sequence, BrailleBox only Toggle between increase or decrease Restart the embosser, hold ON for 10 seconds www.indexbraille.com © 2016 Index Braille... -
Page 15: Multiple Layouts To Customize
5.1.3 Multiple layouts to customize Index V5 embossers are equipped with 1-9 user defined adjustable layouts. Active layout The active layout is the current one in use. All changes to the layout settings will be made in the active layout. -
Page 16: Menu Tree V5
Index V4 Embosser manual Braille page layout, lines per page, characters per line, margins Braille page number and position 5.1.4 Menu tree V5 MAIN MENU SUB MENU FUNCTION INFO Print compete document Number of copies Print previous Print part of document... - Page 17 Eve re st-D: Paper in, head, feed, fan Braille Box: Paper in, paper out, paper tray, braille tray, service door, braille stack Firmware upgrade from Internet Firmware Firmware upgrade from USB memory update stick Backup config.sys file to USB memory Backup www.indexbraille.com © 2016 Index Braille...
-
Page 18: Wizards In 2.0
SUB MENU FUNCTION INFO Command Start command center coming soon center Start service command center coming soon Production test Wizard for Index Braille test during Protected wizard production service Recovery Start recovery mode coming soon Remote Start remote support coming soon support Wizards in 2.0... -
Page 19: 1.Ii. Advanced Wizard
Binding margin Select from list When space for binding margin is available. In booklet format the minimum binding margin is 1 characte r. Volume Number of pages in each braille Divides a document into volumes. www.indexbraille.com © 2016 Index Braille... - Page 20 Braille volume Adds "V1" (Volume 1) on the Enabled when: number left side of the braille page Braille page number is ON number Volume handling is ON Wizard Wizard completed press OK to save completed www.indexbraille.com © 2016 Index Braille...
