Altronix OLS20220 Quick Manual

OLS20220 power supply/charger converts 220VAC 50/60Hz input into a 12VDC @ 1A or 24VDC @ 0.5A
of continuous supply current (refer to specifications). This general purpose power supply has a wide range of
application for access control and security system accessories that require additional power.
Input:
• 220VAC (working range 198VAC-256VAC),
50/60Hz, 0.25A.
Output:
• 12VDC or 24VDC selectable operation.
• 0.5A continuous supply current @ 24VDC*
1A continuous supply current @ 12VDC*.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Maximum charge current 0.3A.
* Specified at 25˚C ambient.

Voltage Output Selection Table:

Output VDC
12VDC
24VDC
OLS20220 should be installed in accordance with the National Electrical Code and all applicable Local Regulations.
1. Mount the OLS20220 in the desired location/enclosure (mounting hardware included).
2. Set the OLS20220 to the desired DC output voltage via SW1 (refer to Voltage Output Selection Table).
3. Connect AC power to connector #1 (Fig. 1) (black & white flying leads) and ground (green flying lead)
Use 18 AWG or larger for all power connections (Battery, AC input).
Keep power-limited wiring separate from non power-limited wiring (220VAC 50/60Hz Input,
Battery Wires). Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts.
Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
4. Measure output voltage before connecting devices. This helps avoiding potential damage.
5. Connect devices to be powered to the terminals marked [– DC +] (Fig. 1).
6. When the use of stand-by batteries is desired, they must be lead acid or gel type.
Connect battery to the terminals marked [– BAT +] (Fig. 1).
Use two (2) 12VDC batteries connected in series for 24VDC operation.
Note: When batteries are not used, a loss of AC will result in the loss of output voltage.

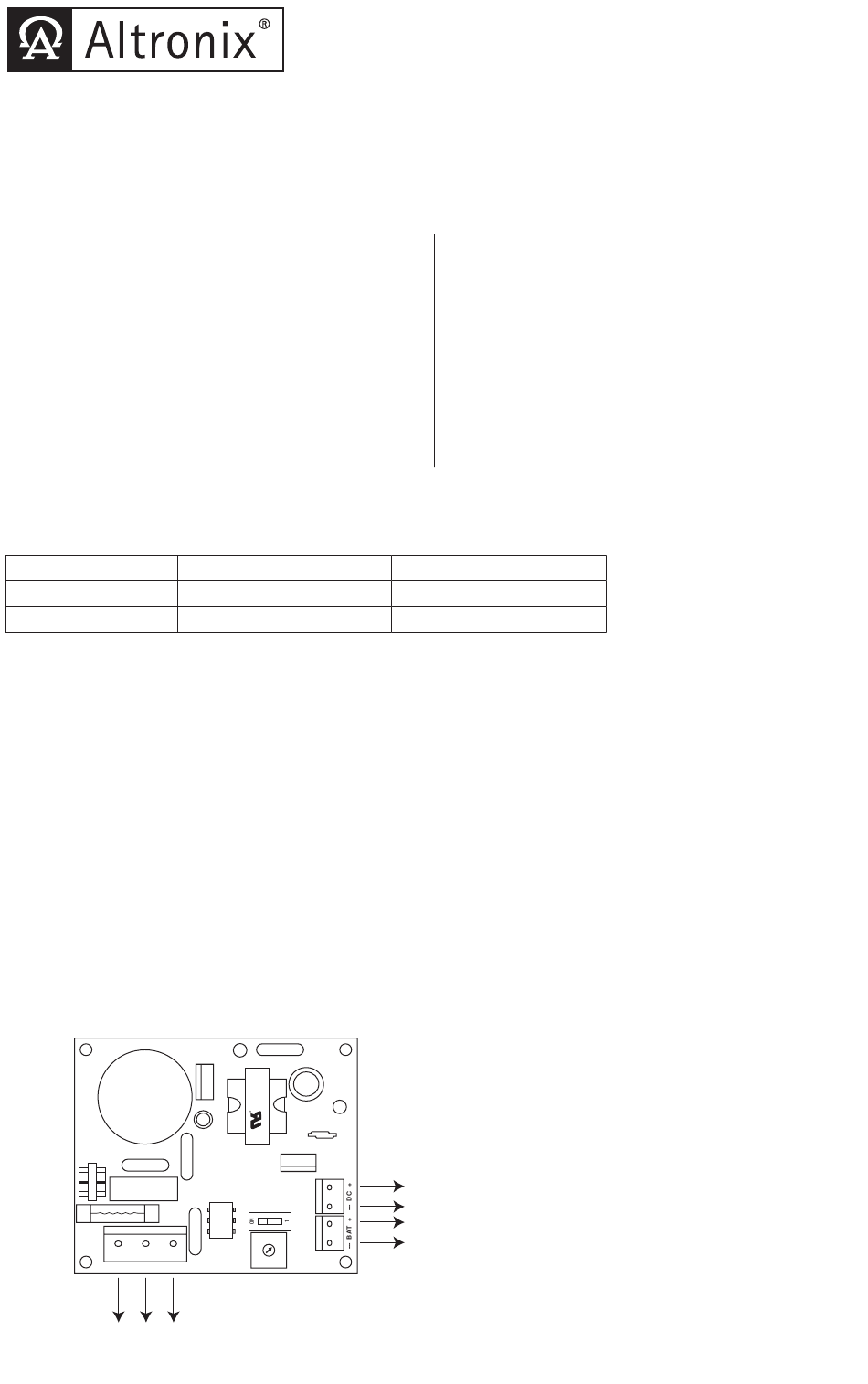

Fig. 1
L G
Bk Gr Wh
CONNECTOR #1
OLS20220
Off-Line Power Supply/Charger
Switch Position
SW 1 - ON
SW1 - OFF

Installation Instructions:

AC
DC
PTC2
OFF - 24V
SW1
ON - 12V
MADE IN USA
VR1
N

Overview:

Specifications:

Battery Backup (cont'd):
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
Additional Features:
• AC input and DC output LED indicators.
• Operating temperature: -20ºC to 50ºC.
• Includes battery leads.
Board Dimensions (W x L x H approx.):
3" x 2.5" x 1" (76.2mm x 63.5mm x 25.4mm).
Max. Load DC
1.2A
0.5A
Rd
CONNECTOR #2
Bk
Rd
CONNECTOR #3
Bk
