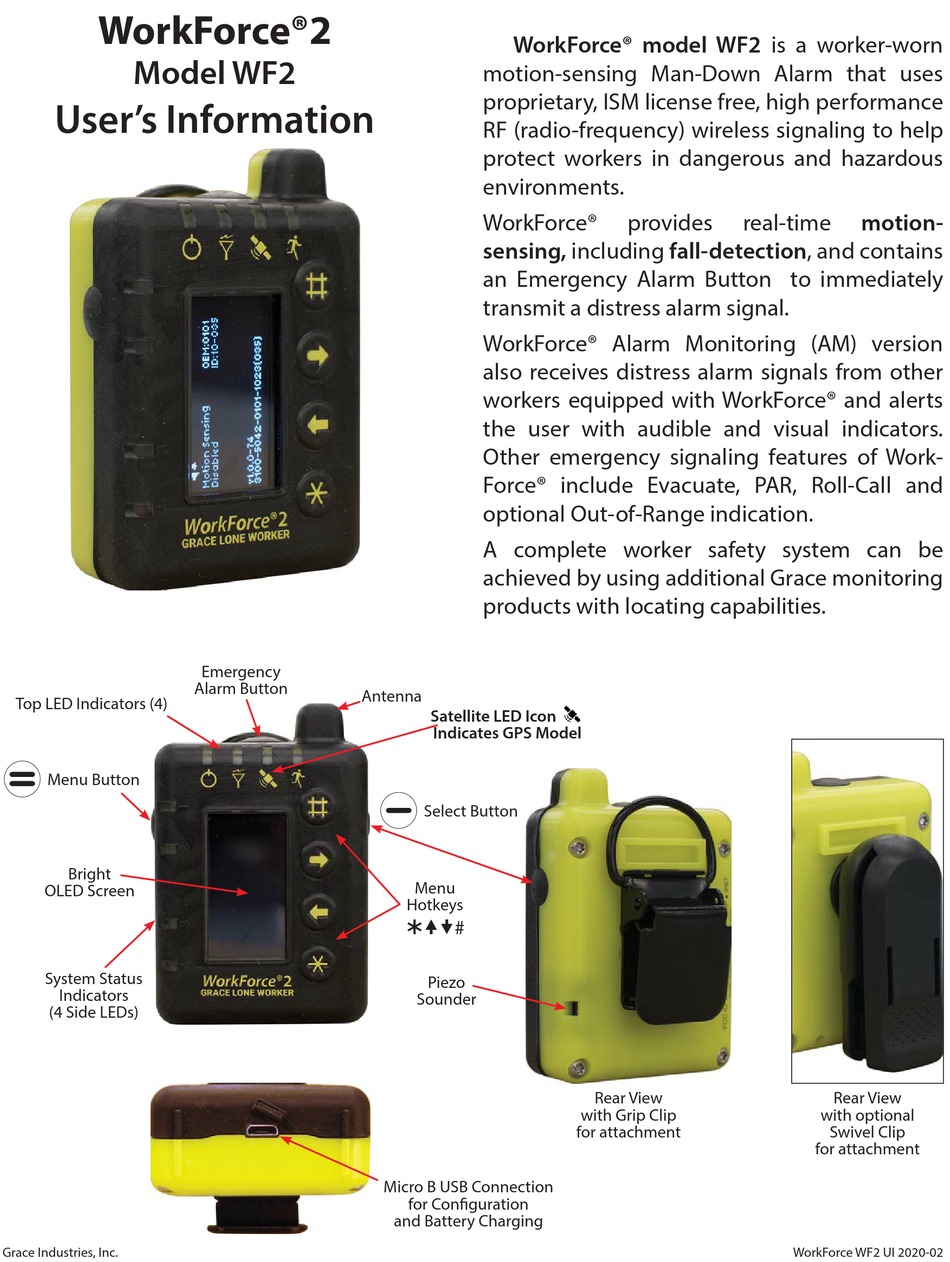

WorkForce®2
WorkForce® model WF2 is a worker-worn
Model WF2
motion-sensing Man-Down Alarm that uses
proprietary, ISM license free, high performance
User's Information
RF (radio-frequency) wireless signaling to help
protect workers in dangerous and hazardous
environments.
WorkForce®
provides
real-time
motion-
sensing, including fall-detection, and contains
an Emergency Alarm Button to immediately
transmit a distress alarm signal.
WorkForce® Alarm Monitoring (AM) version
also receives distress alarm signals from other
workers equipped with WorkForce® and alerts
the user with audible and visual indicators.
Other emergency signaling features of Work-
Force® include Evacuate, PAR, Roll-Call and
optional Out-of-Range indication.
A complete worker safety system can be
achieved by using additional Grace monitoring
products with locating capabilities.
Emergency
Alarm Button
Antenna
Top LED Indicators (4)
Satellite LED Icon
Indicates GPS Model
Menu Button
Select Button
Bright
Menu
OLED Screen
Hotkeys
#
System Status
Piezo
Indicators
Sounder
(4 Side LEDs)
Rear View
Rear View
with Grip Clip
with optional
for attachment
Swivel Clip
for attachment
Micro B USB Connection
for Confi guration
and Battery Charging
Grace Industries, Inc.
WorkForce WF2 UI 2020-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorkForce 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Grace Industries WorkForce 2

Summary of Contents for Grace Industries WorkForce 2

  • Page 1 System Status Piezo Indicators Sounder (4 Side LEDs) Rear View Rear View with Grip Clip with optional for attachment Swivel Clip for attachment Micro B USB Connection for Confi guration and Battery Charging Grace Industries, Inc. WorkForce WF2 UI 2020-02...

  • Page 2: Mode Selection

    NOTE: If an alarm has been received, the WorkForce® will not turn off until the • Audio Alarm pauses briefl y as an aid for determining location when alarm has been cleared or reset. personnel need assistance. • Radio LED fl ashes Green when transmitting the emergency radio signal. Grace Industries, Inc.
  • Page 3 10-25% 26-50% 51-75% 76-100% LAT: 00E2F0E6 Battery Battery Battery Battery Battery Power Power Power Power Power LON: FE46AE73 Press the /# buttons to view Quality of Fix Screen, Time to First Fix and additional GPS information screens. Grace Industries, Inc.
  • Page 4 Setup Mode. End of Setup Mode Screens Pressing MENU will navigate away from the Alarm Disabled Notifi cation page. Resetting the device will exit out of Setup Mode and return the Work- Force® to the home page. Grace Industries, Inc.

  • Page 5: Battery Charging

    • Battery fully charged: All 4 LEDs will blink Green. • Partially charged: While charging, these LEDs will indicate the current Battery Power Level. Battery Power Level < 10% 10-25% 26-50% 51-75% 76-100% Battery Battery Battery Battery Battery Power Power Power Power Power Grace Industries, Inc.

  • Page 6: Definition Of Terms

    Alarm Inhibit Timer: When WorkForce® receives an alarm Man-Down Alarm Mode: A WorkForce® or other GRACE message from another GRACE Industries device and that safety device enters an audible Alarm Mode when the Pre- alarm is cleared, the Alarm Inhibit Timer provides a 30 sec- Alert Timer counts down to zero.

  • Page 7: Specifications

    Grace Industries, Inc.

  • Page 8: Warranty Information

    This warranty is void if any attempt to repair or replace parts was made or attempted by other than qualifi ed Grace Industries, Inc. personnel. This warranty is void if any of the sealed compartments are opened or tampered with.
  • Page 9 Setting will not be changed until the <Sync Device Setting> button is clicked. A pop up window will acknowledge that device settings have been updated Note the unit will drop out of HID confi guration mode after 5 minutes of inactivity. To reconnect, you must turn the unit off and start over at step 3. Grace Industries, Inc.

  • Page 10: Device Settings Tab

    Out of Range alert will occur if WorkForce® has not received a ping message from a base station within the set timeout period. NOTE: To use this function, WorkForce® must be used with, and in communication with, a Grace Base (MS2000, SMS, Grace-Watch, Alarm Box, MX900, etc.) Grace Industries, Inc.

  • Page 11: Device Log

    Print Log: Prints existing Log fi le. Clear Device Log: This erases the logs in the connected device. Diagnostics Window: This window shows USB connections diagnostics data. You can save the diagnostic log for debugging if needed. Grace Industries, Inc.
  • Page 12 305 Bend Hill Road, Fredonia, PA 16124 USA www.graceloneworker.com (724)-962-9231 Grace Industries, Inc. WorkForce WF2 UI 2020-02...
