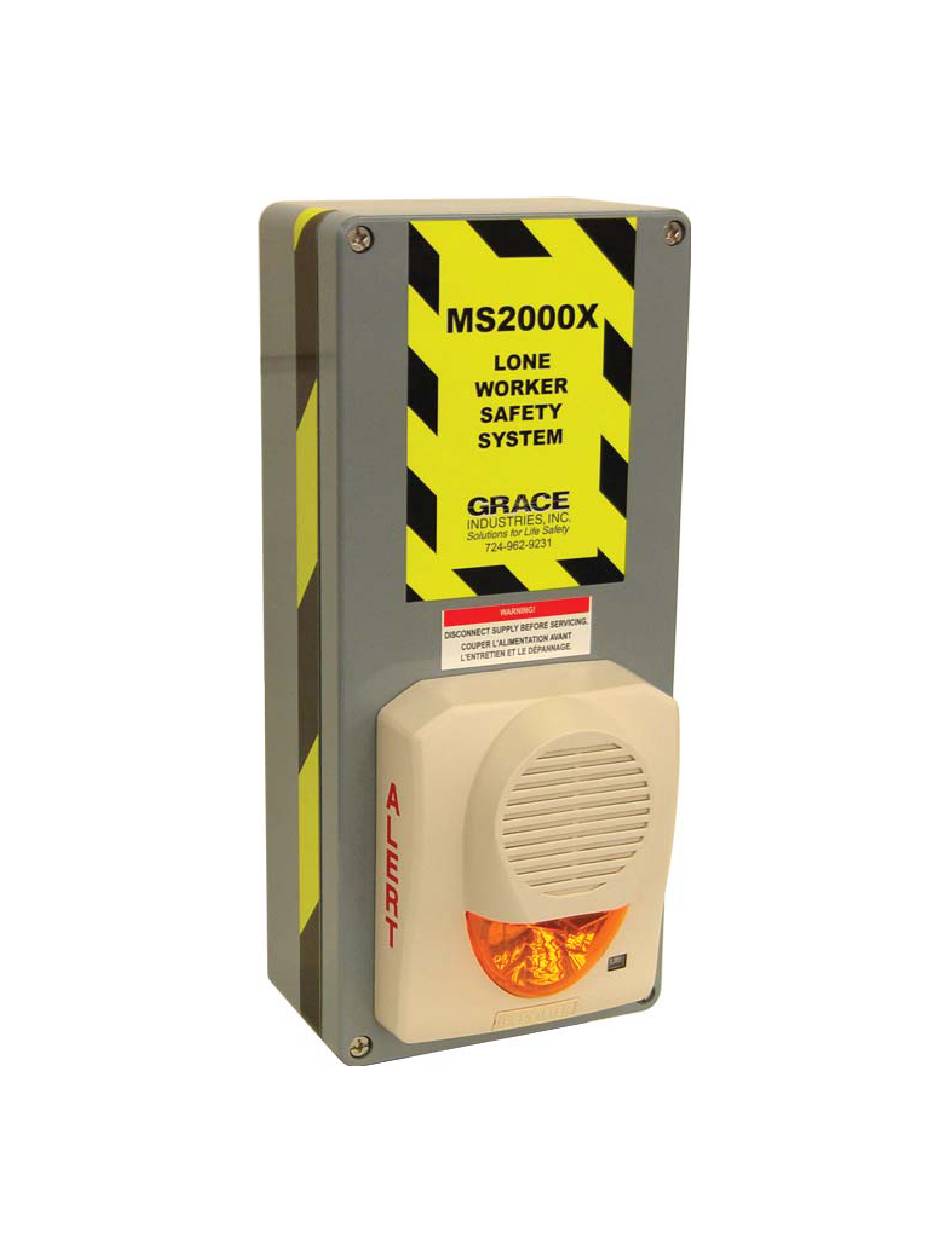

The MS2000X is an Emergency Signaling Monitoring System for Grace's worker safety
®
®
®
products including SuperCELL
, LTX200, and TPASS
, WorkForce
and others. The MS2000X
has several enhanced features including a simple interface to existing security and alarm
systems. The MX2000X contains an optional audible horn and strobe light, activated upon
receiving emergency alarm signals from Grace worker-safety devices.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2000X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Grace Industries MS2000X Series

Summary of Contents for Grace Industries MS2000X Series

  • Page 1: User Information

    MS2000X User Information The MS2000X is an Emergency Signaling Monitoring System for Grace’s worker safety ® ® ® products including SuperCELL , LTX200, and TPASS , WorkForce and others. The MS2000X has several enhanced features including a simple interface to existing security and alarm systems.

  • Page 2: Power Indicator Led

    The MS2000X must be mounted in an area where stranded wire from 14-22AWG. Wire should be there is a clear, unobstructed path to the environ- stripped at a 1/2”. Wires should be inserted by us- ment where the SuperCELL (man-down alarm) or ing a small screwdriver to depress the lever and ®...

  • Page 3: Additional Notes

    Terminal Block Labeling and Confi guration A. Inputs and Power: MS2000X Factory Default Input Setting 1- 15VDC – In Input # Trigger Repeat Time 2- +12VDC – Out Transmit Alarm 6 Seconds 3- GND 4- GND Transmit Global Evac 6 Seconds 5- INPUT#1 Transmit Canned Message (Message#) ** 1 Hour...
  • Page 4 Stobe / Siren Settings ( -LS Option ) Horn Dipswitch Pattern 1 ON and 2 OFF = Non Temporal 1 OFF and 2 OFF = Temporal 1 ON and 2 ON = March Time Tone 3 ON and 4 ON = 2400 Hz 3 ON and 4 OFF = Electromechanical 3 OFF and 4 OFF = Chime 3 OFF and 4 ON = Broadband...

  • Page 5: Option List

    MS2000X AC Powered Micro Receiver System Specifi cations (With Battery Backup) Case: Rugged fi berglass Dimensions: 6-1/2” wide by 15” high by 6-1/2” deep Weight: 10 lb. (with battery backup and light-siren) Power Input Requirement: AC Models: 110/220 VAC, 60 Hz Single Phase 1Amp DC Models: 12-15 VDC ONLY, 0.5 Amp Battery (Option): 12 VDC, 2.9 Amp.

  • Page 6: Optional Equipment

    OPTIONAL EQUIPMENT - PM2040 Mounting Assembly - Pole Mounted with ‘C’ Brackets - Bolts and Bracket Flat Washer Bracket Assembly Bolt Toothed Bracket Washer Clamp Pole Non-Metallic Pole Non-Metallic Bolts and Bracket Assembly Improper Installation May Degrade Performance Page 6 MS2000X-H UI 0318...
  • Page 7 OPTIONAL EQUIPMENT CAUTION: To avoid damaging mating pins, carefully match up connector keyways when attaching phone dialer connector. Inside View of MS2000X Shown with optional 8-Pin Connector OPTIONAL 8-Pin Connector p/n: MS-D OPTIONAL 10 Foot Cable with Connector OPTIONAL PHONE DIALER p/n: MS-CA-10 p/n: ATD MS2000X with phone dialer has 8 pin connector...

  • Page 8: General Warranty Information

    This warranty is valid only when the returned products are accompanied by a sales slip or other proof of purchase that states the date and location of purchase. Grace Industries, Inc. will not repair or replace any merchandise under warranty which has been damaged because of accident, misuse or abuse of the products while in pos- session or control of the consumer.
