Konig & Meyer 19713 Quick Manual

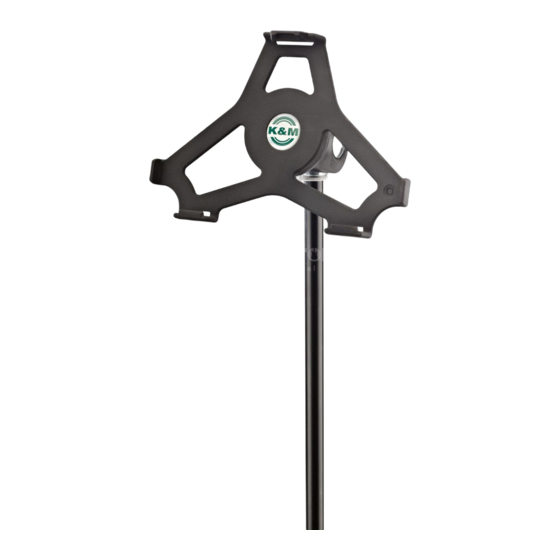

19713 iPad mini stand holder
- Great Appearance! The best way to present your iPad mini.
- The mount securely holds the iPad mini.
- At the same time it is suitable for the stage, home and studio.
- Thanks to the 3/8"(5/8")-thread, it can be mounted to each microphone stand.
- It is easy to clip the iPad mini onto the specially adapted holder.
- It can be set to any position (vertical/horizontal) and format (portrait/landscape).
Thank you for choosing this product. The instructions provide directions
to all of the important set up and handling steps. We recommend you
keep these instructions for future reference.
SAFETY NOTES
- Only use suitable stands: Stability, 3/8"(5/8")-thread;
- preferably K&M microphone stands or microphone holders
- Carefully clip the iPad mini onto the mounting plate and
- ensure that the iPad fit is secure
- Careful handling; especial when changing the
- position/format
- Specially adjusted to the iPad mini
SET UP INSTRUCTIONS

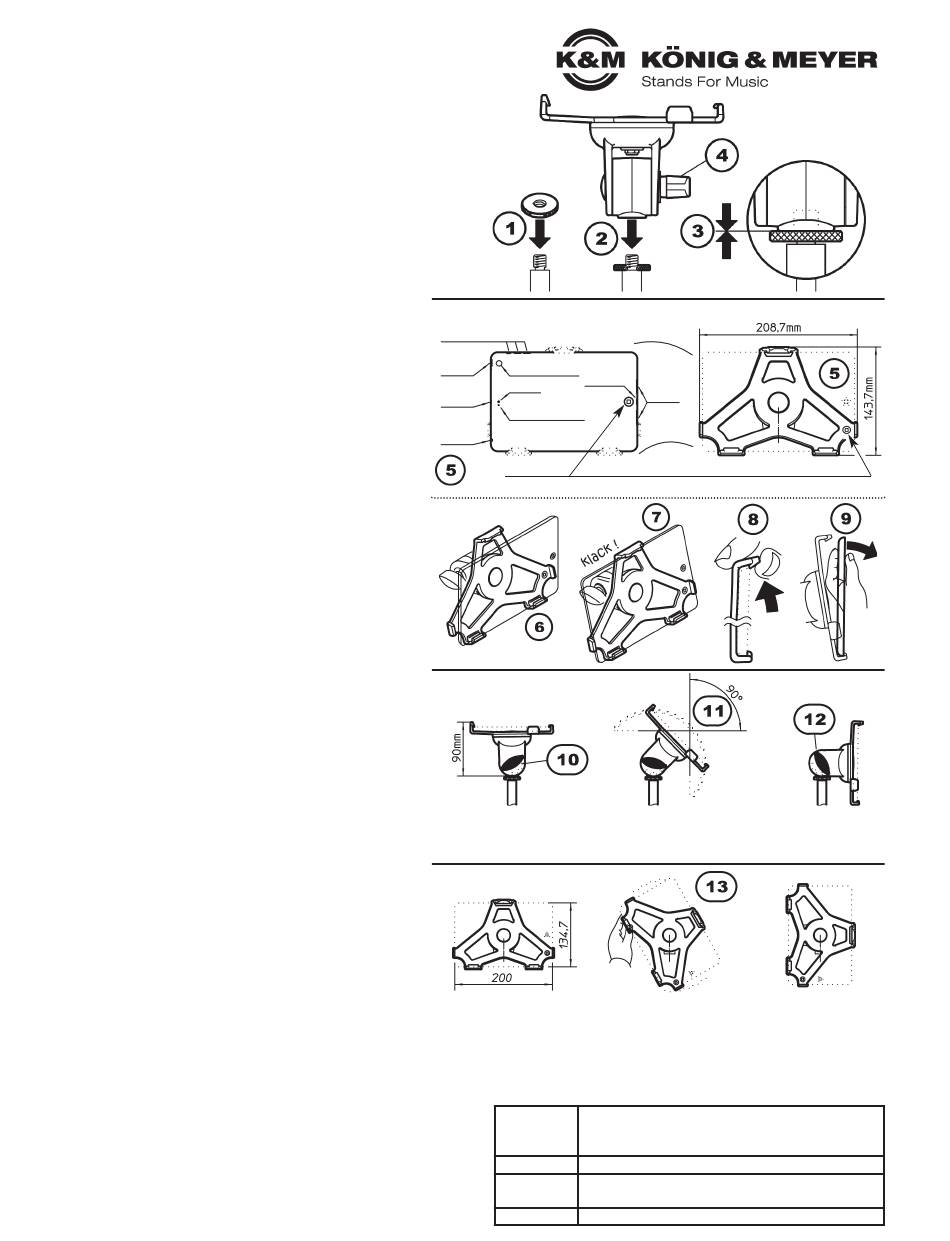

ASSEMBLY
Assembly of the iPad mini holder is simple.
The prerequisite is a suitable stand
(see above SAFETY NOTES).
1 Turn the knurled washer (3/8") until it cannot go any
1 further onto the thread of the stand.
2 This is followed by screwing on the mount
3 Tighten the mount and knurled washer
4 Tighten the wing nut
Placement of the IPAD MINI
5 Place the iPad mini according to the HOME-Button
5 Symbol (is embossed on one side of the holder)
6 First PLACE the iPad mini into the bottom area and then...
7 ...and CLIP it into the top.
The disassembly is carried out in a reversed order.
USAGE NOTES
The iPad mini holder can be adjusted according to the
position and format. The iPad mini does not have to be
removed from the holding plate to make the adjustments.
POSITION
The iPad mini can be placed in any vertical / horizontal
position, the final position can be set. To do this:
10 Hold the iPad mini and loosen the wing nut somewhat
11 Pick the position (vertical / horizontal) and
12 Re-tighten the wing nut.
FORMAT
The holder is equipped with a 90°- rotating function.
This allows the presentation of the iPad mini in the
portrait and landscape positions.
13 Turn the holding plate either in the portrait or landscape
13 position - or it can be tilted.
- Hitches within the mount limit how far the holder can be
- turned.
- In addition, the holding plate clicks into place for both final
- positions, which means, that a the iPad mini will stay in the
- selected position.
FAULT FINDING (F) & REPAIR (R)
F: Holder is unstable
F: R: Check that it is properly screwed into the stand, if
F: R: needed tighten the screws 1-3
F: R: Tighten the wing nuts 4
F: iPad mini is not positioned in the holder properly
F: R: Place the iPad mini into the holder correctly 6 and click
F: R: it into place 7
F: R: If needed, carefully bend the holding plate inwards
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
19713-300-55 Rev.6 / 19712-500-55 Rev.4 03-80-106-00 6/13
ASSEMBLY
PLACEMENT & REMOVAL of the IPAD MINI
Volume Control
On / Off
Camera (Back)
Switch Lightning
connector
Microphone
Microphone
Camera (Front)
3,5 mm
connector
Home-Button
(the holder is embossed with information on where the iPad mini is to be placed)
(false placement results in the embossed user elements being covered up! Please note)
top
CLIP ON
bottom
PLACE
POSITION
Final Position Incline Position:
- horizontal - tilted (0-90°)
- as far as it will go - select any position (Secure position
- by tightening the wing nut)
FORMAT
Final Position Incline Position:
- landscape - tilted
- click into place - does not click into place but it
- does stay in the selected position
TECHNICAL DATA
Swivel Bearing: Polyamid PA-6
Material Holding Plate: PP
Screws, nuts, washers, springs: steel galvanized
Max. load iPad mini
208,7 x 89,6 x 143,7 mm
Dimensions
Box: 235 x 90 x 171 mm
Weight net 0.49 kg, gross 0.67 kg
Speaker
Lift up
the hook
Final Position
- vertical
- as far as it
- will go
Final Position
- portrait
- click into place
Remove
