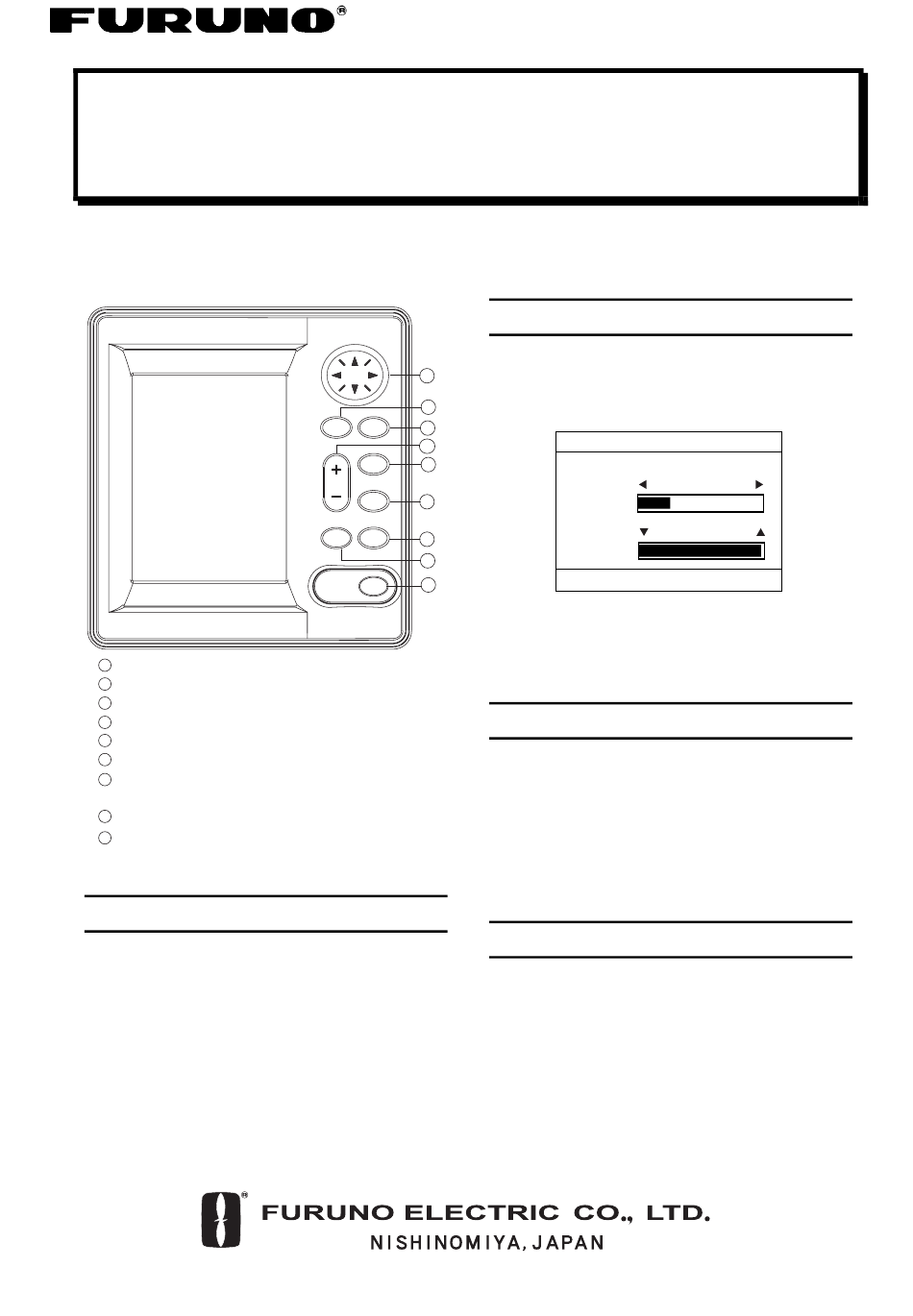

MODEL 1623 MARINE RADAR
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
FURUNO
1 Selects menu items; adjusts VRM, EBL and cursor.
2 Selects display mode.
3 Opens/closes menu; escapes from current operation.
4 Selects basic display range.
5 Adjusts gain.
6 Enables/disables guard alarm.
7 Outputs L/L position to external equipment; registers
selected position as waypoint.
8 Menu short cut.
9 Long press: Turns power on/off.
Momentary press: Adjusts display contrast and brilliance.
Turning the Power On/Off
Turning on the power: Press the
[POWER/BRILL] key more than one second
to turn on the power.
Turning off the power: Press the
[POWER/BRILL] key until the screen goes
blank.
Operator's Guide
1
2
3
MENU
MODE
ESC
4
5
GAIN
RANGE
6
ALARM
7
PROG MARK
8
MARINE RADAR
9
POWER
BRILL
MODEL 1623
Adjusting Tone and Brilliance
1. Press the [POWER/BRILL] key
momentarily to show the
brilliance/contrast adjustment window.
BRILL/CONTRAST
TX/STBY - PRESS [MODE]
LOW
CONT:
LOW
BRILL:
[MENU/ESC] : Exit.
2. Contrast: Press left or right arrow
Brilliance: Press up or down arrow.
3. Press the [MENU/ESC] key to finish.
Transmitting, Standby
1. Press the [POWER/BRILL] key
momentarily to show the
brilliance/contrast adjustment window.
2. Press the [MODE] key to go to standby
and transmit alternately.
3. Press the [MENU/ESC] key to finish.

Choosing the Range

Press the [RANGE+] or [RANGE-] key to
select a range.
HIGH
4
HIGH
9
