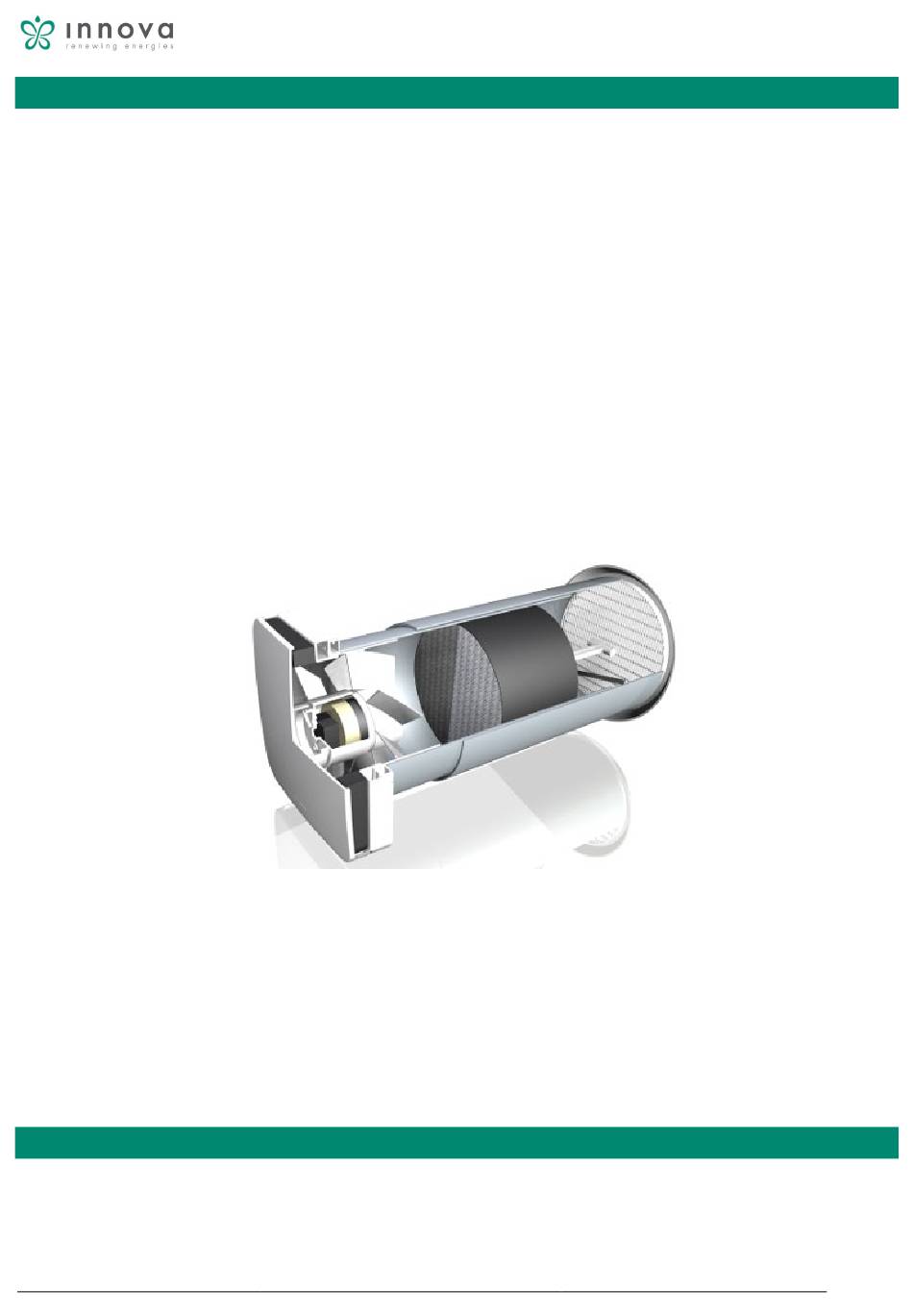

INSTALLATION, USE AND MAINTENANCE
HRC

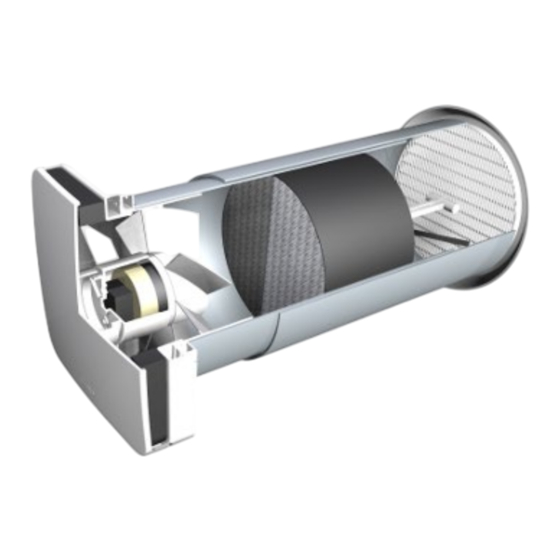

Heat recovery high-efficiency
HEAT RECOVERY HIGH-EFFICIENCY HRC 02- 05 S/E
Innova S.r.l.
Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com
Capitale sociale int. vers. € 150.000. - CF/P.IVA 01827470228 - Iscrizione REA nr.180610 - Num. reg. Imprese (TN) 10656
Numero Meccanografico TN025148
www.innovaenergie.com
Pag. 1
N420227A_ManualeHRC_ Rev06.EN.docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Innova HRC Series

Summary of Contents for Innova HRC Series

  • Page 1 Heat recovery high-efficiency HEAT RECOVERY HIGH-EFFICIENCY HRC 02- 05 S/E Innova S.r.l. Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com Capitale sociale int. vers. € 150.000. - CF/P.IVA 01827470228 - Iscrizione REA nr.180610 - Num. reg. Imprese (TN) 10656 Numero Meccanografico TN025148 www.innovaenergie.com...

  • Page 2: Table Of Contents

    WIRING UNIT '- VERSION S - POWER CONNECTION -VERSION E- WIRELESS REMOTE CONTROL WIRING UNIT '- VERSION - PROCEDURE CONFIGURATION VERSION -E- Pag. GENERALITY' CONFIGURATION UNIT 'MASTER CONFIGURATION UNIT 'SLAVE DECOUPLING UNIT 'SLAVE DECOUPLING UNIT 'MASTER Innova S.r.l. Pag. 2 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 3 Pag. DFM fixing Dima wall GEM exterior aesthetics Grid CVR Cover Finishing KUA output Installation kit at an angle KDP units Preparation kit KIS Isolation Kit units TABLE SYSTEM CONFIGURATION Pag. TABLE SYSTEM CONFIGURATION Innova S.r.l. Pag. 3 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 4: Introduction

    It warns that the indicated operations are important to the safe operation of the machine NLY AUTHORIZED PERSONNEL DANGER It warns that failure to observe the precaution may cause electric shock. ISK OF ELECTRIC SHOCK Innova S.r.l. Pag. 4 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 5: Warnings

    The excision, the deterioration and the illegibility of the nameplate on the unit, involves great problems in the identification of the machine, in the availability of spare parts, and then in all its future maintenance. Innova S.r.l. Pag. 5 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 6: Description Of Operation

    VERSIONS - E- MASTER AND SLAVE VERSIONS ONLY - IS - MASTER'S DEGREE FAN UNIT RECOVERY TELESCOPIC TUBE OUTDOOR GRILL REMOTE ACCESSORIES: KIT OF PREPARATION UNIT ISOLATION KIT KIT OUT CORNER TEMPLATE FOR WALL MOUNTING GRID OUTSIDE BEAUTY Innova S.r.l. Pag. 6 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 7: Requirements For Starting

    Check the power supply and the grounding of the unit. 1:10 REMOVAL AND DISPOSAL Do not disassemble or dispose of the product yourself. The disassembly, demolition, disposal of the product must be performed by authorized personnel in accordance with local regulations. Innova S.r.l. Pag. 7 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 8: Positioning And Assembly Unit

    If instead you use two adiancent walls at an angle, keep up with the minimum distance of the coring 1,2mt from the angle common to the two walls. Fig.1B positioning two units Innova S.r.l. Pag. 8 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 9 Handle the part of the tube with a smaller diameter, bringing it flush with the inner wall. (Fig. 3) Fig.3 Positioning telescopic tube Innova S.r.l. Pag. 9 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 10 Fracture the tax provided for the connections passage (2), in the case of external connections not under trace fracturing the planned areas (3) both on the motor support that on the cover (fig.7). Fig.7 Inserting cables Innova S.r.l. Pag. 10 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 11 -Red wire (+) -Black wire (-) The command unit may be placed on the 503 box or wall and has a fastening screw below for access to internal parts. Operating Voltage Connection and power supply Innova S.r.l. Pag. 11 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 12 - VERSION E- The HRC version E Unit provides the power direct 230/1/50; on top of the unit there is an electronic card with two terminals for connecting L and N. Operating Voltage Connection Innova S.r.l. Pag. 12 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 13: Wireless Remote Control

    There will be a master device with the remote control supplied and more slave units (up to 16) that will be controlled through the network generated by the master unit. CONNECTIONS BY THE CUSTOMER L - N from 230/1/50 Mains Innova S.r.l. Pag. 13 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 14 The remote control will start flashing and will connect the master unit. The master unit will respond with short rotation of the fan. ↕ Max 5 cm. Unit Configuration Master Innova S.r.l. Pag. 14 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 15 Login Slave configuration procedure Bring the remote close to the first slave who needs to be configured. The slave unit will respond with a short rotation of the fan. ↕ Max 5 cm. unit Slave Configuration Innova S.r.l. Pag. 15 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 16 Max 5 cm. as in column B, until the fan starts to rotate. The LED will blink at this point as indicated in Column B. Column A Column B Selecting parallel operation to the master Innova S.r.l. Pag. 16 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 17 Procedure for all slaves Exit configuration procedure of the slave by pressing the ON OFF button. The info LEDs will flash not 'more' quickly signaling the exit from the slaves configuration mode. Output Slave configuration procedure Innova S.r.l. Pag. 17 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 18 After a few seconds the remote control will show a sequence of LEDs as shown in the central figure. The LEDs indicate the decoupling mode enabled. Long press the SLEEP button to decouple all slaves from the system. decoupling procedure Master Innova S.r.l. Pag. 18 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 19 If, however, the temperature difference is close to zero, the cycle should last as much as possible. Innova S.r.l. Pag. 19 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 20 DT piu 'thin line; The following four reference values. POSITION Grip Position 1 Knob Position 2 Position Knob 3 Knob Position 4 CYCLE TIME 130s 220s DELTATI 20th 10th 0 ° / 2 ° Innova S.r.l. Pag. 20 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 21 Max speed Low speed speed Med Operation Speed Operation Speed 'car with: sensors 'Night -Temperature -Humidity -Light Viewing the main mask keys Innova S.r.l. Pag. 21 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 22 Press the info button and wait for the remote control illuminate the LEDs relative to the states: The remote control will display after a few seconds and for a few seconds: -How 'set -Speed set -Functions sensors and night if active Innova S.r.l. Pag. 22 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 23 The duration of the recovery cycle is determined in Auto outcome of the "Extra-cycle" procedure and it can vary between 30 and 200 seconds, which will be Operation Extraciclo recovery and regenerative modulating shared equally between the extraction phase and the placing. Innova S.r.l. Pag. 23 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 24 Now it will be possible to set: -the level of humidity for dehumidification function -l'attivazione or deactivation of the light function Login procedure parameter configuration Innova S.r.l. Pag. 24 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 25 Led Night Off = function off Press the AUTO button when held up in that the central LED does not blink fast for exit the configuration parameters if there are no selections. Activating light sensor and output configuration parameters Innova S.r.l. Pag. 25 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 26 -take clean very gently using a vacuum cleaner or a compressor; -list again within the heat exchanger; -reinstallare through the motor support and the screws used to fix the unit cover exchanger for extracting Vista Innova S.r.l. Pag. 26 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 27: General Cleaning Unit

    The remote control signal through the flashes shown by side, the battery needs to be replaced; Replace both batteries in the remote control with two new batteries. It's obligatory to dispose of batteries at special dedicated containers; Innova S.r.l. Pag. 27 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 28 Replacing remote control batteries Innova S.r.l. Pag. 28 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 29 The fan runs with -Units command fails -Verify or replace the control unit unexpected times The remote control does -Empty batteries or remote control failure -Check or replace batteries not work Innova S.r.l. Pag. 29 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 30: Dfm Fixing Dima Wall

    Overlap the part of the aesthetic finish of the exterior aesthetics grid. Make sure the centering of the hole of the grid, relative to the tube in order to avoid load losses and air obstructions. exterior aesthetics GEM Grid Innova S.r.l. Pag. 30 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 31 And an internal cap made of expanded polystyrene to prevent the leakage of air and have the insulation heat up to the moment of installation of the product. KDP - Kit specifying unit Innova S.r.l. Pag. 31 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 32 The isolation and 'consists of a double-shell coated insulating material. With the insulation kit the diameter of the hole for installing the product becomes: HRC05S - 200mm HRC02S - 160mm KUA - Isolation Kit Innova S.r.l. Pag. 32 N420227A_ManualeHRC_ Rev06.EN.docx...

  • Page 33: Table System Configuration

    During the installation it is recommended to fill in the summary table of the plant in order to keep track of the settings made, in order to facilitate any maintenance interventions. ARAMETER ETTINGS OCAL NVIRONMENT Direction of rotation Cycle in Ans MASTER SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE SLAVE Innova S.r.l. Pag. 33 N420227A_ManualeHRC_ Rev06.EN.docx...
  • Page 34 11 20 16 Re v. 06 Technical Assistance Center The data contained in this catalog may be changed by the manufacturer without notice Innova S.r.l. Pag. 34 N420227A_ManualeHRC_ Rev06.EN.docx...
