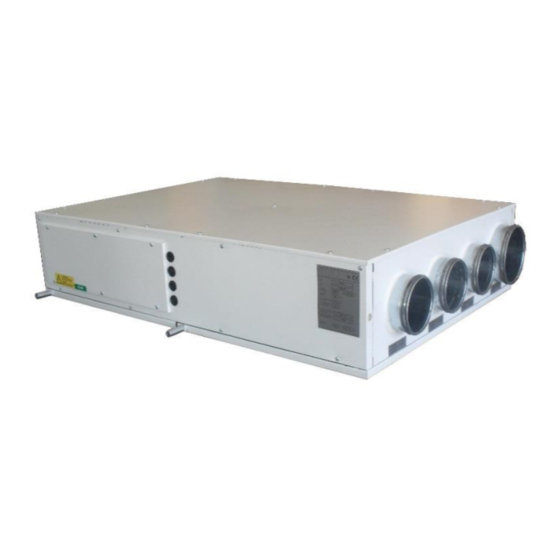

Innova HRW DOMO Installation, Use And Maintenance Manual

Innova HRW DOMO Installation, Use And Maintenance Manual

Heat recovery high-efficiency with integrated air treatment

Advertisement

Quick Links

HRW DOMO
Heat recovery high-efficiency
with integrated air treatment
HEAT RECOVERY HIGH-EFFICIENCY WITH INTEGRATED AIR
Innova S.r.l.
Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com
Capitale sociale int. vers. € 150.000. - CF/P.IVA 01827470228 - Iscrizione REA nr.180610 - Num. reg. Imprese (TN) 10656
Numero Meccanografico TN025148
www.innovaenergie.com
INSTALLATION, USE AND MAINTENANCE
TREATMENT
Pag. 1
N420229A_ManualHRW_rev2.en.docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRW DOMO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Innova HRW DOMO

  • Page 1 INSTALLATION, USE AND MAINTENANCE HRW DOMO Heat recovery high-efficiency with integrated air treatment HEAT RECOVERY HIGH-EFFICIENCY WITH INTEGRATED AIR TREATMENT Innova S.r.l. Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com Capitale sociale int.
  • Page 2: Table Of Contents

    AREAULICI CONNECTIONS ................................13 3.1.1 GUIDELINES AREAULICI ............................13 CONNECTIONS hydraulic ................................. 14 4.1.1 GENERALITY ..............................14 4.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS ......................16 4.1.3 2-3 way valve connection ..............................17 ELECTRICAL CONNECTIONS ................................18 Innova S.r.l. Pag. 2 N420229A_ManualHRW_rev2.en.docx...
  • Page 3 PROBLEMS WITHOUT ERROR INDICATION ON DISPLAY ....................31 8.1.3 TABLE ALARMS REPORTED TO DISPLAY - VERSION I - ....................... 32 8.1.4 SIGNALING AND DIAGNOSIS MICROPROCESSOR ......................32 NOTES AND INFORMATION SERVICE .............................. 33 NOTE ....................................... 33 Innova S.r.l. Pag. 3 N420229A_ManualHRW_rev2.en.docx...
  • Page 4: Generality

    It is forbidden to disperse and leave within reach of children of the' packing material as it can be potentially dangerous. • Observe the safety distances between the machine and other equipment or structures to ensure a sufficient drive access space for maintenance and service operations as described in this booklet. Innova S.r.l. Pag. 4 N420229A_ManualHRW_rev2.en.docx...
  • Page 5: Symbology

    In the case of all 'inside the unit water spills, place the main switch of' plant to "Off", turn off the taps dell ' water and contact technical service Innova S.r.l. Pag. 5 N420229A_ManualHRW_rev2.en.docx...
  • Page 6: Conformity

    The CE marking (present on every machine) attesting conformity with the following European standards: • machinery Directive 2006/42 / EC • 2014/68 / EC • Low Voltage Directive 2014/35 / EC • Electromagnetic Compatibility Directive 2014/30 / EC • Ecodesign 2009/125 / EC Innova S.r.l. Pag. 6 N420229A_ManualHRW_rev2.en.docx...
  • Page 7: Range

    The excision, the deterioration and the illegibility of the nameplate on the unit, involves great problems in the identification of the machine, in the availability of spare parts, and then in all its future maintenance. Innova S.r.l. Pag. 7 N420229A_ManualHRW_rev2.en.docx...
  • Page 8: Construction Features

    Wide interface graphics in White is black or touch to colors with menu of configuration is menu user Multilingual. Provision for communication MODBUS RTU RS 485 with the more many systems of home automation. Innova S.r.l. Pag. 8 N420229A_ManualHRW_rev2.en.docx...
  • Page 9: Main Components Of The Unity

    The unit may be stored in a local protected against weathering at temperatures not lower than 0 ° C, up to a maximum of 40 ° C. Innova S.r.l. Pag. 9...
  • Page 10: Reception Control And Handling

    1.1.12 REMOVAL AND DISPOSAL Do not disassemble or dispose of the product yourself. The disassembly, demolition, disposal of the product must be performed by authorized personnel in accordance with local regulations. Innova S.r.l. Pag. 10 N420229A_ManualHRW_rev2.en.docx...
  • Page 11: Installation

    / wall / floor where the unit will be installed must be adapted to the weight of the unit and does not cause vibrations. In the environment chosen for the installation must be present: -Connections of the air ducts; -Connection to 230V single phase electric -Connection to drain condensate hydraulic connection Innova S.r.l. Pag. 11 N420229A_ManualHRW_rev2.en.docx...
  • Page 12: Positioning Unit

    (from the bottom). Not mount the unit with the hips in direct contact with the walls to avoid possible noises from contact, insert, or neoprene rubber strips in such a case. Floor mounting Innova S.r.l. Pag. 12 N420229A_ManualHRW_rev2.en.docx...
  • Page 13: Drain Connection

    For the correct connection of the air ducts, refer to the following diagram and the places adhesives unit. Table diameters links Aerodynamic units Size 30/15 50/25 60/15 90/25 Ø mm Recirculation Ø Air flawed mm Ø external mm Air Expulsion mm Ø Innova S.r.l. Pag. 13 N420229A_ManualHRW_rev2.en.docx...
  • Page 14: Connections Hydraulic

    -First to perform the filling of the pipes, make sure that the same do not contain foreign materials such as sand, stones, flakes rust, welding spatter, slag, etc. Otherwise carry out a washing of the hydraulic circuit by-passing the unit. -Avoid absolutely cavitation of the pump and the consequent presence of air in the hydraulic circuit. Innova S.r.l. Pag. 14 N420229A_ManualHRW_rev2.en.docx...
  • Page 15 <2 mg / l Manganese <1 mg / l Nitrate <70 mg / l Sulphate <70 mg / l Chlorine Compounds <300 mg / l Carbon dioxide free radical <10 mg / l Ammonium <20 mg / l Innova S.r.l. Pag. 15 N420229A_ManualHRW_rev2.en.docx...
  • Page 16: Positioning And Procedures Of Connections

    Be careful not to rotate or twist the pipes from inside the unit; By rotating the pipes during the connection, it may damage the connections inside the unit and have losses of water in operation; Innova S.r.l. Pag. 16 N420229A_ManualHRW_rev2.en.docx...
  • Page 17: 2-3 Way Valve Connection

    4.1.3 2-3 WAY VALVE CONNECTION The connections of the valves to 2/3 Optional are to be made as indicated; Attention to comply with the instructions placed on the valve: Innova S.r.l. Pag. 17 N420229A_ManualHRW_rev2.en.docx...
  • Page 18: Electrical Connections

    50/25 Supply V / Ph / Hz 230/1/50 Current consumption max 5.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS The entry of electrical cables is positioned on the side of the drive; DN20mm two steps are prepared; Innova S.r.l. Pag. 18 N420229A_ManualHRW_rev2.en.docx...
  • Page 19 Innova S.r.l. Pag. 19 N420229A_ManualHRW_rev2.en.docx...
  • Page 20: Wiring Unit

    N - CL - CP Water valve / battery post Contact voltage (220v) REMOTE DISPLAY Remote control (4-wire) ON OFF remote contact present on the remote ON OFF REMOTE (ON DISPLAY) Contact closed / unit OFF display Innova S.r.l. Pag. 20 N420229A_ManualHRW_rev2.en.docx...
  • Page 21 24 (VNR) - 25 (+) - 26 (-) RS485 NETWORK Network Connection RS485 Bus 27 (-) - 28 (+) LAN NETWORK Bus Lan Networking 29 (-) - 30 (+) 24VAC OUTPUT Eating outside 24Vac 31 (24v) - 32 (0V) Innova S.r.l. Pag. 21 N420229A_ManualHRW_rev2.en.docx...
  • Page 22: Electrical Connections The Version

    502; For the connection use Shielded cable / braided from 0.75 / 1mm to 4 conductors; CNV Remote Panel Innova S.r.l. Pag. 22 N420229A_ManualHRW_rev2.en.docx...
  • Page 23 -Perform a path so as to minimize the length of the leads; -terminare the line with a resistance of 120 Ω in each room; - do not allow connections to "star"; - the connection with the RS485 cable is polarized, Innova S.r.l. Pag. 23 N420229A_ManualHRW_rev2.en.docx...
  • Page 24 The connection is made on terminals GRID as indicated on the circuit diagram Connecting Regulator Air Quality NB: Interpose a relay to 230v between the output the regulator and the input unit. Innova S.r.l. Pag. 24 N420229A_ManualHRW_rev2.en.docx...
  • Page 25 Connection Valve Water / battery post LINK GENERATOR / POST OF BATTERY The unit provides the command of a generator or a battery post, through the clean contact terminal; Contact closed with active request; Link generator / battery post Innova S.r.l. Pag. 25 N420229A_ManualHRW_rev2.en.docx...
  • Page 26: Commissioning And Method For Use

    ALARM signal sensor Viewing the main mask keys 6.1.1.1 TURNING ON THE UNIT POWER OFF -The unit can be enabled and disabled through the On / Off button on the display. Power On / Off Unit Innova S.r.l. Pag. 26 N420229A_ManualHRW_rev2.en.docx...
  • Page 27 All adjustments are inhibited to the user and at the pressure of any key appears bL. By repeating the sequence is obtained by unlocking the buttons. key Lock Innova S.r.l. Pag. 27 N420229A_ManualHRW_rev2.en.docx...
  • Page 28 With Ignition is off hold down the + button for 5 seconds until the written 01. With the button - set the value to 00 and wait 20 seconds to verify the correct setting. Dimming Innova S.r.l. Pag. 28 N420229A_ManualHRW_rev2.en.docx...
  • Page 29: Maintenance

    Warning! Never touch the exchanger fins, the heat exchanger handle holding only on the sides closed. exchanger for extracting Vista Innova S.r.l. Pag. 29 N420229A_ManualHRW_rev2.en.docx...
  • Page 30: General Cleaning Unit

    For cleaning, it is possible to use a vacuum cleaner, a rag moistened with water, a soft-bristled brush or a low-pressure compressor. Warning! On the blades are small metal clip for balancing the blades, DO NOT remove them. Views units for general cleaning Innova S.r.l. Pag. 30 N420229A_ManualHRW_rev2.en.docx...
  • Page 31: Alarms

    Condensate drain clogged Clean the condensate drain The condensate does not flow from the Verify that the unit is perfectly flat exhaust pipe into the collection tray Check that the condensate drain connections are clogged Innova S.r.l. Pag. 31 N420229A_ManualHRW_rev2.en.docx...
  • Page 32: Signaling And Diagnosis Microprocessor

    After loading the operating system of the PLC with the adjustment, and LED 1 starts blinking. CODE MEANING DESCRIPTION -POWER ON Green -Led fixed with the presence of voltage -POWER ON -Ignition Fixed yellow led for about 1-2 minutes -Operation normal -Operation with yellow flashing LED Innova S.r.l. Pag. 32 N420229A_ManualHRW_rev2.en.docx...
  • Page 33: Notes And Information Service
