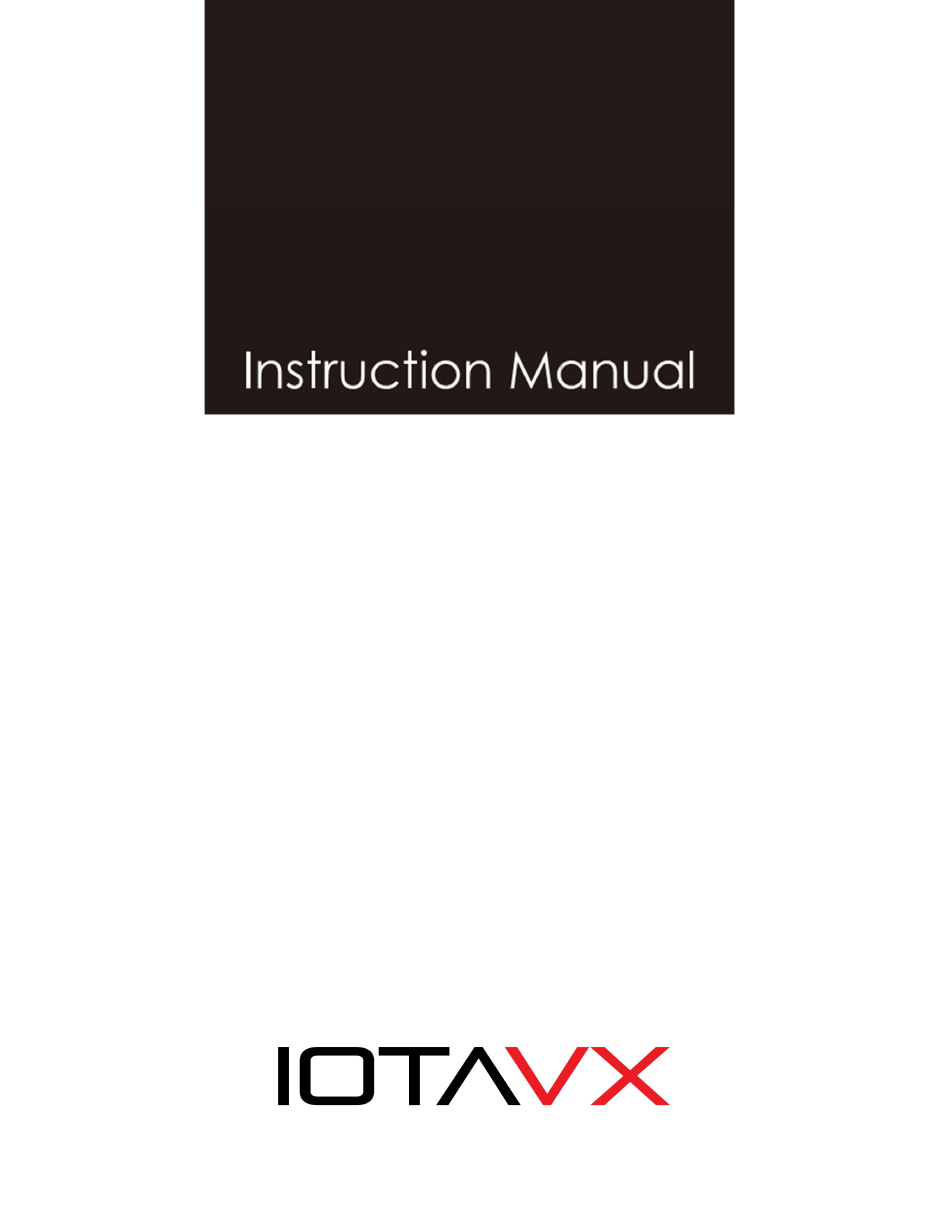

- Page 1 Multichannel Amplifier AVXP1 AVXP1 Owner Manual...
- Page 2 Do not install the unit in an unventilated rack, or directly above heat-producing equipment such as power amplifiers. Observe the maximum ambient operating temperature listed in the product specifications. Never attach audio power amplifier outputs directly to any of the unit’s connectors. AVXP1 Owner Manual...
- Page 3 Consult the dealer or an experienced radio/television technician for help. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects containing liquid, such as vases, on this apparatus. AVXP1 Owner Manual...
-
Page 4: Table Of Contents
Table of Contents About the AVXP1 Highlights Product Description Front Panel Back Panel Installation Speaker Connections Speaker Room-setting Reference Amplifier Control: trigger input Dimmer Link Basic operation Specifications Audio Other Troubleshooting AVXP1 Owner Manual... -
Page 5: About The Avxp1
AVXP1 is a high-quality high-power multichannel amplifier that offers 7 channels of Class AB amplification with enough power headroom to fill your most demanding home theatre installation with its 150Wrms power per channel (8-ohm load). The AVXP1 is the perfect partner of the AV1 or AVX1 Audio Video Processor. -
Page 6: Back Panel
Back Panel TRIGGER INPUT PORT This input gets a 12V signal from a connected device such as AV1 or AVX1 to power ON AVXP1. 7 CH OUT (multichannel) SPEAKER OUTPUT Front L/R, Centre C, Surround L/R, Back Surround L/R. All these multi-channel, audio output ports connect the speakers to the system. -
Page 7: Installation
Installation Speaker Connections Connect to multi-channel processor The AVXP1 provides 2 methods for connecting to AV1 or AVX1 or other Audio Video Processor. Choose one of the following: a) Unbalanced connecting (refer to zone 5 of back panel picture) b) Balanced connecting (refer to zone 3 of back panel picture) Connect the speakers to the amplifier Unplug the power cable before connecting. - Page 8 They should generally be placed behind the listener at 40 ~ 100cm above the ears. They are shared with Front Height Left/ Right Speaker when this mode is selected on AV1 or AVX1. AVXP1 Owner Manual...
-
Page 9: Amplifier Control: Trigger Input
Amplifier Control: trigger input The AVXP1 is provided with a trigger input made of a jack 3.5mm connector (zone 1 on the back panel). This input should be connected via the dedicated cable included in the AV1 or AVX1 box to the partnered AV1 or AVX1 multi-channel Audio Video Processor or to another unit trigger output. -
Page 10: Specifications
Standby Power: < 0,5W Packing size: 615mm× 578mm×328mm Actual Size: 431mm x 480mm x 198mm N.W.: 30.3 kg/66.79 lbs. G.W.: 35 kg/77.16 lbs. Due to continuous product development, specifications may be subject to change without prior notification. AVXP1 Owner Manual... -
Page 11: Troubleshooting
Troubleshooting Problem: No power; indicator light on the front panel of the AVXP1 is not lit. Verify that your power source is operating correctly. Verify that the power switch on the rear panel of the machine is turned ON. - Page 12 Should you experience any technical difficulty in setting up or using your new product please feel free to contact our dedicated customer service help desk Tech Support Number: +44 (0) 1642 232188 Tech Support E-Mail Address: help@iotaenterprises.co.uk IOTAVX Wishing you many years of pure audio visual pleasure with your new equipment AVXP1 Owner Manual...
