Summary of Contents for Ikelite 75342
-
Page 1: Product Registration

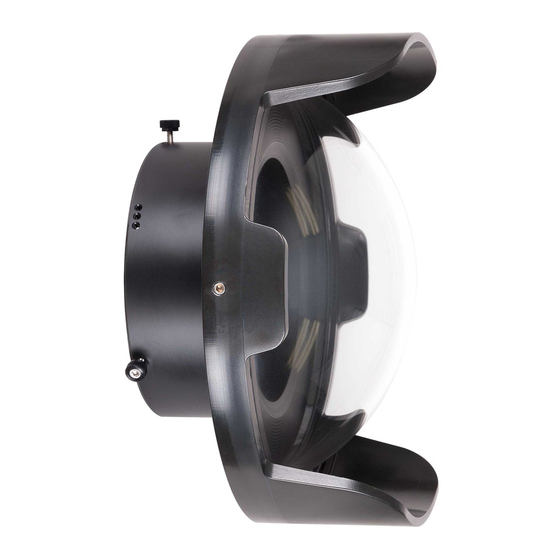

DL 8” Dome Port with Extended Base Product Number 75342 Product Registration Please register your product at ikelite.com within 15 days of purchase. Our product registration database is the best way for us to contact you in the event of a product update. -
Page 2: About This Product
About this Product Thank you for your purchase of Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product. Please visit ikelite.com to register your product to receive information on any updates, notices, or recalls pertaining to your equipment. -
Page 3: Important Notices
Important Notices Do not use alcohol, cleaning agents, spray lubricants, Rain-X, » or other solvents on the housing or lens port. Use of an incompatible chemical compound can damage the plastic or component o-rings, which may result in leaking. We recommend detaching the port from the housing and any »... -
Page 4: Table Of Contents
Contents Product Registration About this Product Included in the Box Specifications Important Notices Getting to Know Your Dome Port Attaching Your Dome Port and Shade Attaching the Port to a Housing Attaching the Port to an Extension Final Check Maintenance Post-Dive Travel and Storage Scratches... -
Page 5: Getting To Know Your Dome Port
Getting to Know Your Dome Port Shade Set Screw Dome Shade Thumbscrew Base Plate Dome O-ring Sealing Surface Drain Holes... -
Page 6: Attaching Your Dome Port And Shade
Slowly tighten the set screws so they just make contact in the recessed areas and are snug against the port. NOTE: Use 1/8” hex key (supplied with Ikelite Housing) to tighten or loosen Dome Shade Set Screws. Thumbscrew... -
Page 7: Attaching The Port To An Extension
3. Make sure the dome port sealing surface is clean and free of debris. 4. Clean and lightly lubricate the o-ring. The o-ring needs to be lubricated evenly until it is slightly shiny. Avoid dry spots or uneven build-up of lubricant. 5. -
Page 8: Final Check
4. Line up the thumbscrews on the dome port and extension. Firmly press components together until they are flush around the circumference. 5. Tighten each thumbscrew until it stops. DO NOT over-tighten. 6. Attach the complete dome port with extension to your housing, Page 6. -
Page 9: Maintenance
Often scratches will fill in with water and become invisible in the resulting image. Scratches are most likely to show up in your image when shooting towards the sun or a light source. Light scratches may be buffed out using NOVUS plastic polish, available through Ikelite in single-use packets or bottles. -
Page 10: Spare Parts
If scratches are too deep to polish out, the dome port can be returned to Ikelite for replacement of the acrylic dome. Spare Parts • O-ring # 0132.45 • Securing thumbscrews (set of 3) # 9249.7 • 7/64” hex key # 0945.17 •... -
Page 11: Limited Warranty
Except as mentioned above, no other warranty expressed or implied applies to this Ikelite product. Service and Repairs Ikelite is most interested in performing any service to ensure that all products perform as intended. Evidence of purchase date must be provided to obtain warranty service. -
Page 12: Contact Us
If you have any questions about your product or need advice on getting the images you want, please get in touch with us and we’ll do everything we can to help you capture your unique perspective. Ikelite Underwater Systems 50 W. 33rd St. Indianapolis, IN 46208 USA (317) 923-4523 ikelite@ikelite.com...
