LUXO - E2H QUICK REFERENCE

4x0,5 mm²

3x1,5 mm² (max 10 m)

2x1,5 mm²

RG58 (max 10 m)

4x0,5 mm²

IP2019

rev. 2012-09-26

Table of Contents

Need help?

Do you have a question about the Ditec LUXO E2H and is the answer not in the manual?

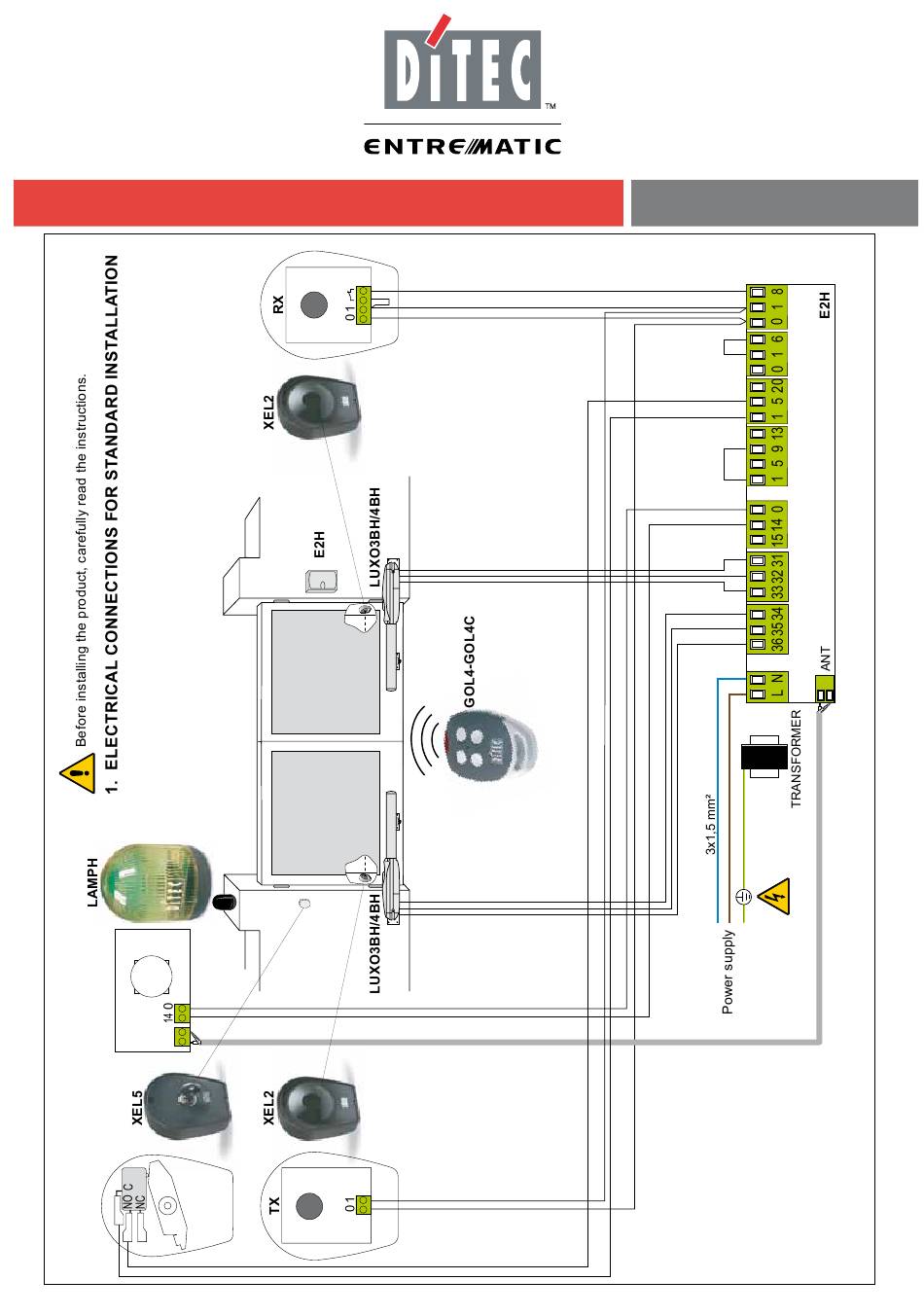

Page 1 IP2019 LUXO - E2H QUICK REFERENCE rev. 2012-09-26 4x0,5 mm² 3x1,5 mm² (max 10 m) 3x1,5 mm² (max 10 m) 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
Page 2 2. LIMIT SWITCHES CONNECTION (OPTIONAL) Regolazione finecorsa di apertura Opening limit switch adjustment 33/36 32/35 31/34 Motor 24V= Regolazione finecorsa di chiusura Closing limit switch adjustment 3. LUXO MOTORS CONNECTION 36 35 33 32 MOTOR 2 MOTOR 1 MOTOR 2 MOTOR 1 24V= 24V=...
Page 3 4.1 USAGE WITHOUT LIMIT SWITCHES CLOSING MECHANICAL STOP OPENING CYCLE MOTOR 2 MOTOR 1 OPENING OPENING MECHANICAL STOP MECHANICAL STOP CLOSING MECHANICAL STOP CLOSING CYCLE MOTOR 1 MOTOR 2 OPENING OPENING Slow down MECHANICAL STOP MECHANICAL STOP speed 4.2. USAGE WITH STOP LIMIT SWITCHES (OPTIONAL) - DEFAULT SETTING OPENING CYCLE MOTOR 2 MOTOR 1...
Page 4 5. LUXO SETTING LUXO MEMORY CARD M1LX ENTER DOWN 36 35 34 33 32 31 15 14 0 1 5 9 13 1 5 20 0 1 6 0 1 8 FIRST TIME ONLY WHEN POWER ON RADIO ENABLING 7.1 STEP BY STEP MODE WITHOUT AUTOMATIC CLOSING SETTING 7.2 STEP BY STEP MODE WITH AUTOMATIC CLOSING SETTING (DEFAULT: 1 minute) 7.3 OPENING MODE WITH AUTOMATIC CLOSING SETTING...
