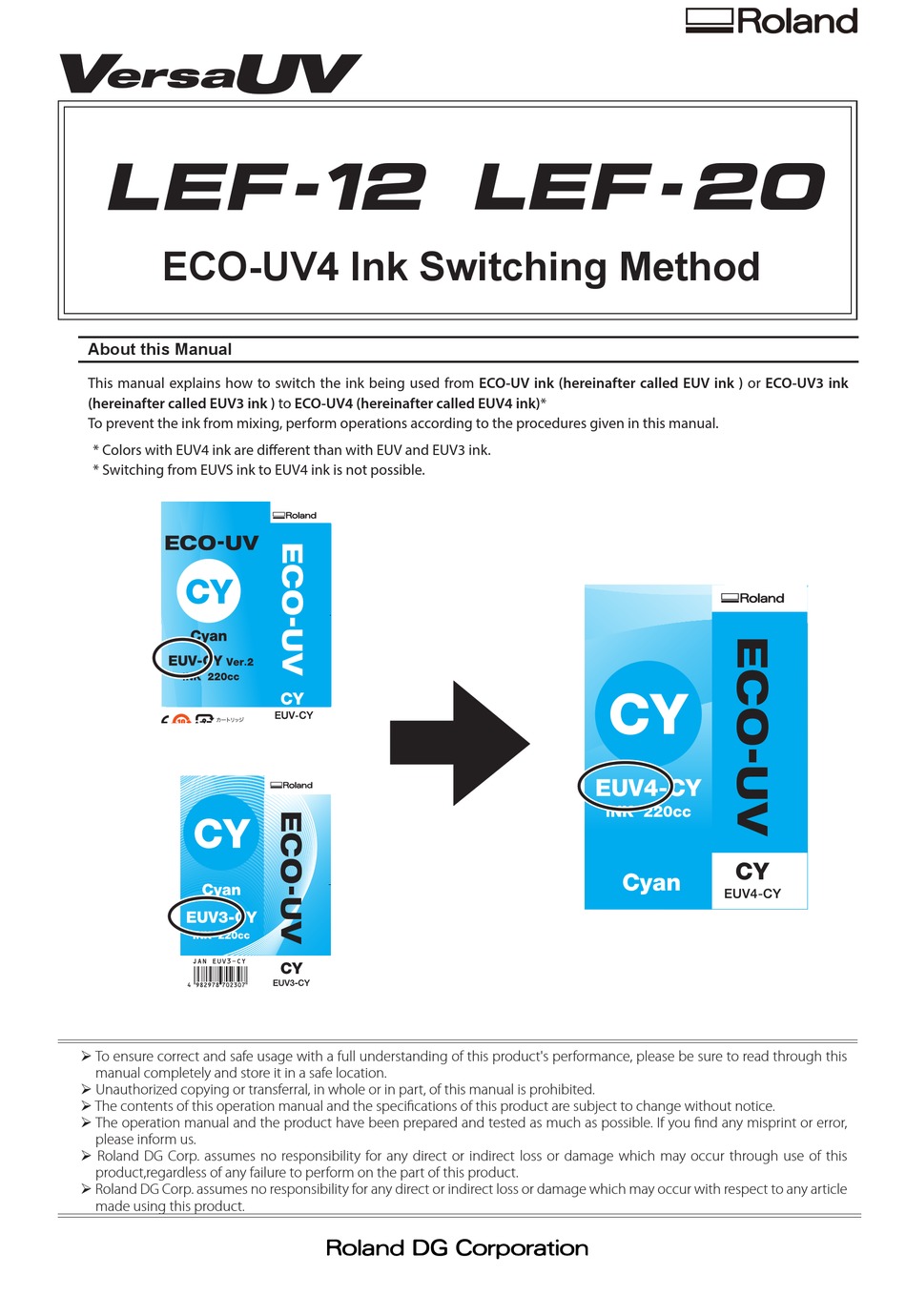

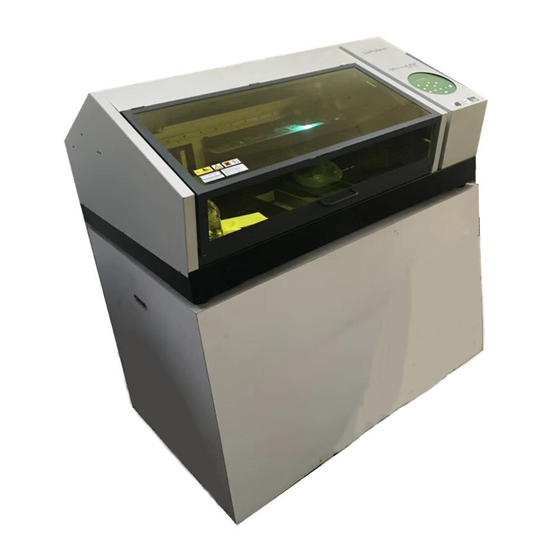

ECO-UV4 Ink Switching Method
About this Manual
This manual explains how to switch the ink being used from ECO-UV ink (hereinafter called EUV ink ) or ECO-UV3 ink
(hereinafter called EUV3 ink ) to ECO-UV4 (hereinafter called EUV4 ink)*
To prevent the ink from mixing, perform operations according to the procedures given in this manual.
* Colors with EUV4 ink are different than with EUV and EUV3 ink.
* Switching from EUVS ink to EUV4 ink is not possible.
To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this
manual completely and store it in a safe location.
Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
The contents of this operation manual and the specifications of this product are subject to change without notice.
The operation manual and the product have been prepared and tested as much as possible. If you find any misprint or error,
please inform us.
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this
product,regardless of any failure to perform on the part of this product.
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article
made using this product.
Advertisement
Table of Contents
Related Manuals for Roland Versa UV LEF-12
Summary of Contents for Roland Versa UV LEF-12
- Page 1 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product,regardless of any failure to perform on the part of this product. Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article made using this product.
-
Page 2: Table Of Contents
When the Message "CANCELED FOR MOTOR PROTECTION" Is Displayed .............13 When the Cleaning Operation Is Interrupted ........................13 In this operation manual, excluding the case where "Roland VersaWorks" is shown on the computer screen, "Roland VersaWorks" is written as "VersaWorks."... -
Page 3: Introduction
Introduction Overall Flow Preparation before Operations STEP 1 Verifying Items to Be Used(P. 4 ) STEP 2 Checking the Necessary Files(P. 4 ) STEP 3 Writing a Memo with the VersaWorks Settings(P. 4 ) Switching the Ink STEP 1 Updating the Printer Unit Firmware(P. 5 ) Update the firmware of the printer unit to a version that supports EUV4 (Required time: Approx. -
Page 4: Preparation Before Operations
The firmware and updater downloaded from http://www.rolanddg.com/euv4/ are necessary for the operations in this manual. Check that the following files are present. Firmware VersaWorks updater (in the "Firmware" folder) (in the "Roland VersaWorks local updater" folder) LEF-12 LEF12Firm230.exe LocalUpdater.exe (Ver. 5.4.0 or later) LEF-20 LEF20Firm200.exe... -
Page 5: Switching The Ink
Switching the Ink STEP 1 : Updating the Printer Unit Firmware Use the file that you have downloaded to update the firmware of the printer unit to a version that supports EUV4 ink. For the update method, refer to "readme.pdf," the file that you downloaded at the same time as the firmware. STEP 2 : Switching the Ink Display the [CHANGE INK] menu. -
Page 6: Step 3 : Cleaning Of The Periphery Of The Print Heads (Manual Cleaning)
Never use any implement other than the included cleaning stick. Cotton swabs or other lint producing items may damage the heads. If you use up the cleaning stick, purchase a new one from your authorized Roland DG Corp. dealer. - Page 7 Switching the Ink Prepare for manual cleaning. If a warning beep sounds If the operations are not completed within 10 minutes, a warning beep will sound to warn you of the print heads drying out. If the warning beep is heard, temporarily halt the work, close the front cover, and press .This temporarily interrupts the operations.
- Page 8 Switching the Ink Clean in the sequence shown in the figure below. Be especially careful to clean away any fibrous dust (lint). While cleaning, be careful not to touch the head surfaces (nozzle surface) directly with the stick. Gently stroke the sponge. Never rub forcefully.
-
Page 9: Step 4 : Updating Versaworks
When only a printer that has been switched to EUV4 ink is connected to VersaWorks Initialize VersaWorks. Windows VISTA / 7 Click [Start]( )menu. Click [All Programs] (or [Program] ) - [Roland VersaWorks] - [Initialize Application]. Windows 8 Right-click on [Start] screen. Click [All apps]. Click [Initialize Application] of Roland VersaWorks. - Page 10 Switching the Ink Reconnect a printer that has been switched to EUV4 ink to VersaWorks. Start VersaWorks. The [Printer Settings] screen will appear. Set [IP address] to the IP address of the printer that has been switched to EUV4 ink. ...
- Page 11 Switching the Ink If there are multiple printers that have been switched to EUV4 ink click Repeat steps to reconnect to these printers that have been switched to EUV4 ink. Click [OK]. This completes the operations to switch to EUV4 ink. When a printer that does not use EUV4 ink is connected to VersaWorks Temporarily delete a printer that has been switched to EUV4 ink from VersaWorks.
- Page 12 Switching the Ink Reconnect a printer that has been switched to EUV4 ink to VersaWorks. Click Set [IP address] to the IP address of the printer that was temporarily deleted (the printer that has been switched to EUV4 ink). ...
-
Page 13: When Operations Are Interrupted
When Operations Are Interrupted When the Message "CANCELED FOR MOTOR PROTECTION" Is Displayed This message indicates that the machine's operations have been canceled in order to prevent pump motor malfunctions arising from overheating. If this message is displayed, press the sub power switch to turn the sub power off. Then, wait approximately 10 minutes before turning the sub power switch on again. - Page 14 DOC-1299 R1-150629...
