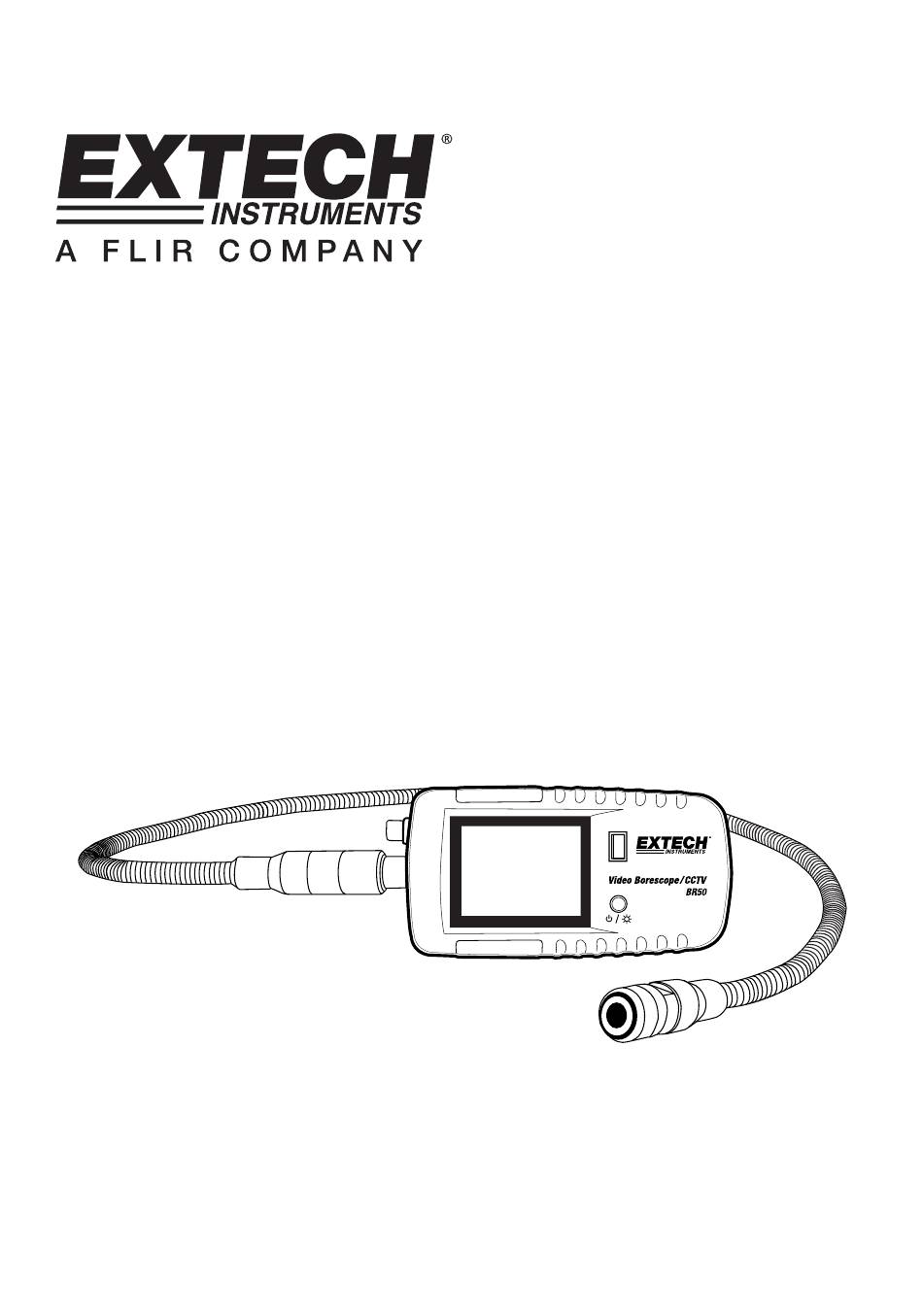

- Page 1 User's Guide Video Borescope and CCTV Tester Model BR50 contact: www.ponpe.com sale@ponpe.com...
- Page 2 Introduction Congratulations on your purchase of the Extech BR50 Video Borescope. This instrument was designed for use as a remote inspection device and a CCTV camera alignment/inspection tool. Typical applications include HVAC inspection, automotive inspection, and cable routing. The BR50 is also useful for automotive, boat, and aircraft inspection.
- Page 3 External AV input jack LCD Display Status LED Power / Brightness button Charging cable connector Flexible Gooseneck Camera connection plug Camera and LED lights 10. System reset button (rear view) 11. Four (4) housing screws (rear view) BR50-EU-EN-V1.0 5/11 contact: www.ponpe.com sale@ponpe.com...
- Page 4 Recharging: The charging indication indicates that the battery is charging. Full Charge: When the battery voltage is greater than 4.0V, the battery symbol will be full. BR50-EU-EN-V1.0 5/11 contact: www.ponpe.com sale@ponpe.com...
-
Page 5: Specifications
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C) Relative Humidity 85% max. Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com BR50-EU-EN-V1.0 5/11 contact: www.ponpe.com...
