H915P
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H915P and is the answer not in the manual?

Questions and answers

Related Manuals for BH FITNESS H915P

Summary of Contents for BH FITNESS H915P

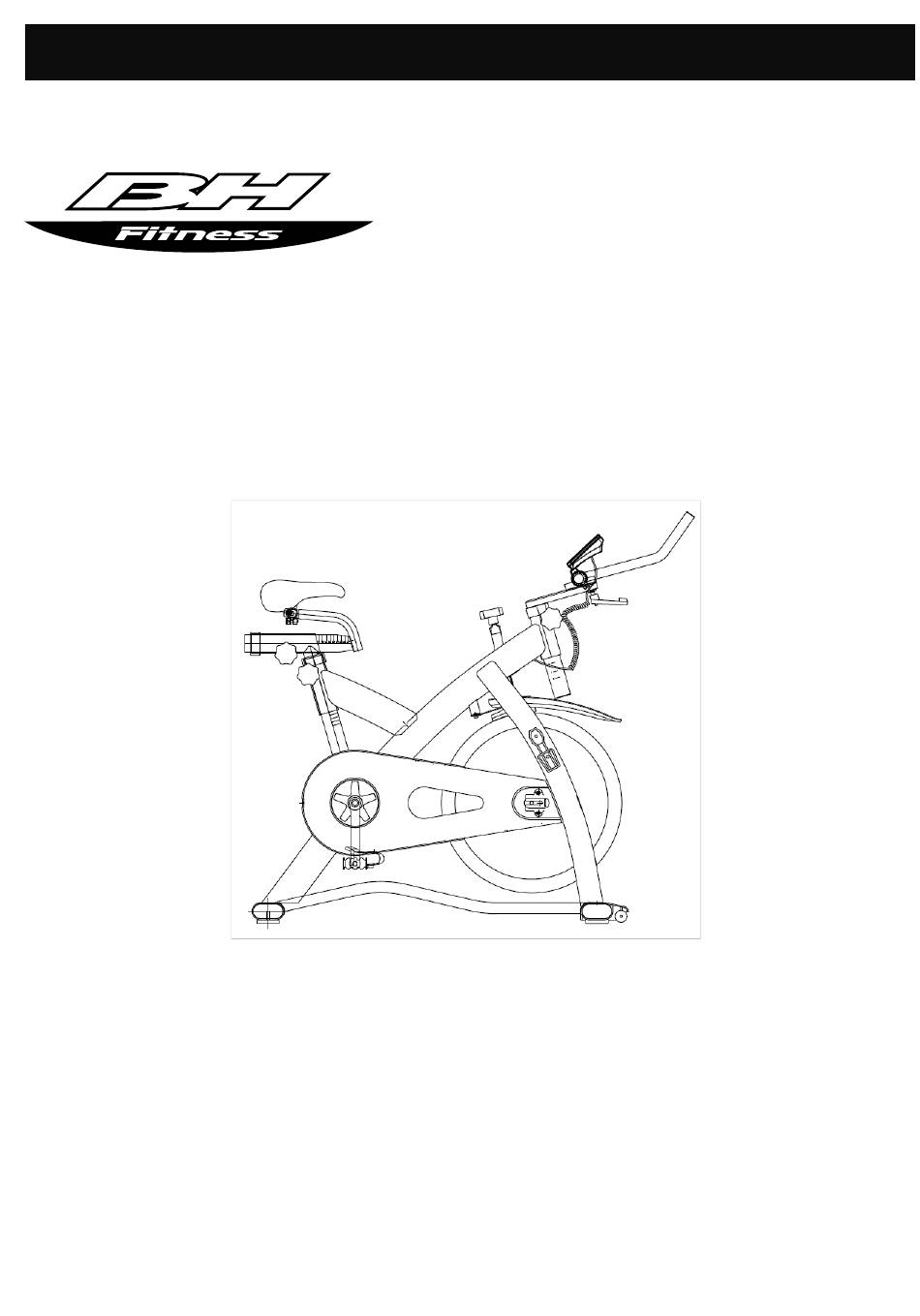

  • Page 1 H915P OWNER’S MANUAL...

  • Page 4: Assembly Drawing

    Assembly Drawing STEP 1 Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10).
  • Page 5 STEP 2 Attach the handlebar post (23) inserting into the head tube on the frame. Using knob (4) to adjusts and tightens the height in proper position. Then attached handlebar slider (21) on the handlebar post (23), use release lever (22) to adjust and tighten the handlebar in proper position.
  • Page 6 STEP 4 Adjust the exercise resistance on the spinning bike using the tension knob (31) to loosen (-) or tighten (+). Emergency brake – Press down brake system (31) for stop. MOVING There are moving wheel (13) located in front foot tube end cap for easy to moving the machine.

  • Page 7: Exploded Drawing

    Instruction ; Handlebar and seat adjustment. It is important that the handlebar and seat are set at the correct height for your body. Ask your instructor for assistance. Adjusting the handlebar height-Undo the that is knob located where the handlebar post fits into the frame. Slide the handlebar post up or down to the required height and retighten the knob.

  • Page 9: Part List

    Part list Name Unit No. Name Unit Saddle Outer chain guard bolt (M6) Alloy clip R & L Bolt and washer for spring plate Knob spring Flywheel adjuster bolt 4,37 Knob w/washer Knob plastic washer Crank arm set w/magnet SET 39 Knob fixed bolt Chain Knob washer...

  • Page 10: Maintenance Chart

    Maintenance Chart DESCRIPTION Daily Weekly Monthly Quarterly Annually Keep machine clean: Wipe machine down with clean & dry fabric to clear dirt & sweat. Spray with WD40 or similar on the seat post set, handlebar set (Don’t spray on the main frame) Visual check Check security of handle bar post &...

  • Page 11: Limited Warranty

    Limited Warranty This product carries the following guarantee against manufacturing defects: * Frame is warranted for 1 years from the date of purchase. * Components are warranted for 1 year. * Warranty is only valid for the original purchaser. * Labor and freight charges are not included. * Normal wear, neglect, abuse, accidents, improper assembly or maintenance, or the installation of parts or accessories not compatible with the original intended use of the bike, as sold, are...
  • Page 12 USER MANUAL FOR CONOSLE  General: This console has non-backlit LCD which displays Speed, RPM, Calories, Distance, Time and Pulse, optional.  Power On / Off： The display will be active to show all data upon pedaling. Once pedaling stops, LCD will remain blinking displaying latest data before pedaling stopped.
  • Page 13 e. CALORIES： Start from 0 and plus showing calories consuming of this workout. Range: 000.0~999.9 f. PULSE： For console with HR built-in receiver, bottom of the LCD showing HR. Range: 60~ 240 BPM. The chest belt must be 5K and receiver is compatible to polar. g.
  • Page 16 BH Asia Ltd. No. 80, Zhongshan Rd., Daya Dist., Taichung City 42841, Taiwan Tel: +886 4 2560 9200 Fax: +886 4 2560 9280 Email: info@bhasia.com.tw...
