ALGE-Timing BANG2 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version-E20-01-24
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BANG2 and is the answer not in the manual?

Questions and answers

Related Manuals for ALGE-Timing BANG2

Summary of Contents for ALGE-Timing BANG2

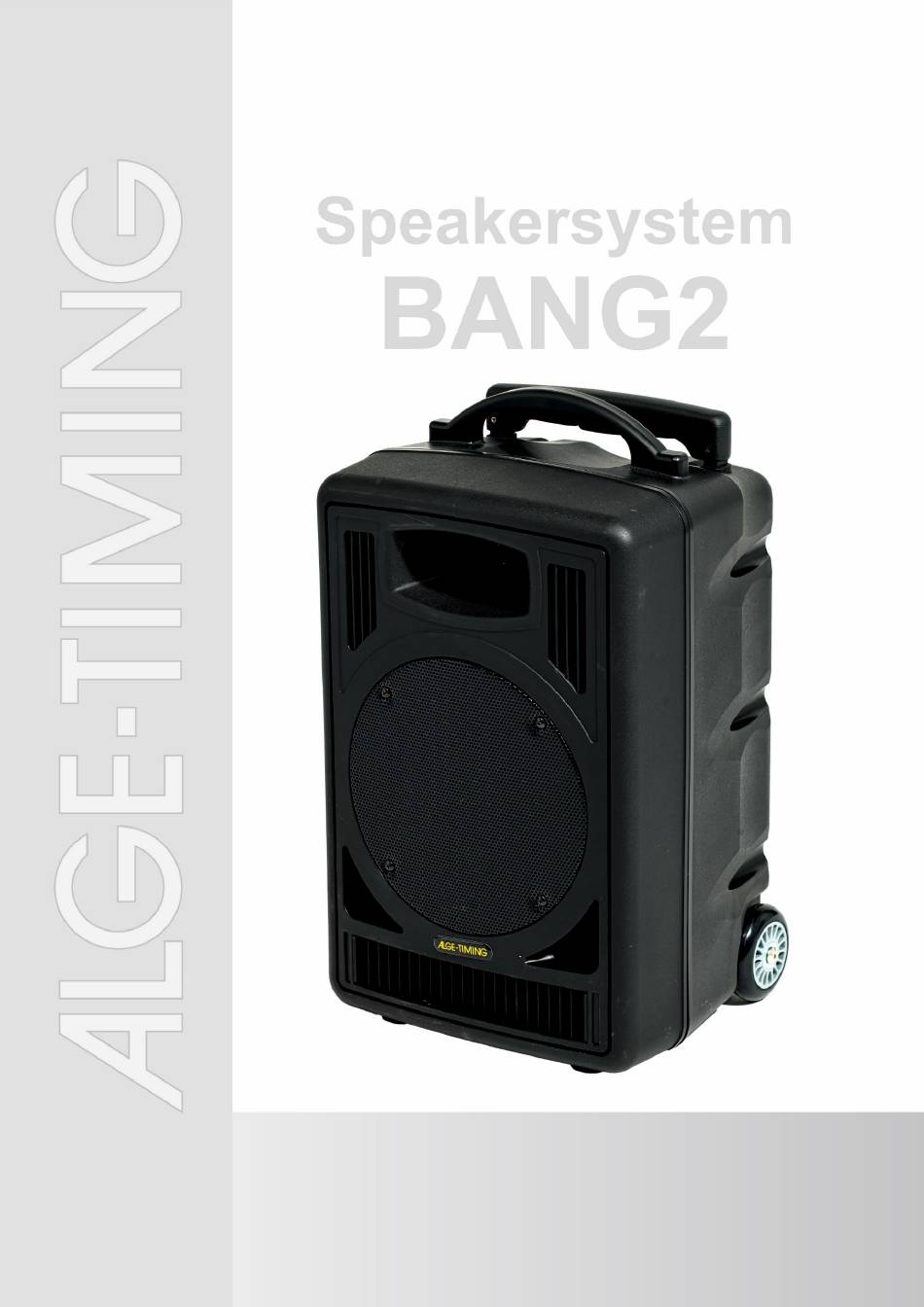

  • Page 1 Version-E20-01-24 Manual...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 Speaker System BANG2 Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE-TIMING GmbH. ALGE-TIMING GmbH Rotkreuzstrasse 39...

  • Page 4: Table Of Contents

    Delay Time False Start Channel “Delaytime false s.“ ..............11 2.7.10 “Default“ ............................11 2.7.11 Exit Settings “Exit“ ......................... 11 Accessories ......................11 2.8.1 Weather Protection BANG2-BAG ....................11 2.8.2 Tripod BANG-TRI .......................... 11 2.8.3 BANG SPK ............................ 11 Operation ........................12 Power Supply ......................12 Mains Connection ....................

  • Page 5: Control Elements And Connections

    Speaker System BANG2 1 Control Elements and Connections 1 ..2 x LTW-socket for connection of timing and/or further speaker systems, e.g. BANG2, Start Unit SU2 or SU3, FLASH XL, SJ2, TM-SWIM 2 ..banana socket (green – black) for start line to timing device (NOC, Open Collector) 3 ..

  • Page 6: General

    (permitted temperature range 0 – 40 °C). The BANG2 can be freely placed or mounted onto the ALGE-TIMING tripod BANG-TRI using the stand sleeve on the bottom. If it is raining, the BANG2 must be protected with the water- proof protection cover BANG2-BAG made from black synthetics (available as accessory).

  • Page 7: Starting

    Note: Every false start obligatory requires a start beforehand. This prevents accidentally trig- gering a false start before the starting signal. Attention: All devices of the WTN series (e.g. BANG2, e-Start W, WTN-PB, WTN) must be set to the same team!

  • Page 8: Start Unit Su2 Or Su3

    The Cinch sockets LINE OUT (14) can be used for e.g. a recording device or an additional active box BANG2 for sonication. Both sockets output the mono mix signal of the box. The controller MASTER (12) for total volume of the active box does not influence the signal at output LINE OUT but the settings of the tone controller TREBLE (6) and BASS (7).

  • Page 9: Status Display

    As long as this status is shown, starts cannot be executed. 2.7 Settings The BANG2 has three buttons for operating: green menu and confirmation button (5) and two arrow buttons (4). Press the green menu button to open the corresponding menu. Navigate with the arrow buttons (4) through the setting.

  • Page 10: Start Sound

    Manual Speaker System BANG2 is connected, the internal WTN module would immediately trigger a false start due to feedback. In this case the WTN module of the SJ2 would have to be adjusted to a different team as it cannot be deactivated.

  • Page 11: Delay Time False Start Channel "Delaytime False S

    SPKs can be connected. The BANG SPK consists of a passive loudspeaker with output of approx. 10 W. It has a fixed cable of 12 m (connection to BANG2 or BANG SPK) and a loudspeaker socket (cinch) for further BANG SPK.

  • Page 12: Operation

    The BANG2 can be supplied from mains or internal rechargeable batteries. 4.1 Mains Connection If the active box BANG2 is to be supplied via mains socket and/or the internal lead-gel-batteries are to be charged, connect with enclosed mains cable to mains connection (5) and to a socket (90 - 230V~/47 –...

  • Page 13: Technical Data

    5.2 Connections for Timing 2 x LTW socket: connection to start system and/or further loudspeaker systems, e.g. BANG2, SU2, SU3, FLASH XL, SJ2 1 x banana socket (green – black): starting signal output (normally open contact) 5.3 Radio Module WTN for Timing transmitting frequency: 2.4 GHz band, 16 adjustable teams...
  • Page 14 Manual Speaker System BANG2 -14-...
  • Page 15 Manual Speaker System BANG2 -15-...
  • Page 16 Manual Speaker System BANG2 Subject to changes and misprints Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 6890 Lustenau / Austria https://www.alge-timing.com/ -16-...
