Summary of Contents for ALGE-Timing bang cw

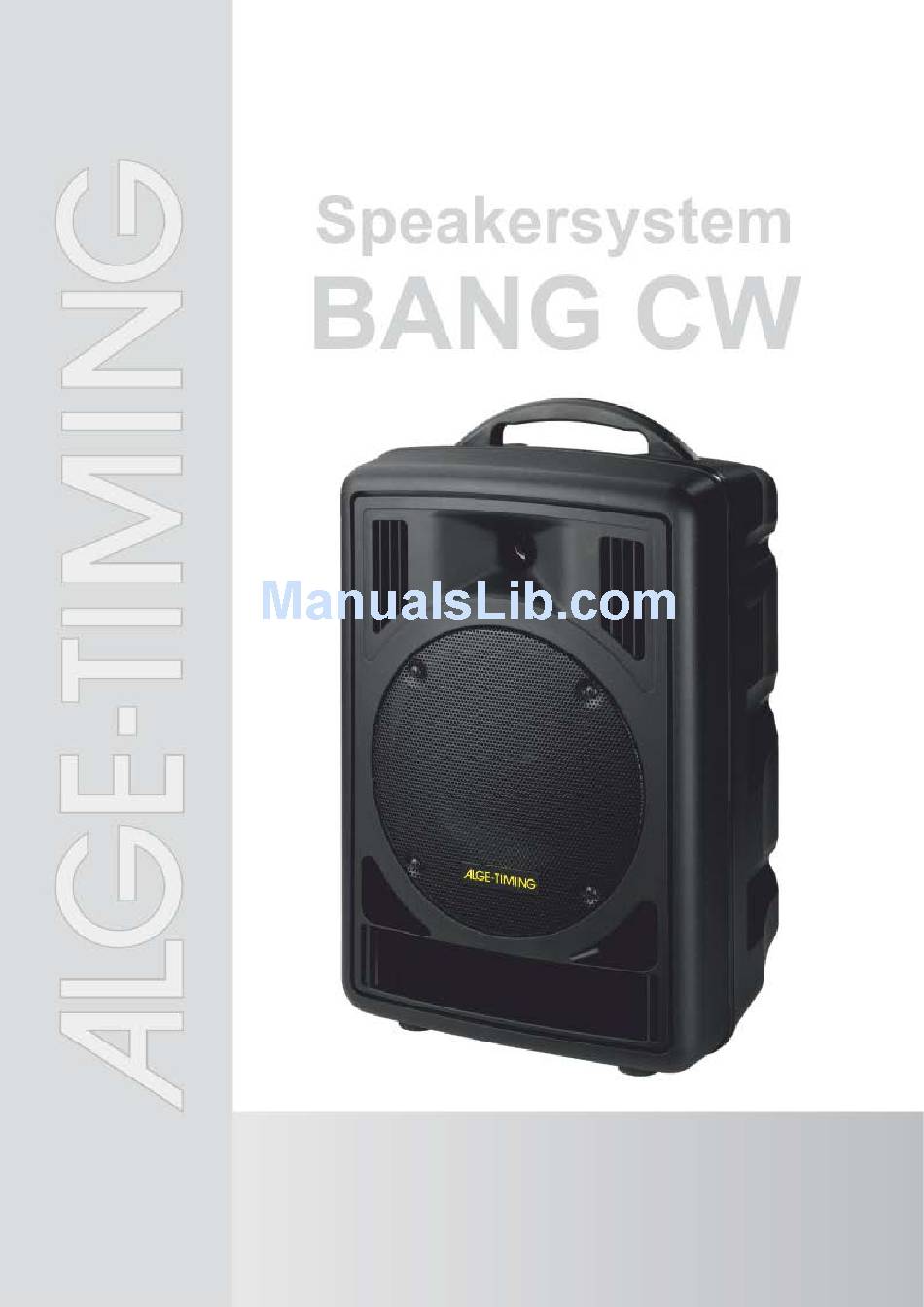

  • Page 1 Version-E160211 Manual...

  • Page 2: Important Information

    Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.

  • Page 3: Declaration Of Conformity

    Manual Speaker System BANG CW Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE- TIMING GmbH.

  • Page 4: Table Of Contents

    Manual Speaker System BANG CW Table of Contents Operating Elements and Connections ............... 5 General ......................... 6 Use of BANG CW ....................6 Setting up ......................6 Audio Connections ....................7 2.3.1 Inputs ............................... 7 2.3.2 Output LINE OUT ..........................7 2.3.3...

  • Page 5: Operating Elements And Connections

    Manual Speaker System BANG CW 1 Operating Elements and Connections 1 ..Connections for timing 2 ..Wireless Timing Network WTN 3 ..On-off switch 4 ..Amplifier controller und amplifier connections 5 ..Mains (90 - 230 V~ / 47 – 63 Hz) 6 ..

  • Page 6: General

    2.1 Use of BANG CW The BANG CW is a device that is used in the start area at sports events to output the start tone and false start tone. Further it is possible to make announcements (e.g. starting com- mands).

  • Page 7: Audio Connections

    TREBLE (7) and BASS (8). Note: The BANG CW is not provided with a volume control for the unit at the input LINE IN (10); i.e. the signal of the unit is always fed to the output LINE OUT at its input volume.

  • Page 8: Radio Power Output

    Manual Speaker System BANG CW When designing the Wireless Timing Network the ALGE development team concentrated on features that make ALGE devices unique, but also on features that stand for ALGE products: easy operation, highest reliability, rugged casing. Up-to-date technology, integrated in a solid case, results in exceptional features.

  • Page 9: Accessory

    Therefore, always observe the notes in the chapter 5. Power Supply. The BANG CW can be integrated with different devices from ALGE-TIMING as a start system: Page 9...

  • Page 10: Operation

    • For the false start device (WTN-PB or e-Start W) and BANG CW you must adjust the same radio team (switch 16). The false start device must be set on channel C1.

  • Page 11: Power Supply

    Manual Speaker System BANG CW 5 Power Supply The BANG CW can be use connected to the mains or running on the internal rechargeable batteries. 5.1 Mains To operate the active speaker system via a mains socket and/or to recharge the internal lead gel batteries, connect the mains cable provided to the mains jack (5) and to a mains socket (90 - 230 V~ / 47 –...

  • Page 12: Functions

    The BANG CW outputs a start impulse to trigger a timing device (closing contact) via the green and black banana socket (16). If the BANG CW receives another start impulse within 5 seconds of the first start impulse it outputs a false start sound (several honks within a short time).

  • Page 13: Start Unit Su2 Or Su3

    Manual Speaker System BANG CW 6.1 Start Unit SU2 or SU3 The Start Unit SU2 or SU3 can be connected at one of the two LTW jacks (14) with cable 199-xx. With the built-in microphone of the start unit you can give oral commands to the ath- letes through the BANG.

  • Page 14: Technical Specifications

    Manual Speaker System BANG CW 7 Technical Specifications 7.1 Amplifier and Speaker Amplifier Power: 80WMAX/50WRMS Frequency Range: 70 – 16 000 Hz 20 cm (8″) bass speaker and 2.5 cm (1″) tweeter Speaker System: Input MIC IN Sensitivity: 6 mV Connection: XLR/6,3-mm-Klinke, sym.

  • Page 15: Special Settings

    Manual Speaker System BANG CW 8 Special Settings For various sports and applications it can be necessary to change a setting of the Bang. First you have to switch off the Bang. Open the red marked screws. When the screws are removed, you can pull out the unit.
  • Page 16 Manual Speaker System BANG CW Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 6890 Lustenau / Austria www.alge-timing.com Page 16...
