ALGE-Timing Bang W Manual

Hide thumbs Also See for Bang W:
Table of Contents

Advertisement

Quick Links

Download this manual
Version-E150528
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bang W and is the answer not in the manual?

Questions and answers

Related Manuals for ALGE-Timing Bang W

Summary of Contents for ALGE-Timing Bang W

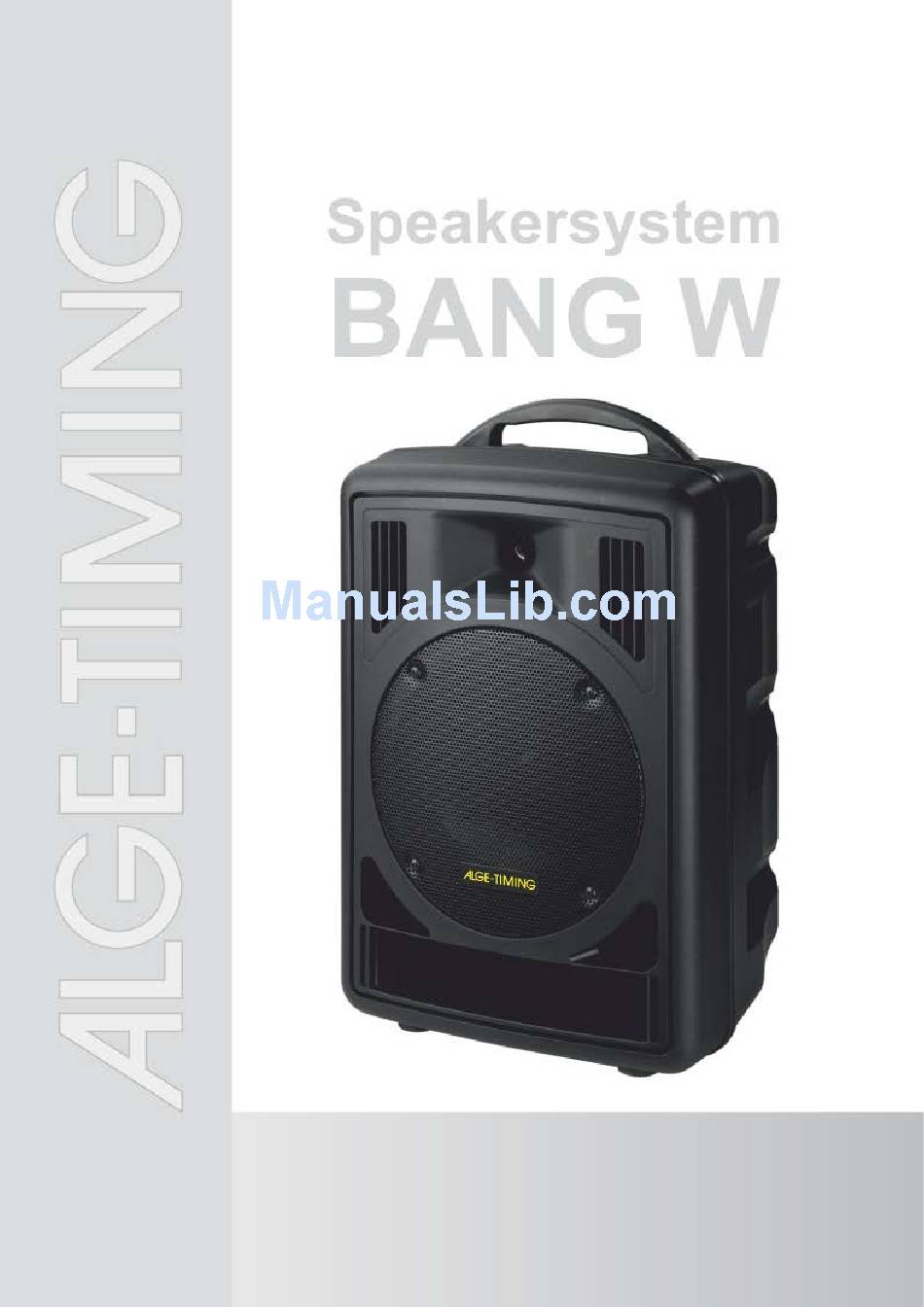

  • Page 1 Version-E150528 Manual...

  • Page 2: Important Information

    Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.

  • Page 3: Declaration Of Conformity

    Manual Speaker System BANG W Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE- TIMING GmbH.

  • Page 4: Table Of Contents

    Manual Speaker System BANG W Table of Contents Operating Elements and Connections ............... 5 General ......................... 6 Setting up ......................6 Audio Connections ....................6 2.2.1 Inputs ............................... 6 2.2.2 Output LINE OUT ..........................6 2.2.3 Passive Speaker System ......................... 6 Wireless Timing Network WTN ................

  • Page 5: Operating Elements And Connections

    Manual Speaker System BANG W 1 Operating Elements and Connections 1 ..UHF-PLL radio receiver for Headset micro BANG-HS 2 ..Wireless Timing Network WTN 3 ..On-off switch 4 ..Amplifier controller und amplifier connections 5 ..Mains (90 - 230 V~ / 47 – 63 Hz) 6 ..

  • Page 6: General

    CD player or cassette recorder. The BANG W has to opportunity to be integrated in a timing system in order to create a simu- lated start gun sound or start tone. Additionally, it can acoustically output a false start tone.

  • Page 7: Wireless Timing Network Wtn

    LED for WTN reception The ALGE Wireless Timing Network WTN is a compact radio system for timing and is equipped with the most updated technology. The BANG W has a WTN-radio module built in and is fully compatible with the WTN A radio network consists of two or more devices of the WTN series.

  • Page 8: Radio Power Output

    The radio power output is adjusted to 10 mW. It can be adjusted between 10 mW and 100 mW. It is not possible to change the power output directly in the BANG W. If you adjust the power output in another device of the network (e.g. Wireless Timing Network WTN), then it sets all devices in this network to the newly adjusted power output (as well the BANG W).

  • Page 9: Accessory

    You can connect the passive speaker BANG SPK at the BANG W (it is possible to connect a maximum of 8 BANG SPK). It consists of a pas- sive horn speaker with an output line of about 10 W. It has a fixed cable of 12 m (connection at BANG W or BANG SPK and a speaker jack (RCA) to connect addi- tional BANG SPK.

  • Page 10: Commissioning

    Therefore, always observe the notes in the chapter 5. Power Supply. The BANG can be integrated with different devices from ALGE-TIMING as a start system: • Electronic Start gun e-Start W •...

  • Page 11: Operation

    Manual Speaker System BANG W 4 Operation • Advance the control MASTER (6) for the master volume to such an extent that the sub- sequent adjustments can be heard well via the speakers. • Switch on the desired signal sources and mix their signals with the corresponding vol-...

  • Page 12: Power Supply

    (each 12 V /3 Ah) for a mains independent use. 5.2.1 Battery Operating Time The running time of the BANG W using the internal batteries depends on the volume and on the duration of active use (volume output). Operating Time: about 3 to 4 hours at normal use 5.2.2...

  • Page 13: Functions

    Speaker System BANG W 6 Functions If you receive at the BANG W a start impulse (by radio) from a start device (e.g. e-Start W) you get a start sound output. The start sound can be adjusted from the producer (ALGE-TIMING) as „gun sound“ or „horn sound“.

  • Page 14: Technical Specifications

    Manual Speaker System BANG W 7 Technical Specifications 7.1 Amplifier and Speaker Amplifier Power: 80WMAX/50WRMS Frequency Range: 70 – 16 000 Hz 20 cm (8″) bass speaker and 2.5 cm (1″) tweeter Speaker System: Input MIC IN Sensitivity: 6 mV Connection: XLR/6.3-mm-Klinke, sym.
  • Page 15 When the screws are removed, you can pull out the unit. Now you can change the setting with the red jumper: After finishing the setting plug the unit in the Bang W again. After that you have to fix the screws again.
  • Page 16 Manual Speaker System BANG W Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 6890 Lustenau / Austria www.alge-timing.com Page 16...
