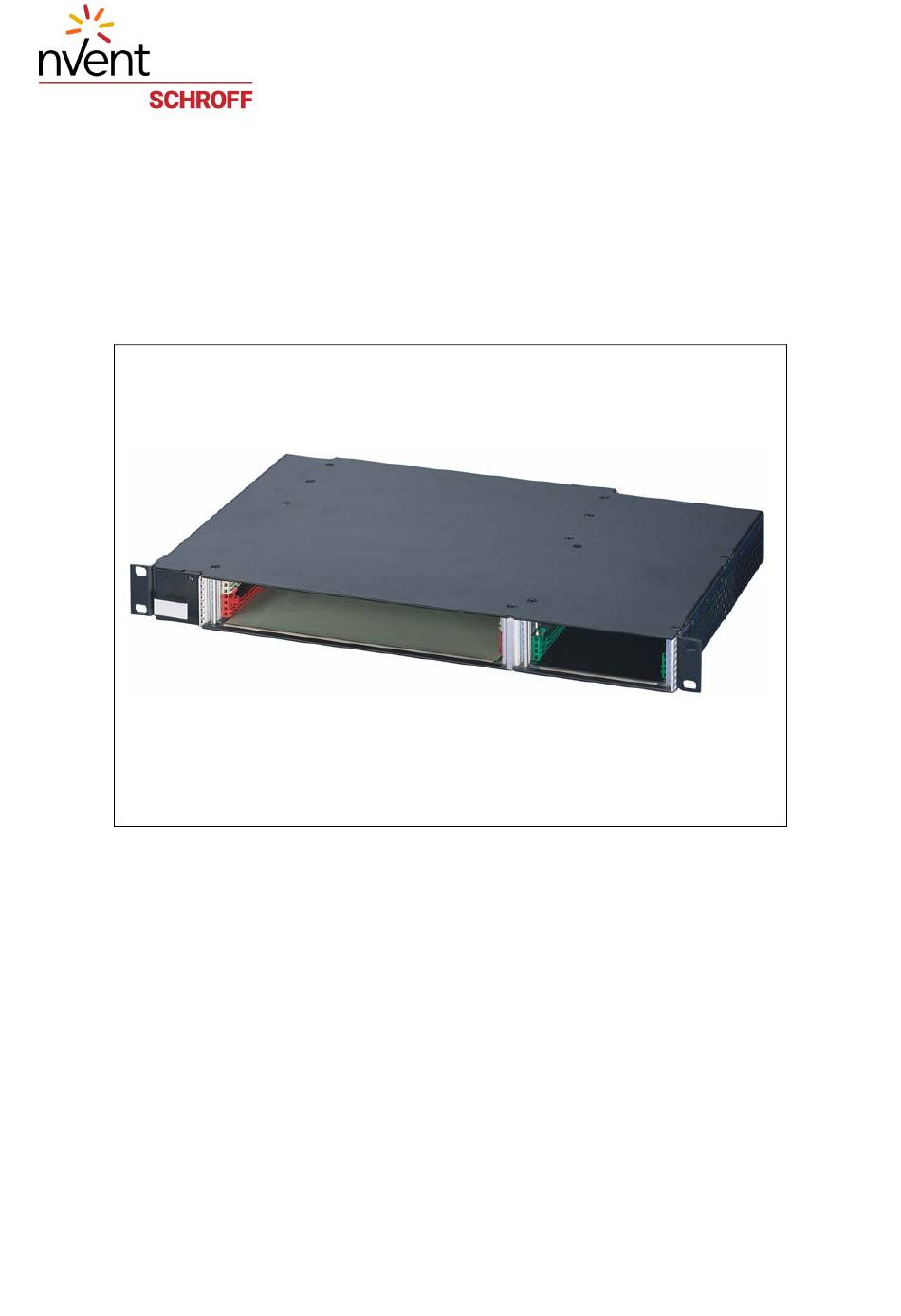

- Page 1 CPCI System Subrack 1 U User’s Manual Product No.: 24579-078 Doc-No: 63972-165_R1.0 January 14, 2008...
- Page 2 Rev. Date updated Change R1.0 January 14, 2008 Initial Release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints. The company reserves the right to amendments of technical specifications due to further development and improvement of products.
-
Page 3: Table Of Contents
CPCI System Subrack 1 U 24579-078 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 Subrack System Overview................... - Page 4 CPCI System Subrack 1 U 24579-078 www.schroff.biz R1.0, January 14, 2008...
-
Page 5: Safety
CPCI System Subrack 1 U Safety 24579-078 1 Safety 1.1 Intended Application The CompactPCI (CPCI) system subrack, described in this manual, is intended as a platform for a microcomputer system based on the CompactPCI Standard PICMG 2.0 Rev.3. The CPCI system subracks are designed for protection class IP 20 and can be used only in the resp. -
Page 6: Safety Instructions
CPCI System Subrack 1 U Safety 24579-078 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages. -
Page 7: Product Definition
CPCI System Subrack 1 U Product Definition 24579-078 2 Product Definition The Schroff CPCI system subrack consists of: • A shielded 19“ subrack with front and rear card cage for 6 U boards according to CompactPCI Standard PICMG 2.0 Rev.3 •... -
Page 8: Subrack
CPCI System Subrack 1 U Product Definition 24579-078 2.3 Subrack: The 1 U 19” subrack is based on the Schroff europacPRO system with EMC shielding. The card cage enables the horizontal assembly of 2 CPCI front boards (6 U, 4 HP, 160 mm deep) and 2 Rear I/O Boards (6 U, 4 HP, 80 mm deep). -
Page 9: Power Supply
CPCI System Subrack 1 U Product Definition 24579-078 2.5 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country. -
Page 10: Cpci Plug-In Ac Power Supply (Order Separately)
CPCI System Subrack 1 U Product Definition 24579-078 2.5.2 CPCI Plug-In AC Power Supply (Order separately) Figure 3: Power Supply 10006814 Table 1: Data AC Power Supply Input voltage nominal 100 - 240 VAC Mains Frequency 50 / 60 Hz Output (max.) 250 W Output voltages... -
Page 11: Cooling
CPCI System Subrack 1 U Product Definition 24579-078 2.6 Cooling Figure 4: Fan Tray 12308800 Backplane Connector The boards are cooled by forced air convection through four 12 VDC axial fans (13,5 m³/h (8 cfm) each). The operating temperature is from 0°C to 50°C, but note that the power supply starts derating at 50°C. -
Page 12: Installation
CPCI System Subrack 1 U Installation 24579-078 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •... -
Page 13: Rack-Mounting
CPCI System Subrack 1 U Installation 24579-078 3.2 Rack-Mounting This subrack system can be installed in 19“ equipment racks. The rack must be accessible from the front and rear for equipment installation. Mounting Instructions: • Ensure that the rack is constructed to support the weight and dimensions of the system. -
Page 14: Service
CPCI System Subrack 1 U Service 24579-078 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete subrack system. For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. -
Page 15: Scope Of Delivery
CPCI System Subrack 1 U Service 24579-078 4.3 Scope of Delivery Quantity Description 19” subrack, shielded, black powder coated (RAL9005) CPCI backplane (PICMG2.0 R.3.0), 2 slot 6 U, system slot left Front card cage for max. 2 boards 6 U 160 mm deep IEEE guide rails inc. -
Page 16: Technical Data
CPCI System Subrack 1 U Technical Data 24579-078 5 Technical Data Table 2: Technical Data Dimensions Height 44.45 mm (1U) Width 482.80 mm (19“) Depth (Card cage) 275 mm Weight Depth (Overall with handles) 303 mm Completely assembled 5 kg Power Supply (order separately) Input Voltage... -
Page 17: Dimensions
CPCI System Subrack 1 U Dimensions 24579-078 6 Dimensions Figure 6: Dimensions 465.20 482.80 13.95 283.25 304.70 10006858 www.schroff.biz R1.0, January 14, 2008... - Page 18 CPCI System Subrack 1 U Dimensions 24579-078 www.schroff.biz R1.0, January 14, 2008...
- Page 20 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
