CPCI System Subrack 3 U
User's Manual
Product No.:
24579-031
December 16, 2010
Doc-No: 63972-255_R1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPCI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for nvent CPCI

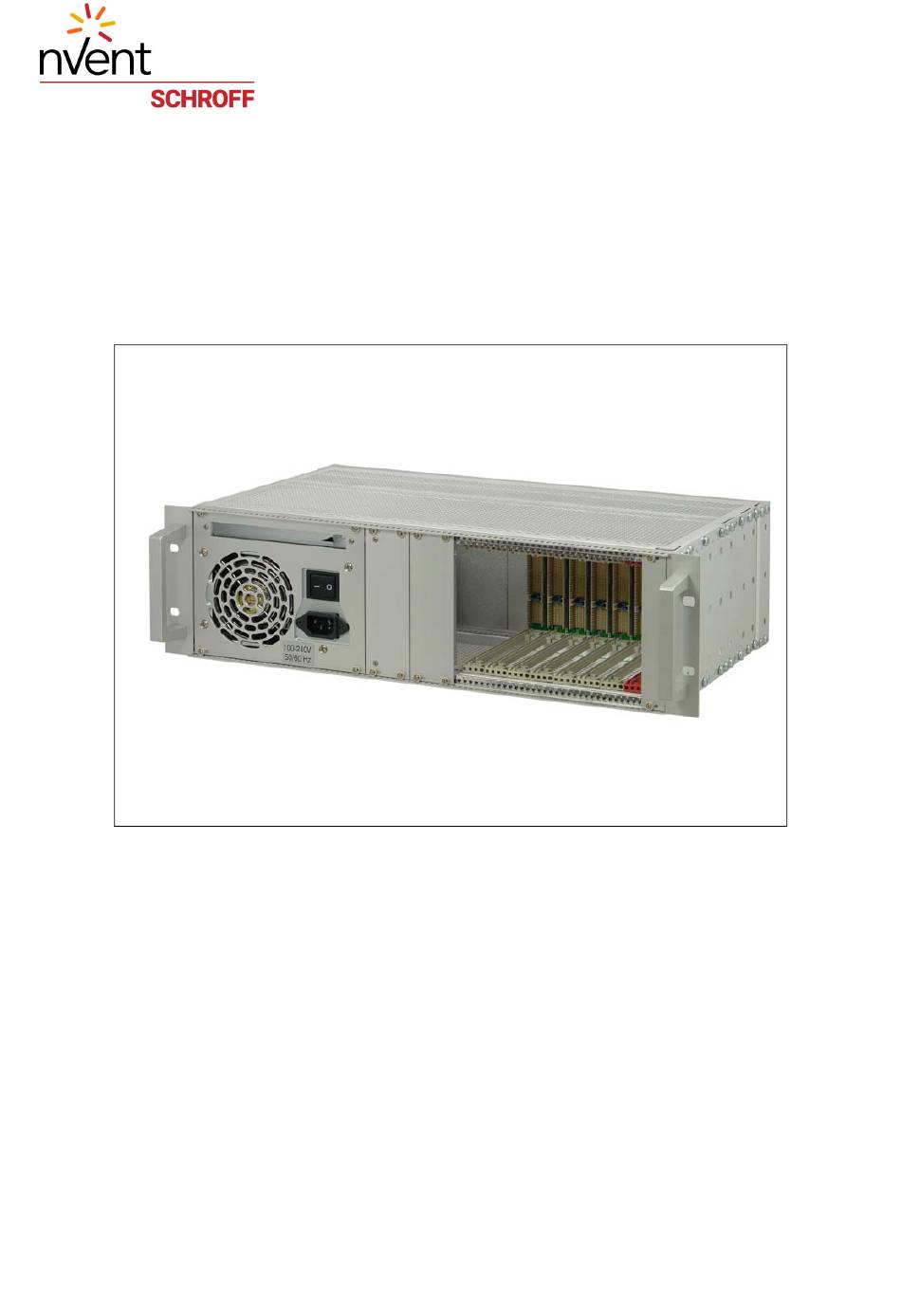

  • Page 1 CPCI System Subrack 3 U User’s Manual Product No.: 24579-031 December 16, 2010 Doc-No: 63972-255_R1.1...
  • Page 2 Rev. Date updated Change R1.0 February 16, 2009 Initial Release R1.1 December 16, 2010 New ATX PSU, ECN 10/2345 Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
  • Page 3: Table Of Contents

    CPCI System Subrack 3 U 24579-031 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 System Overview....................
  • Page 4 CPCI System Subrack 3 U 24579-031 www.schroff.biz R1.0, December 16, 2010...
  • Page 5: Safety

    CompactPCI Standard PICMG 2.0 Rev.3. The CPCI case systems are designed for protection class IP 20 and can be used only in the resp. environments. CPCI system subracks are not end-products, so there is no valid approval for this unit.
  • Page 6: Safety Instructions

    CPCI System Subrack 3 U Safety 24579-031 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages.
  • Page 7: Product Definition

    • A shielded subrack with front and rear card cage for 3 U boards according to CompactPCI Standard PICMG 2.0 Rev.3 • An 8 slot 3 U CPCI Backplane (32-bit), system slot right • An ATX power supply (300 W) with wide range input, IEC320-C14 connector and mains/line switch •...
  • Page 8: Subrack

    The 3 U chassis is based on the Schroff europacPRO system with EMC shielding. The card cage enables the assembly of 8 CPCI front boards (3 U, 4 HP, 160 mm deep) and 8 Rear I/O Boards (3 U, 4 HP, 80 mm deep).
  • Page 9: Power Supply

    CPCI System Subrack 3 U Product Definition 24579-031 2.5 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country.
  • Page 10: Cooling

    CPCI System Subrack 3 U Product Definition 24579-031 2.6 Cooling The CPCI boards and the power supply are cooled by natural air convection through the perforated base cover and top cover. The operating temperature is from 0°C to 50°C. Caution! To maintain proper airflow, all open slots must be covered with filler panels.
  • Page 11: Installation

    CPCI System Subrack 3 U Installation 24579-031 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation.
  • Page 12: Rack-Mounting

    • Check the Protective Earth (PE) resistance, should be < 0,1 Ohm. • Switch on the system and check all CPCI voltages directly on the backplane connectors before the board assembly. Note: The ATX power supply requires a minimum load! •...
  • Page 13: Service

    2006/95/EG. Interference resistance and interference emissions are factors which are heavily influenced by the type and quantity of CPCI cards used in the system assembly. Through the use of high quality line filters and EMC optimized enclosure design, SCHROFF offers CPCI systems which serve as an ideal base for system...
  • Page 14: Scope Of Delivery

    Quantity Description Shielded europacPRO chassis 3 U / 84 HP with front handles CPCI backplane (PICMG2.0 R.3.0), 8 slot 3 U Front card cage for max. 8 boards 3 U 160 mm deep IEEE guide rails inc. ESD clips) Rear card cage for max. 8 boards 3 U 80 mm deep IEEE guide rails inc.
  • Page 15: Technical Data

    CPCI System Subrack 3 U Technical Data 24579-031 5 Technical Data Table 2: Technical Data Dimensions Height (w/o feet) 132,35 mm (3 U) Width 482.60 mm (19“) Depth (Card cage) 275 mm Depth (Overall with handles) 328,5 mm Weight Completely assembled approx.
  • Page 16: Dimensions

    CPCI System Subrack 3 U Dimensions 24579-031 6 Dimensions Figure 3: Dimensions www.schroff.biz R1.1, December 16, 2010...
  • Page 18 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
