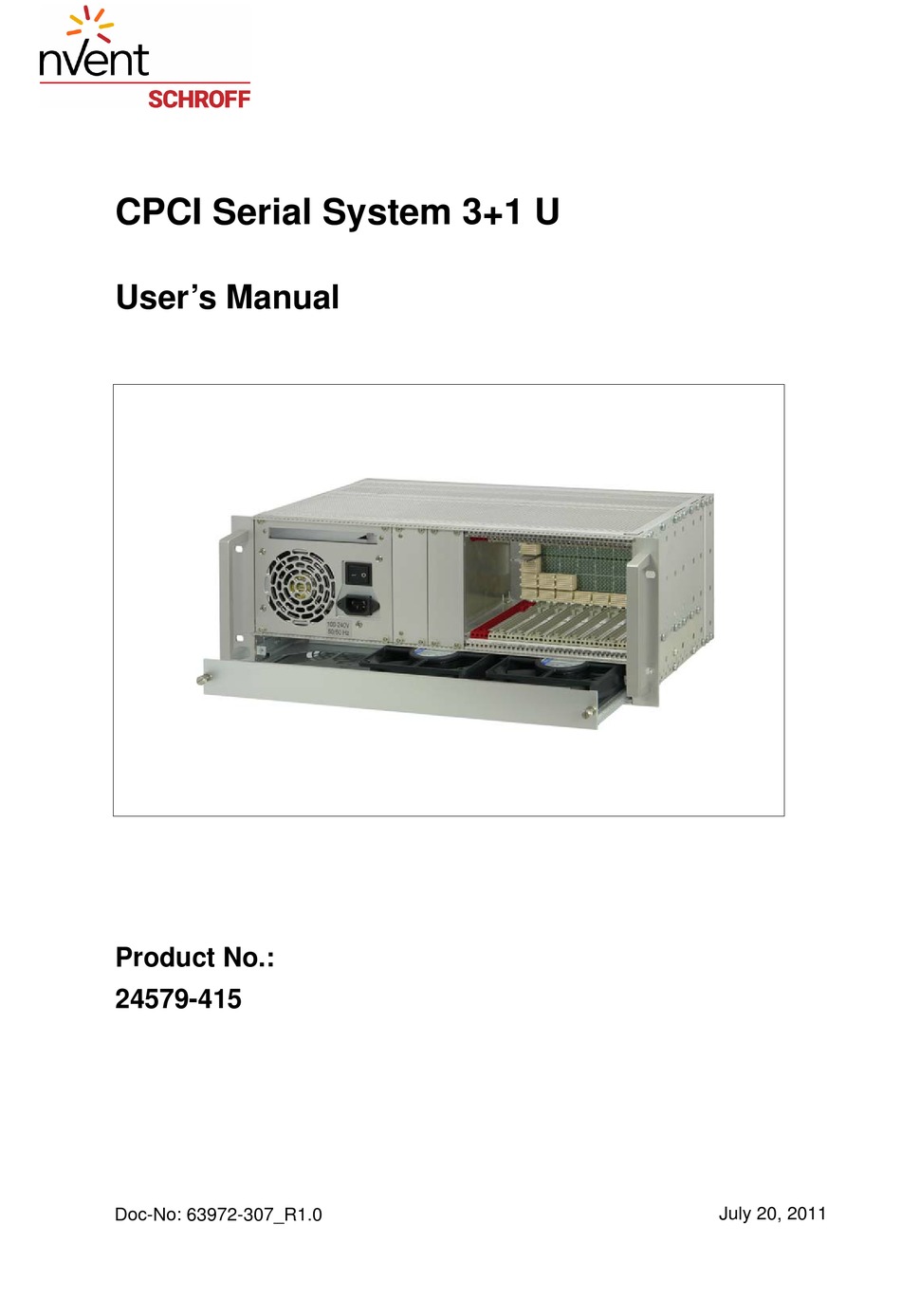

- Page 1 CPCI Serial System 3+1 U User’s Manual Product No.: 24579-415 July 20, 2011 Doc-No: 63972-307_R1.0...
- Page 2 Rev. Date updated Change R1.0 July 20, 2011 Initial Release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints. The company reserves the right to amendments of technical...
-
Page 3: Table Of Contents
CPCI Serial System 3+1 U 24579-415 Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 System Overview....................4 Subrack........................ - Page 4 CPCI Serial System 3+1 U 24579-415 www.schroff.biz R1.0, July 20, 2011...
-
Page 5: Safety
CPCI Serial System 3+1 U Safety 24579-415 1 Safety 1.1 Intended Application The CompactPCI Serial system, described in this manual, is intended as a platform for a microcomputer system based on the CompactPCI Standard CPCI Serial CPCI-S.0. The case systems are designed for protection class IP 20 and can be used only in the resp. -
Page 6: Safety Instructions
CPCI Serial System 3+1 U Safety 24579-415 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of ... -
Page 7: Product Definition
CPCI Serial System 3+1 U Product Definition 24579-415 2 Product Definition The Schroff CPCI Serial system consists of: • A shielded subrack with front card cage for 3 U boards according to IEEE 1101.x, IEC 20297.x and the CompactPCI Standard CPCI Serial (CPCI-S.0) •... -
Page 8: System Overview
CPCI Serial System 3+1 U Product Definition 24579-415 2.2 System Overview Figure 1: System Overview 12311820 Drive holder with front panel for an Front panel 3 U, 8 HP optional 3.5“ HDD Drive holder for an optional slim line Handle DVD drive ATX Power Supply Front Card cage with guide rails... -
Page 9: Cpci Serial Backplane
CPCI Serial System 3+1 U Product Definition 24579-415 2.4 CPCI Serial Backplane Figure 2: Backplane front and rear view UTILITY IPMB +5V STNDBY www.schroff.biz R1.0, July 20, 2011... -
Page 10: Backplane Topology
CPCI Serial System 3+1 U Product Definition 24579-415 2.4.1 Backplane topology The CPCI Serial backplane with 9 slots supports the full set of serial links at all slots. The serial links (SATA/SAS, USB2/3, PCIe) are arranged as a Single Star architecture. - Page 11 CPCI Serial System 3+1 U Product Definition 24579-415 Figure 4: Backplane Topology (Option) 23007-611 (Ethernet Full Mesh) Control www.schroff.biz R1.0, July 20, 2011...
-
Page 12: Power Supply
CPCI Serial System 3+1 U Product Definition 24579-415 2.5 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a ... -
Page 13: Load Resistor
CPCI Serial System 3+1 U Product Definition 24579-415 2.5.2 Load Resistor The ATX PSU requires minimum loads at the 5 V and the 12 V outputs. Because the CPCI Serial Backplane need only 12 V supply voltage, a load resistor (10 Ohms / 5 W) is connected to the 5 V output. -
Page 14: Cooling
CPCI Serial System 3+1 U Product Definition 24579-415 2.6 Cooling The boards are cooled by forced air convection through two 12 VDC axial fans (140 m³/h (85 cfm)). The fans are located in a hot-swappable fan tray. The operating temperature is from 0°C to 50°C. Caution! To maintain proper airflow, all open slots must be covered with filler panels. -
Page 15: Installation
CPCI Serial System 3+1 U Installation 24579-415 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •... -
Page 16: Rack-Mounting
CPCI Serial System 3+1 U Installation 24579-415 3.2 Rack-Mounting This subrack system can be installed in 19“ equipment racks. The rack must be accessible from the front and rear for equipment installation. Mounting Kit A rack mounting kit comes with the system. Mounting Instructions: •... -
Page 17: Service
CPCI Serial System 3+1 U Service 24579-415 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete system. For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. We recommend that you save the packing material. -
Page 18: Scope Of Delivery
CPCI Serial System 3+1 U Service 24579-415 4.3 Scope of Delivery Quantity Description Shielded europacPRO chassis 4 U / 84 HP with front handles CPCI Serial backplane 9 slot 3 U with Single Star Ethernet topology Front card cage for max. 9 boards 3 U 160 mm deep IEEE guide rails inc. -
Page 19: Technical Data
CPCI Serial System 3+1 U Technical Data 24579-415 5 Technical Data Table 2: Technical Data Dimensions Height Width 482.60 mm (19“) Depth (Card cage) 275 mm Depth (Overall with handles) 322 mm Weight Completely assembled approx. 7,5 kg Power Supply Input Voltage 100 VAC to 240 VAC Frequency... -
Page 20: Dimensions
CPCI Serial System 3+1 U Dimensions 24579-415 6 Dimensions Figure 7: Dimensions www.schroff.biz R1.0, July 20, 2011... - Page 22 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
