Philips LTC9353/00 Instructions For Use Manual

Indoor housings.
Hide thumbs

Advertisement

Indoor Housings
Eng
F
D
E
NL
I
LTC 9350 Series
Philips
Communication &
Security Systems

Advertisement

   Related Manuals for Philips LTC9353/00

   Summary of Contents for Philips LTC9353/00

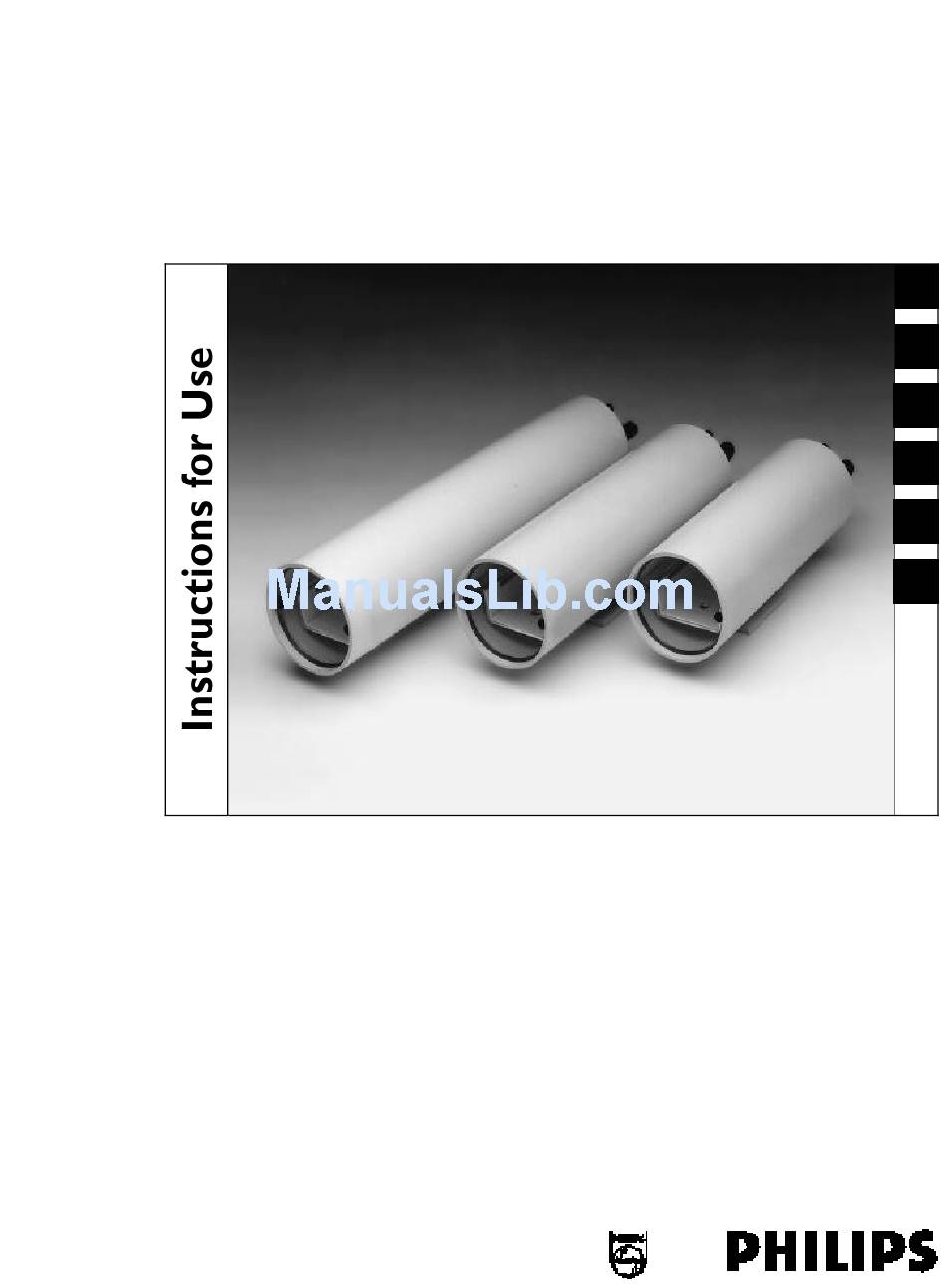

  • Page 1 Indoor Housings LTC 9350 Series Philips Communication & Security Systems...
  • Page 2 IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.
  • Page 3: Table Of Contents

    Installation and Operating Instructions. If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, notify your Philips Communication & Security Systems Inc. Sales Representative or Customer Service.
  • Page 4 6-32 x 5/8 Long Phillips Head Screws W9407400BE Figure 1: Remove Phillips Head Screws Remove the end cap from the housing by pulling out the cradle assembly. See Figure 2. Figure 2: Remove Cradle Assembly Place the camera/lens on the cradle assembly. The correct positioning for mounting either a camera with a fixed lens or a camera with a zoom lens is shown in Figure 3.
  • Page 5 Camera Power Cord CCD Camera Line Neutral Groumd Wiring Color Codes Location Wire Designation N. America International Line Black Brown Neutral White Blue Ground Green Green/Yellow Figure 6: Terminal Block Wiring Pull excess wire out of the cradle assembly. Tighten the fitting around the cable to create a liquid tight fit.
  • Page 6: Illustration

    ILLUSTRATION Front View Thick 0.37 Side View 10.8 13.0 TC9352 TC9353 Bottom View 13.1 TC9352 Figure 9: Dimensional Outline 17.0 TC9358 19.4 15.4 W9406400BE TC9353 TC9358...
  • Page 7: Recommended Applications

    RECOMMENDED APPLICATIONS The LTC 9350 Series are UL Listed to Standard 1409. The following cameras must be used in these housings to maintain the UL Listing. Camera Models Rated Operating 60 Hz Cameras Voltage LTC 0142/60 120 VAC LTC 0143/60 120 VAC LTC 0142/20 24 VAC or 12 VDC...
  • Page 8: Parts List

    The following cameras are to be used only with housings that require 220-240 volt power supplies. Contact your local Philips Communication & Security Systems Inc. Sales Representative for correct camera/lens combinations. Rated Operating 50 Hz Cameras Voltage TC354AX 220-240 VAC...
  • Page 9 Hardware Kit - 315 1715 001 Quan. Part Number Replacement Part Kits Quan. Part Number 11-inch Cradle Assembly Kit - 315 2790 001 13-inch Cradle Assembly Kit - 315 2791 001 17-inch Cradle Assembly Kit - 315 2792 001 End Cap Kit - 315 2793 001 315 1740-900 315 1741 900 315 1743 900...

This manual also for:

Ltc 9350 series
