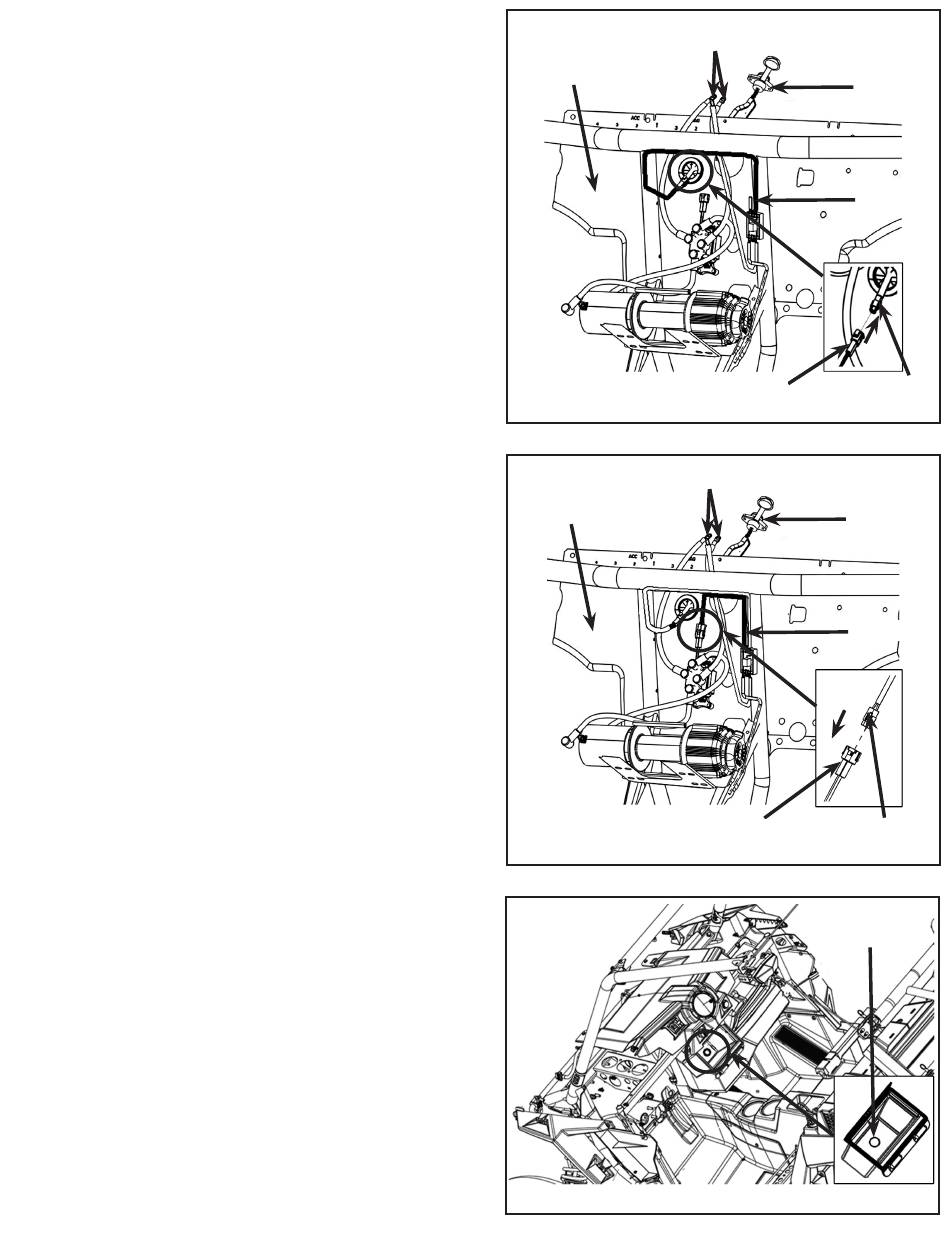

25. Route the cable from auto-stop control unit to the
socket wire connector (PN 4014228). Figure 29.
26. Route the cable (highlighted) from auto-stop control
unit to the contactor. Figure 30.

For 3500 and 4500 Winch Kits:

27. Cut out a hole in the din box for mounting the
socket (PN 4014228). Figure 31.
NOTE: Follow the instruction on the back of the din
for the cutout.
NOTE: Position may change as per requirement.
Firewall
Figure 29
Firewall
Figure 30
Figure 31
-14-
Bus Bar
Auto-stop
Socket Wire
Control Unit
Connector
Bus Bar
Socket
Winch
Contactor Auto-stop
Connector Control Unit
Hole
Socket
Winch
Cable
Cable
