5. Sensor position

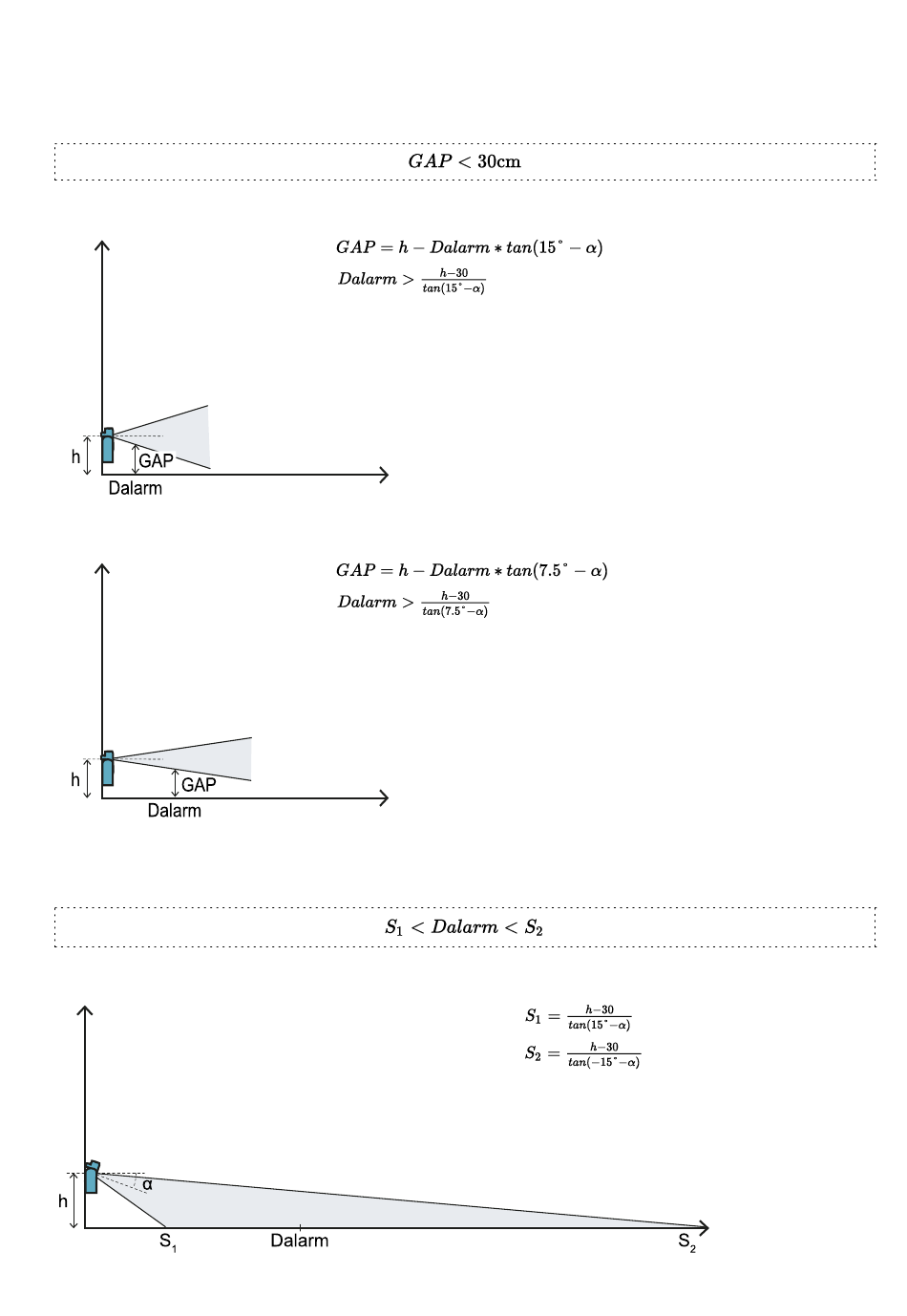

5.4.5 Configuration 2 (straight sensor)
To guarantee that the sensor also detects the presence of people crawling near the sensor, respect the
following condition:
110° field of vision
50° field of vision
5.4.6 Configuration 3 (sensor downwards)
To guarantee optimum performance, respect the following conditions:
110° field of vision
31
LBK System | Instruction manual v1.3 SEP 2019 | LBK-System_instructions_en v1.3 | © 2018-2019 Inxpect SpA
