AirLive VoIP-111A How To Configure

Hide thumbs Also See for VoIP-111A:

How to configure VoIP Gateway?

There are two modes to configure the VoIP environment: SIP Proxy and Peer

to Peer, you can accord to your actual required to choose the mode to work

on. Please refer the below for more detail configuration.

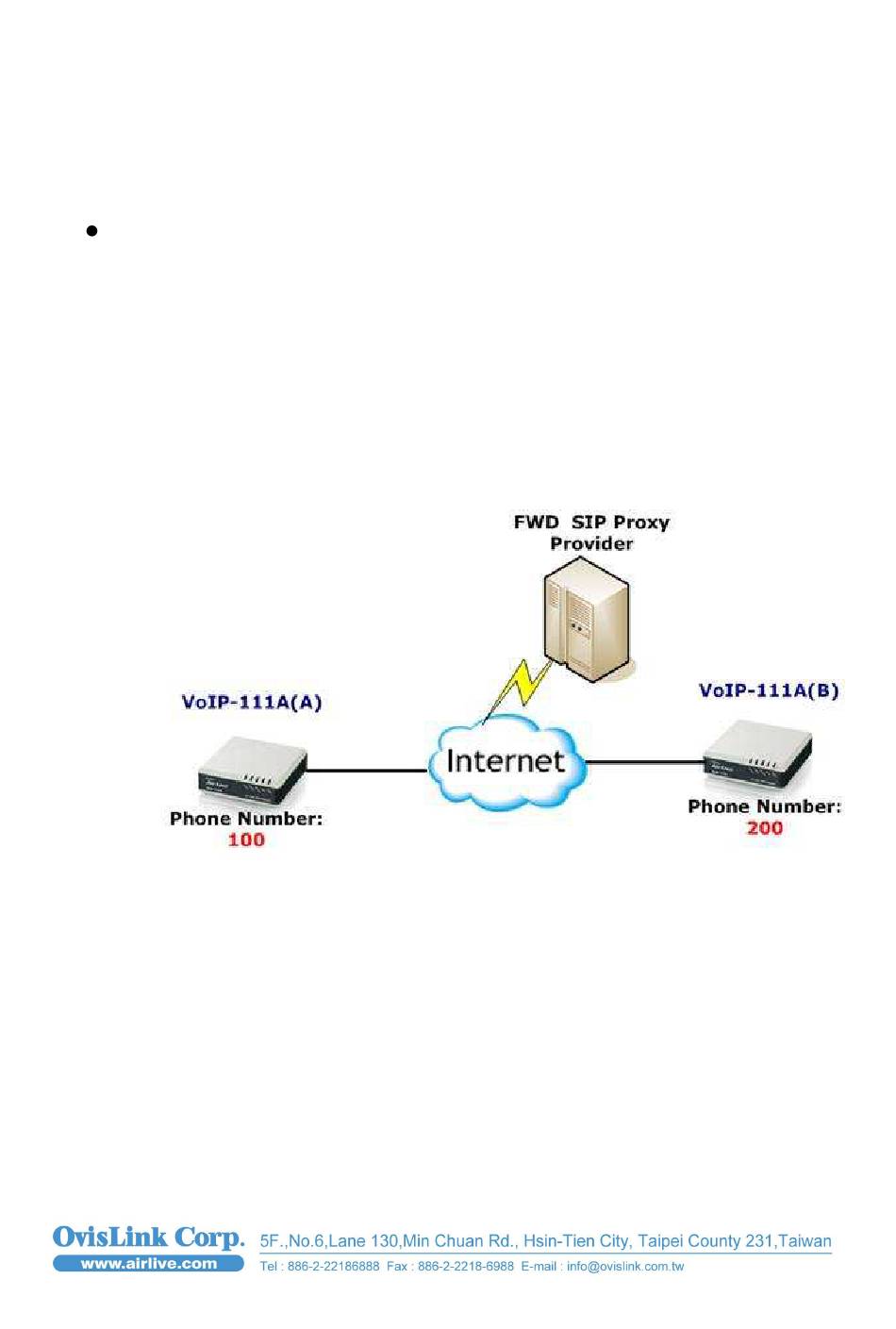

A SIP VoIP network requires a "SIP proxy server" to act as the central

controller.

The best way to use SIP device is either to register with a free

public VoIP server such as FWD / IPtel or to register with a local ITSP

(Internet Telephony Service Provider) in your country.

If you want to use the SIP Proxy Mode, you will need to type your SIP

account into your Device.

※For example:

Table of Contents

Do you have a question about the VoIP-111A and is the answer not in the manual?

Page 1 How to configure VoIP Gateway? There are two modes to configure the VoIP environment: SIP Proxy and Peer to Peer, you can accord to your actual required to choose the mode to work on. Please refer the below for more detail configuration. SIP Proxy Mode: (Register to SIP Proxy Server) A SIP VoIP network requires a “SIP proxy server”...
Page 2 A type of network in which each workstation has equivalent capabilities and responsibilities. In VoIP network, to call out to other point is by IP address. Generally, our VoIP-111A supports the “Phone Book” feature. For example, so when you dial “1#” the device should search phone book, if...
Page 3 How to How to configure VoIP Gateway not got match number will send out 1. not got match number will send out 1. -------------------------------------------------------------- -------------------------------------------------------------- For single side installation: For single side installation: Feature1: How to make a phone call How to make a phone call When your ATA is configured properly, you can make a phone call to your When your ATA is configured properly, you can make a phone call to your...
Page 4 How to configure VoIP Gateway? Call Hold: You can push the Hold key to hold the current call for a while, then push Hold key again to keep talking. 3-way conference: If you want to make 3-way conference call, you can make a phone call to the first phone number.
