L

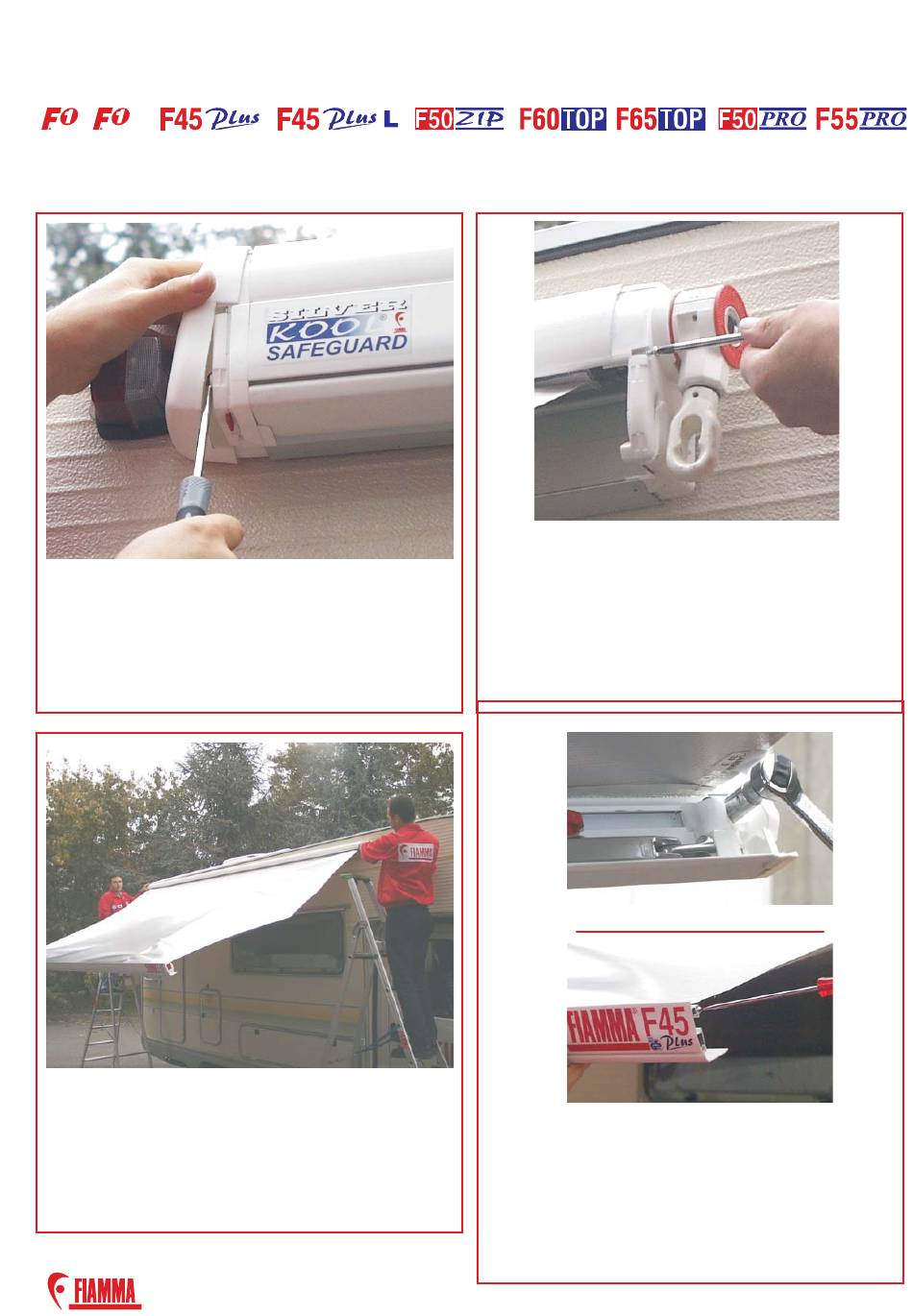

4.1 Remove both end caps with a screw
driver.
4.1 Die beiden Abdeckkappen mit einem
Schraubenzieher lösen und abnehmen.

4.3 Remove the case cover.

4.3 Das Oberteil der Markisenkassette
abnehmen.
®
®
Awning Repair Instructions
Markisenreparaturanleitung
GB Changing the canopy.
DE Auswechseln des Markisentuches
®

4.2 Unroll the awning open about 30cm

and remove the front screws on right side
inner end cap. Remove screws on left side
also.
4.2 Markise ca. 30cm ausdrehen und die
vordere Schraube der beiden Endstücke
lösen
4.4 Loosen boltz on leg supports using a
13mm wrench and slide legs out of rail.
Remove the screws which hold the canopy
in the rail.
4.4 Die Stützfüße abbauen und die
Tuchführungsschrauben ausdrehen.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fiamma F1L

  • Page 1 Awning Repair Instructions Markisenreparaturanleitung ® GB Changing the canopy. DE Auswechseln des Markisentuches 4.2 Unroll the awning open about 30cm and remove the front screws on right side 4.1 Remove both end caps with a screw inner end cap. Remove screws on left side driver.
  • Page 2 4.7 Das Tuch aus der Führung schieben. ATTENTION: the canopy must be centered on the lead bar Achtung: Das Tuch muß an beiden Seiten den gleichen Abstand haben ® ©Copyright FIAMMA S.P.A. 05-2001 All rights reserved. TS-03 Page 5-5 ®...
