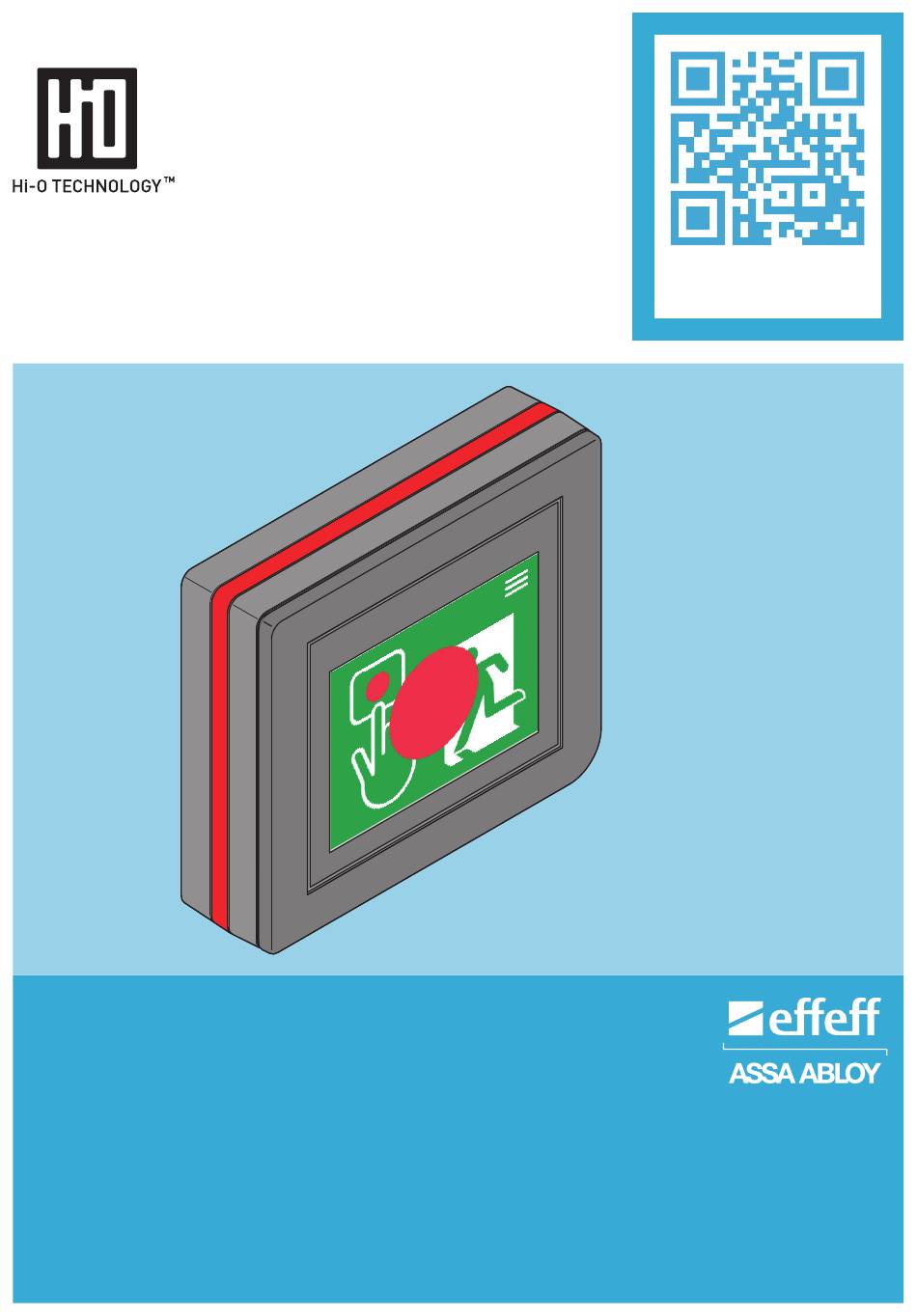

- Page 1 Escape route technology www.assaabloy.de ePED ® display door terminal 1386D10 Installation and Operating Instructions ASSA ABLOY, the global leader D0117001 in door opening solutions...
- Page 2 ® is a registered trademark of ASSA ABLOY Sicherheitstechnik GmbH. Open Source Licenses ASSA ABLOY Sicherheitstechnik GmbH has the source code of the software used in the scope of Open Source licenses (such as FreeRTOS™, newlib, lwIP) available on request: http://www.assaabloy.com/com/global/opensourcelicense/...
-
Page 3: Table Of Contents
Table of contents Notes ..........4 About this manual . -
Page 4: Notes
Notes About this manual Target group The product must be installed and configured by an electrical engineering specialist. Assembly work must be carried out by a specialist in the relevant trade or suitably qualified personnel depending on the type of work. Meaning of the symbols Danger! Safety notice: Failure to observe these warnings will lead to death or serious... -
Page 5: Safety Instructions
Danger due to faulty commissioning: In order to ensure the safety of the product, commissioning must be performed by a qualified person. ASSA ABLOY Sicherheitstechnik GmbH offers training for qualification in the requisite skills. Danger due to faulty maintenance: The owner is responsible for correct instal- lation and functional inspection of the product and connected components. -
Page 6: Intended Use
EltVTR. Deviating uses or device combinations not described in the approval are not permitted. ASSA ABLOY Sicherheitstechnik GmbH can provide the necessary planning informa- tion for approved solutions and the device combinations required for your application. -
Page 7: Fitting And Installation
Note! Choose uniform identification for avoidance of errors: In order to avoid errors and for a clearer overview during installation and maintenance, ASSA ABLOY Sicher- heitstechnik recommends uniform identification and colour coding of the cable cores Tab. 1 and Fig. 1. - Page 8 Fig. 1 : Terminal strips Connections J1 J2 8 7 6 5 CAN_H CAN_L SYSCON 4 ln V ln V – 1 2 3 4 Fire alarm system V Fire alarm system V – Syscon 4 plug connection CAN_H CAN_L Fire alarm: Fire alarm: Temporary...
- Page 9 Fig. 2: Interface for Example locking systems 1386S00 connection Escape door strike 331 – 24 V J1 J2 8 7 6 5 Other locking elements can SYSCON 4 be connected Door terminal instead of the 1 2 3 4 1386D10 escape door strike 331 (manual...
- Page 10 Mounting/removing the display Fitting and installation...
- Page 11 Fitting and installation...
-
Page 12: Hi-O Technology™ Devices
Hi-O Technology™ devices Note! Untested devices may have differing functionality: Hi-O Technology™ devices not listed in the compatibility list have not been tested in the device combination and may cause different functional processes. This applies especially for activa- tors. The maximum number of components may not be exceeded: A maximum of four terminals (Emergency Open module 1386D00) and eight interfaces for locking systems 1386S00 can be connected. -
Page 13: Configuration
Configuration Note! Commissioning: All Hi-O technology™ devices must be connected to the bus for the configuration. Then the operating voltage is switched on. Subsequently connected devices are only recognised after renewed connection of the operat- ing voltage. At least one Emergency Open module is always necessary for operation of the RWT locking module. -
Page 14: Login With Authorisation Code
Login with authorisation code Enter authorisation code – lock, unlock, reset Press the symbol Fig. 4: Enter an authorisation code. Numeric keypad Delete any numbers entered by mistake for entering an with the [ ] key. authorisation code Confirm the entry with the [ ] key. - Page 15 Change authorisation codes for authorisation levels Press the symbols in the following order: Enter your authorisation code. Press the System (Fig. 6) menu item. Press the User Administration menu item. The keyboard is displayed. Press one of the symbols according to an authorisation code (Tab. 2, page 13). Assign a new authorisation code.
-
Page 16: Commissioning
Warning! Danger due to faulty commissioning: In order to ensure the safety of the product, commissioning must be performed by a qualified person. ASSA ABLOY Sicherheitstechnik GmbH offers training for qualification in the requisite skills. Safety requirements during commissioning include: ·... -
Page 17: Installation Wizard
Installation wizard The installation wizard is provided for simple configuration and the system test, particularly for the initial commissioning. A sequence of routines is processed automatically. Once it has been started, the installation wizard dialogue shows a series of confirmation messages and user prompts. Note! Process the entire dialogue sequence: If a dialogue is closed via the Cancel key or if the displayed action is not carried out, the installation must be started again... -
Page 18: Operation
Operation Emergency switch function Pressing the red area in the centre initiates a release and a pre-alarm is triggered. The emergency switch function is triggered if the display is pressed. Fig. 8 : Press the Emergency Open switch ca. 4 mm Operation... -
Page 19: Display
Display Illuminated ring with status display The integrated illuminated ring enables easy identification of the current status of the es- cape door even with a large angle of vision. Release delay display (option) If the release delay is activated, the remain- ing wait time is displayed in seconds. -
Page 20: Alarms And Messages
Alarms and messages Alarms Acoustic alarm There are alarm statuses where an audible signal is activated, such as a pre-alarm. The acoustic alarm takes place for a configured time span and is automatically switched off again, or can be switched off with a control command. If another alarm should occur, the acoustic alarm is restarted. -
Page 21: Messages
Messages Tamper message/fault message The following statuses trigger a tamper message for a locked door: Tamper alarm has · The door is open and/or Locked status · the escape route locking system is unlocked. The door remains in Locked status. The tamper status can be reset centrally or at the door. -
Page 22: Maintenance
· The safe function must be tested by a trained qualified expert at least once per year. · Requirements established by inspection authorities must be complied with. ASSA ABLOY Sicherheitstechnik GmbH offers training for qualification in the requi- site skills. In particular: ·... - Page 23 Performing maintenance with system test wizard The system test wizard is used during the annual maintenance. It is a support programme for the manual door check (Fig. 9). Press the symbols in the following order: Enter your authorisation code. Press the System menu item. Press the Maintenance menu item.
-
Page 24: Resetting To Factory Settings
Resetting to factory settings If reset to factory settings, changes to operating data are lost. The device must then be configured. Within the first five seconds after switching on the operating voltage, the device can be reset to the factory settings. Reset to factor y settings Switch off the voltage supply for at least Fig. -
Page 25: Technical Data
Technical data Feature Characteristic Tab. 3: Technical data Power supply via external mains adapter Power supply V 24 V (+/–10 %) SELV Power consumption 200 mA Maximum release delay after pressing of the Emergency Open button · DIN EN 13637 ·... -
Page 26: Warranty, Disposal
Warranty, disposal Warranty The statutory warranty periods and Terms and Conditions of Sale and Delivery of ASSA ABLOY Sicherheitstechnik GmbH apply (www.assaabloy.de). Updated information www.assaabloy.de Updated information, such as reports on current fire testing, can be found online at: www.assabloy.de Disposal Dispose of lock in accordance with the EPD (Environmental Product Declaration). - Page 28 ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience ASSA ABLOY Sicherheitstechnik GmbH Bildstockstraße 20 72458 Albstadt DEUTSCHLAND albstadt @ assaabloy.com Tel. + 49 7431 123-0 Fax + 49 7431 123-240...
