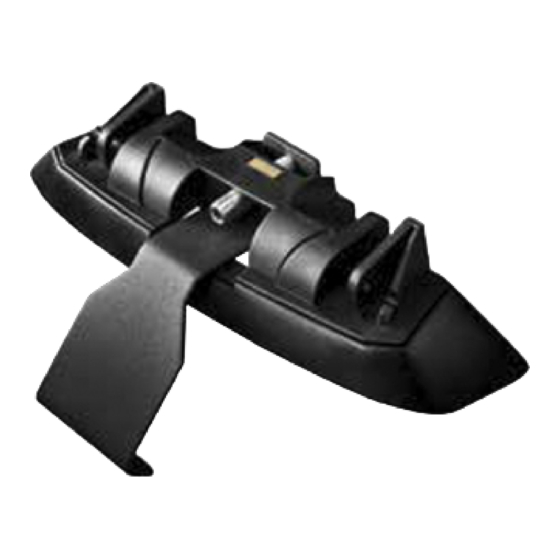

Summary of Contents for Prorack K681

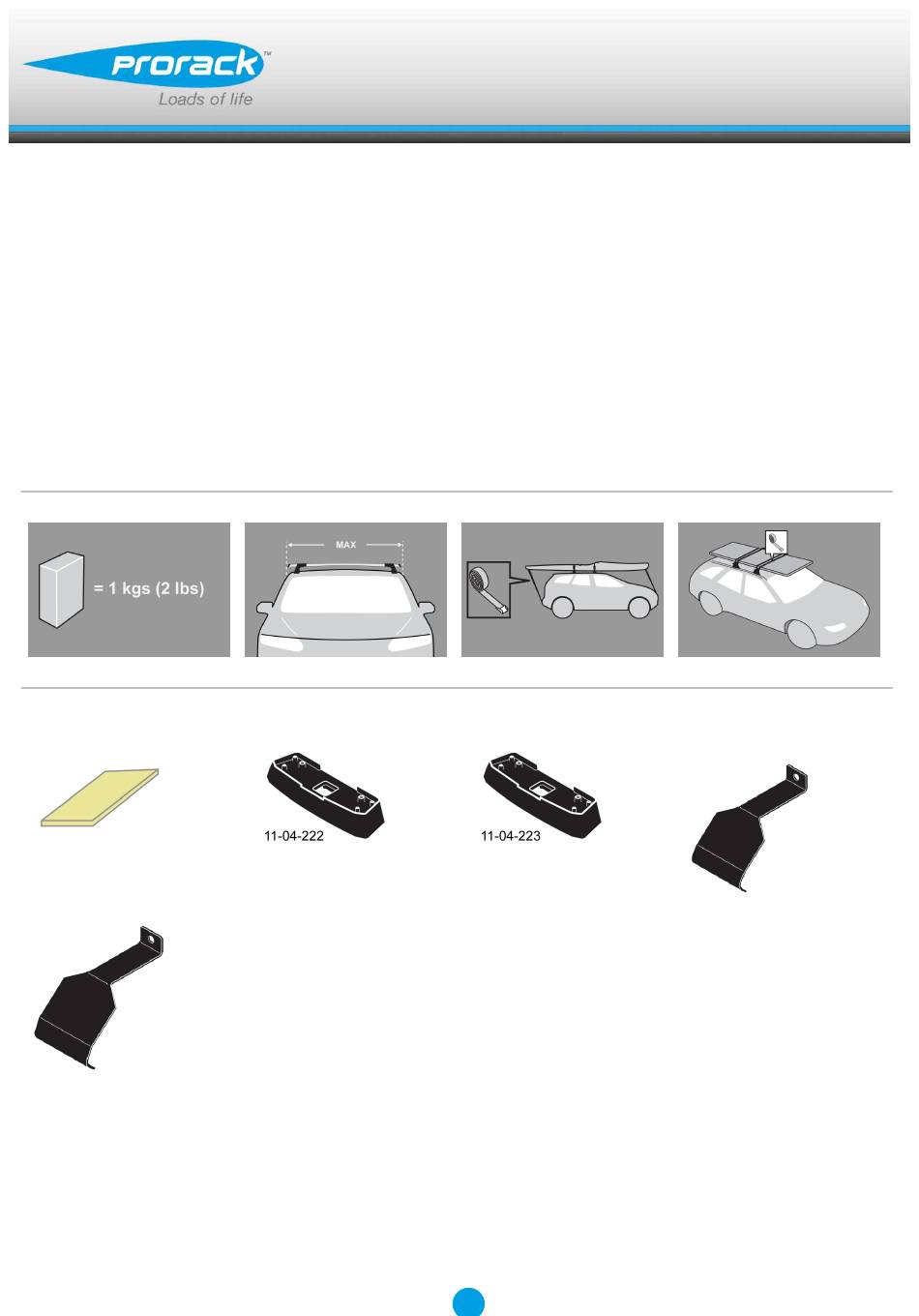

- Page 1 K681 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K681 MAX kgs (lbs) Mitsubishi Mirage Space Star, 5dr Hatch 13-15 75 kgs (165 lbs) 75 kgs (165 lbs) Mirage, 5dr Hatch 13-15 75 kgs (165 lbs) 75 kgs (165 lbs) Mirage, 5dr Hatch 13-15 75 kgs (165 lbs)
- Page 3 Fitting Kit K681 Mirage Space Star, 5dr Hatch 13-15 (CN) -345mm 360mm 835mm 780mm -13 -9/16ths" 14 3/16ths" 32 7/8ths" 30 11/16ths" Mirage, 5dr Hatch 13-15 (NZ) -345mm 360mm 835mm 780mm -13 -9/16ths" 14 3/16ths" 32 7/8ths" 30 11/16ths" Mirage, 5dr Hatch 13-15 (AU)
-
Page 4: First Time Installation
Fitting Kit K681 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K681 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K681 Fitment Clamps directly to edge of roof under the doors Please check the front of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 7 Fitting Kit K681 Place rubber pads (supplied with fitting kit) on the vehicle roof. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Remove locking screw.
- Page 8 Fitting Kit K681 Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 976A B = 977A Attach clamp to each leg.
- Page 9 Fitting Kit K681 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle.
- Page 10 Fitting Kit K681 Tighten locking screw on both legs evenly, 2.5 Nm (1.8 ft lb). Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 11 Fitting Kit K681 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K681 Maintenance Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. - Page 13 Fitting Kit K681 Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads. Check unit is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
