- Page 1 K677 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K677 MAX kgs (lbs) Mitsubishi Outlander LS 2WD, 5dr SUV 12-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Outlander ES, 5dr SUV 12-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Outlander LS, 5dr SUV 12-+ 75 kgs (165 lbs)
-
Page 3: First Time Installation

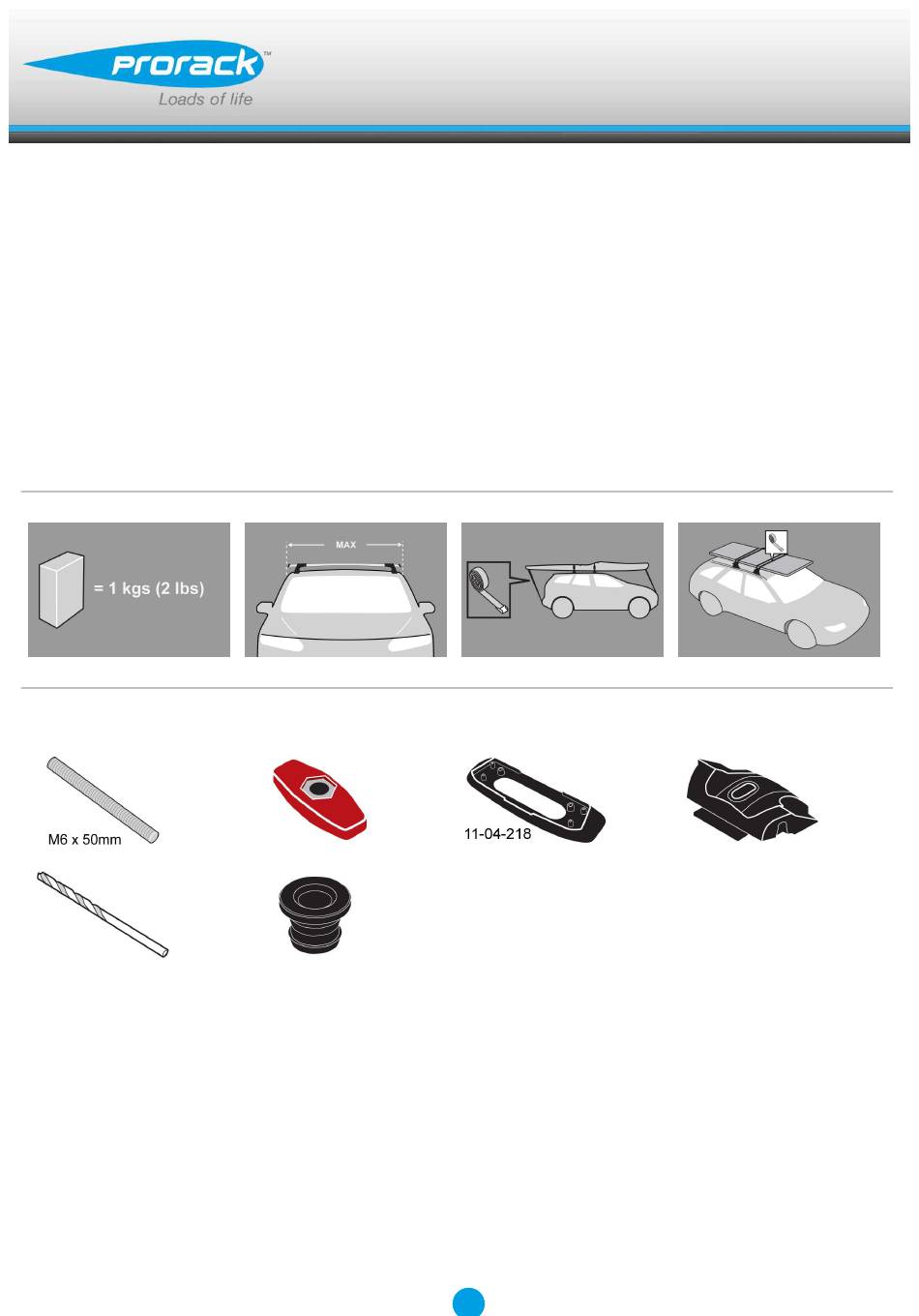

Fitting Kit K677 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K677 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 5 Fitting Kit K677 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K677 Fitment Pull ditch moulding back towards you. Mark reference point with a pen. Use drill bit supplied, to drill holes in marked positions.
- Page 7 Fitting Kit K677 Re-install rubber ditch mould in roof channel. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Refer to the underside of the pad for the part number.
- Page 8 Fitting Kit K677 Place crossbars on pads ensuring the pads fit into the holes underneath the foot and the grubscrew pass through the hole in the foot. Repeat for all four positions. Tighten the red plastic knob. The side with the nut showing should be facing up.
- Page 9 Fitting Kit K677 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K677 Maintenance Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. - Page 11 Fitting Kit K677 Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads. Check unit is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.
- Page 12 Fitting Kit K677 Outlander, 5dr SUV 12-+ (NZ) -300mm 450mm 960mm 910mm -11 -13/16ths" 17 11/16ths" 37 13/16ths" 35 13/16ths" Outlander, 5dr SUV 12-+ (AU) -300mm 450mm 960mm 910mm -11 -13/16ths" 17 11/16ths" 37 13/16ths" 35 13/16ths" Outlander, 5dr SUV 12-+ (AU)
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
