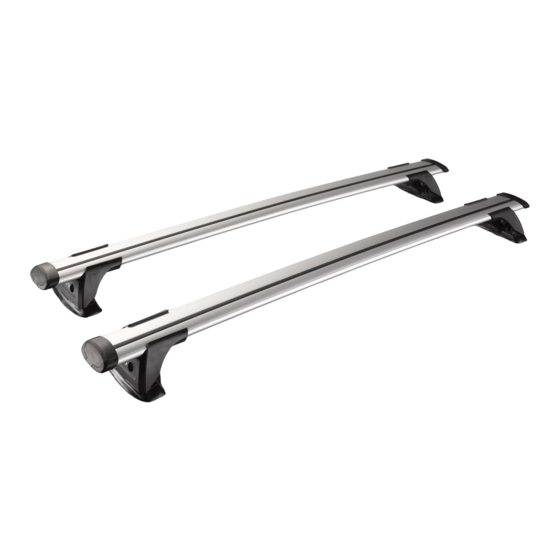

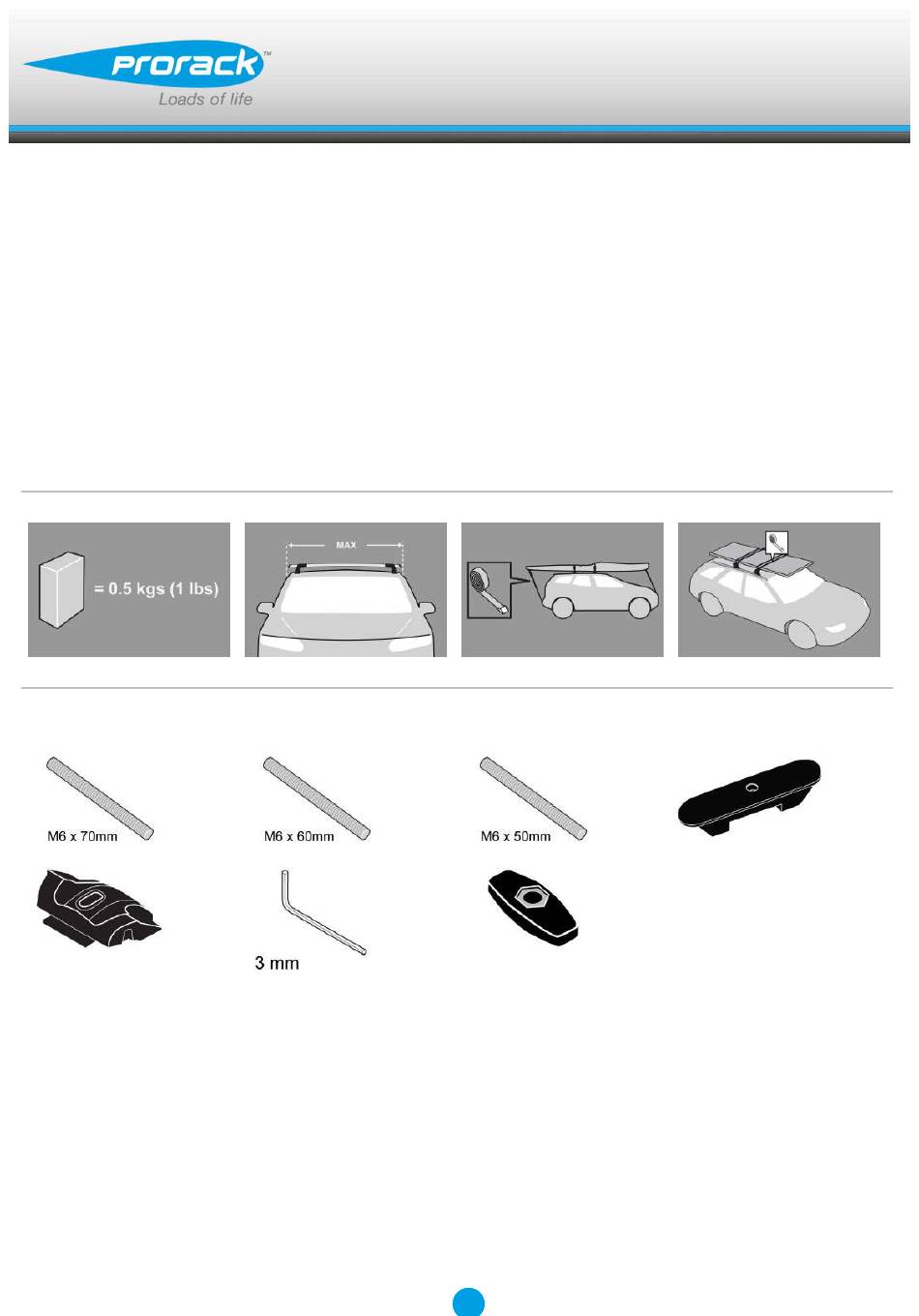

- Page 1 K602 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 8H...
- Page 2 Fitting Kit K602 MAX kgs (lbs) Peugeot 4008, 5dr SUV 12-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Mitsubishi ASX, 5dr SUV 10-+ 50 kgs (110 lbs) 50 kgs (110 lbs) ASX, 5dr SUV 10-+ 50 kgs (110 lbs)
- Page 3 Fitting Kit K602 4008, 5dr SUV 12-+ (EU) -210mm 490mm 875mm 820mm -8 -1/4ths" 19 5/16ths" 34 7/16ths" 32 5/16ths" ASX, 5dr SUV 10-+ (EU) -210mm 490mm 875mm 820mm -8 -1/4ths" 19 5/16ths" 34 7/16ths" 32 5/16ths" ASX, 5dr SUV 10-+ (CN)
- Page 4 Fitting Kit K602 S Max, 5dr MPV Jun 06-+ (EU) -90mm 650mm 1020mm 980mm -3 -9/16ths" 25 9/16ths" 40 3/16ths" 38 9/16ths" S Max, 5dr MPV Jun 06-+ (CN) -90mm 650mm 1020mm 980mm -3 -9/16ths" 25 9/16ths" 40 3/16ths" 38 9/16ths"...
-
Page 5: First Time Installation
Fitting Kit K602 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K602 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 7 Fitting Kit K602 Tighten adjusting screw to 2.5 Nm (1.8 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K602 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Open or remove fixed-point covers. Fitment to Ford Focus ONLY. Remove fixed-point covers by turning the plastic screw with flat-head screw driver (1).
- Page 9 Fitting Kit K602 Select grubscrews and screw into the vehicle's fixed points. A = Ford S-Max B = Not applicable unless advised C = Mitsubishi ASX / Outlander Sport / Ford Focus / Citroen C4 Aircross / Peugeot 4008 Do not over tighten.
- Page 10 Fitting Kit K602 Place crossbar foot over grubscrews. Attention: Fitment for Mitsubishi ASX / Outlander Sport / Citroen C4 Aircross / Peugeot 4008 Rubber pad should be tucked inside the roof step as shown Tighten the plastic knob. The side with the...
- Page 11 Fitting Kit K602 Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 12: Maintenance
Fitting Kit K602 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K602 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
