KyungDong KDB-161GOM Installation Manual page 31

G O M - 영 문

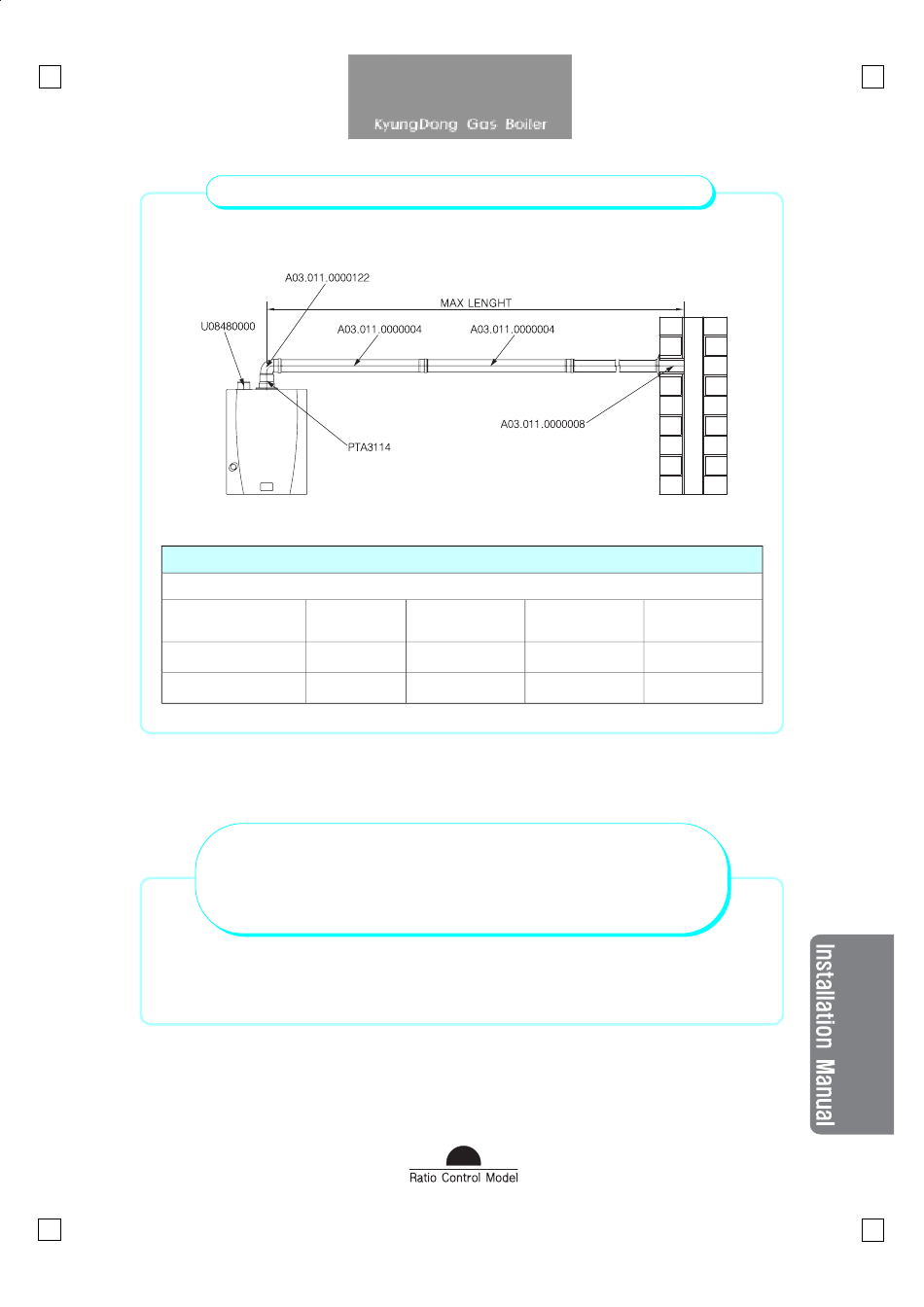

Horizontal separate flue system 80/80mm – Type B33
The TOTAL MAXIMUM LENGTH of this configuration is 24.90m
Flue system length Up to 5.00m
131GOM–161GOM
201GOM- 251GOM
Calculation of the maximum length with the single bends
Choice of the correct diaphragme with the bends included
For both these two arguments please follows the instructions contained in the
previous paragraph.
CHOICE OF THE DIAPHRAGM
Between
5.00m~12.70m
φ41mm φ48mm
φ48mm
included in the flue system
in the flue system
61
Between Between
12.70m~18.30m 18.30m~23.90m
φ52mm
Without
φ52mm
Without
