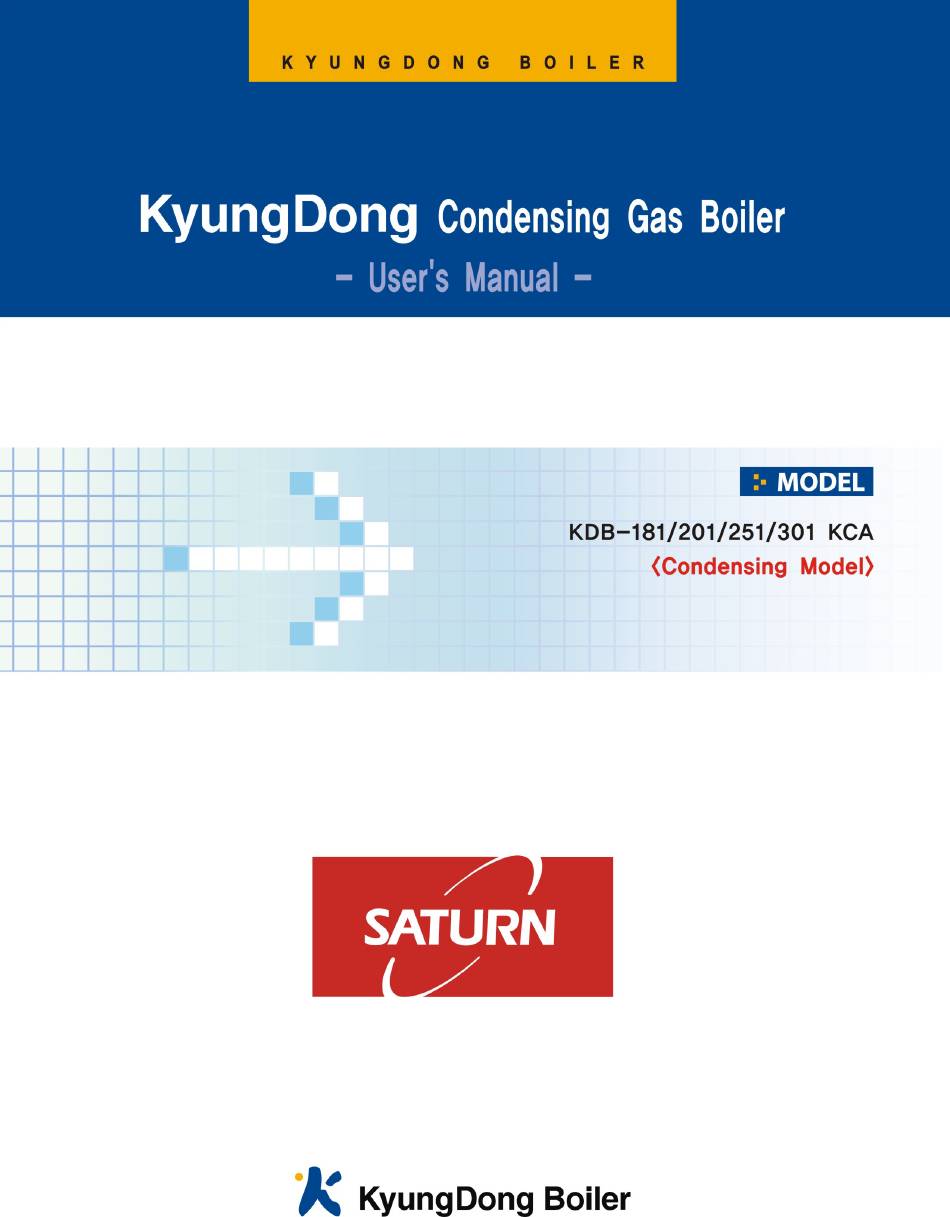

Page 2: Table Of Contents
G O M - 영 문 Contents 1. General Warnings -------------------------------- 1 2. Safety Warnings---------------------------------- 2 3. Names of Components --------------------------- 8 4. Proper Operation-------------------------------- 10 5. Advantages of the Product----------------------- 27 6. Checkpoints before Making Repair Work Order----- 29 ※... -
Page 4: General Warnings
G O M - 영 문 General Warnings This instruction booklet is considered an integral part of the product and must be delivered to the user together with the appliance. It must follows the appliance also in every passage of property. Store the booklet in a safe place and read it carefully before using the appliance as it contains important information to ensure safe installation, operation and maintenance. -
Page 5: Safety Warnings
G O M - 영 문 Safety Warnings The cautions issued by this user’s manual include critical information for the safety while using the product. When the user fails to adhere to the following requirements can cause death, serious damages, and a great property loss. ‘Danger’... - Page 6 G O M - 영 문 Please check for gas leaks often. In case of gas leakage leading to an explosion that can cause serious bodily injury or property damages. Do not place any flammable items or materials near the boiler. If there are any flammable materials such as gasoline, they may cause an explosion or fire.
- Page 7 G O M - 영 문 Please use after checking the type of gas used. When gas other than the gas type specified on the lower portion of the right side of the boiler, a fire or explosion may occur due to improper combustion. Please do not touch the flue or pipe while the boiler is turned on and operating.
- Page 8 G O M - 영 문 Please inquire about product installation, transfer, and additional Repair to the dealerships where you purchased the product. Improper installation of gas boiler may cause an accident. Please use caution when utilizing the hot water. When using the hot water, water at a high temperature may flow suddenly depending on the opening of the valve.
- Page 9 G O M - 영 문 Please do not operate the boiler with wet hands. This may cause an electric shock. When the fuse is broken, do not replace the fuse on your own. This may cause an electric shock. Please request a service repair.
- Page 10 G O M - 영 문 Please completely drain the water from the pipes when not in use for a prolonged period. Pipes may freeze when not in use for a prolonged period(Draining Method Refer to Page 15). Please submit a request for inspection of your unit at least once a year.
-
Page 11: Names Of Components
G O M - 영 문 Names of Components KDB-131/161/201 GOM Pressure Gauge : Indicates the pressure inside the heating pipes. In case the pressure falls below 0.5bar open the water replenishing valve to automatically refill the water to 0.5~1.5bar. Water Drain : For a vacation or not at home for a prolonged period of time, to guard against freezing, the water is excreted through this part. - Page 12 G O M - 영 문 KDB-251 GOM Pressure Gauge : Indicates the pressure inside the heating pipes. In case the pressure falls below 49kPa (0.5kgf/cm ), open the water replenishing valve to automatically refill the water to 49~147kPa (0.5~1.5kgf/cm Water Drain : For a vacation or not at home for a prolonged period of time, to guard against freezing, the water is excreted through this part.
-
Page 13: Proper Operation
G O M - 영 문 Proper Operation Before operation Check the gas type When using the unit for the first time or moved, check whether the type of gas specified in the product and the supplied gas match(LPG/Natural Gas). The type of gas is indicated on the data plate located on the lower right portion of the boiler. - Page 14 G O M - 영 문 Check the gas valve Please check to make sure the Gas shut- off valve connected to the boiler is open. Check each room valve connection Please check to make sure each room valve connected to the boiler is open. When in Use Warning Caution for Gas Leaks...
- Page 15 G O M - 영 문 Cautions to Prevent Freezing during the Winter Months Exposed pipes must be insulated. Please insulate the exposed pipes. It is safer to protect the pipes exposed to outside elements with insulation material. Particularly, water supply pipe and hot water pipes must be insulated.
- Page 16 G O M - 영 문 Long-Term Non-Use (Water Draining Method) Switch-off the main switch upstream the boiler. Please switch- off the master switch upstream the boiler. Shut-off the Gas Supply. Please close the Gas shut- off valve Shut-off the Water Supply. Please close the water supply valve.
- Page 17 G O M - 영 문 How to maintain the Unit Switch-off the power supply. Please switch- off the master switch upstream the boiler. Shut-off the gas supply. Please close the gas shut- off valve. Please keep the outside of the boiler unit clean.
- Page 18 G O M - 영 문 How to set the room temperature Proper use of the room thermostat There are two methods of heating. First is the setting of the heating water temperature in the boiler. After the adjusting of the heating water temperature in to the boiler, it detects automatically that the temperature in the installation stay ad the set value.
- Page 19 G O M - 영 문 Control Panel – Symbols and Functions burner is switched on.
- Page 20 G O M - 영 문 Start – Switching-on of the boiler Switch-on the main switch upstream the boiler Please switch- on the master switch upstream the boiler. On the display it appears “Off” Switch-on the boiler. Pressing for more than 1 second it’s possible to change the working mode of the boiler from OFF to ON and vice versa.
- Page 21 G O M - 영 문 Adjustments Water Central Heating (CH) adjustment. When the boiler is in the Heating mode the symbol on the display is always visible. Every time it’s possible to adjust the Heating temperature from 35℃ to 80℃. Pushing on the an the button in...
-
Page 22: Antifreeze Function
G O M - 영 문 Inquiry Every time it’s possible to check which are the value set in the boiler. Pushing on for less than 0.5 seconds it’s possible to see on the display (digits), in sequence, the following parameters : DHW temperature(the symbols appear). - Page 23 G O M - 영 문 Heating Mode with Outside Temperature Control (OTC)-K Factor. The OTC function is enabled if the external sensor is connected. In this case the symbol is lighted on the display. In case of external temperature probe damaged, the symbol disappears, and the boiler works in CH mode without OTC function included.
- Page 24 G O M - 영 문 Heating Filter Cleaning ▣ When the rooms are not as well heated as before, this may indicate that there are contaminants inside the pipes to require heating filter cleaning. Stop Power Supply. Please switch- off the master switch of the boiler.
- Page 25 G O M - 영 문 Detach Heating Filter. After removing the fixing clip of the heating filter, please detach the heating filter from the unit. WARNING When detaching the heating filter, be careful not to burn yourself since there may be hot water seepage(When it is difficult to do this by the customer, please contact your local boiler dealer).
-
Page 26: Water Supply
G O M - 영 문 Water supply. Please open the water supply valve. Power Supply Connection. Please switch- on the main switch upstream the boiler. Gas Supply Please open the gas shut- off valve. - Page 27 G O M - 영 문 How to Refill the Water Periodically check the pressure gauge of the boiler. The inside pressure has to be included between 0.5 – 1.5bar(0.5 – 1.5kg/cm If the pressure is not included in this range, please procede as follows.
- Page 28 G O M - 영 문 Open all the distributor valve. Open the water filling valve located on the bottom of the installed boiler by turning it to the left. When the pressure gauge of the boiler shows a pressure of 1.0bar (1.0kg/cm close the water filling valve by turning it to the right.
- Page 29 G O M - 영 문 Open the gas shut-off valve. After the air is automatically released from the boiler and the pipes by the automatic air- vent, insufficient water indicated again. Then please refill the water by following the avobe steps.
-
Page 30: Advantages Of The Product
G O M - 영 문 Advantages of the Product Pleasantness and Saving Operation With current ratio control method, it maintains the optimal heating conditions. It provides more than enough hot water at a constant temperature and since there is a separate heat exchange device, it saves gas. -
Page 31: Safety Device
G O M - 영 문 Safety Device 1. Burner Safety Device(Flame Detector) 8. Gas pressure Control Device (Gas When the flame is extinguished and the Control Valve) boiler does not restart due to automatic Even when the gas pressure increases suppression and blowing suppression, the that are supplied to the boiler, it can gas route can be automatically blocked. -
Page 32: Checkpoints Before Making Repair Work Order
G O M - 영 문 Checkpoints before Making Repair Work Order In case of any malfunction, before calling an A/S center or dealer for repairs, please check the following items. If the display shows some error code number, after treating each of the status, restart the unit (switch on the unit again and a minute after the inspection occurs, you must press restart in order to start the unit). - Page 34 k c - 영 문 MEMO...
