Forced Draught Balanced Flue Construction
Type C13 – C33 – C43 – C53 – C63 – C83
GOM Family boilers may be installed with many different flue type systems :
B33 – C13 – C33 – C43 – C53 – C63 – C83
For the installation of the different kind of flue system, plese follow carefully the
following instructions.
In order to maintain the high efficiency level of the boiler and in order to avoid any
look out of it, when the length of the flue system is not the longest, it's essential to
isert a diaphragm between.
The boiler and the flue system as swoed in the following drafts.

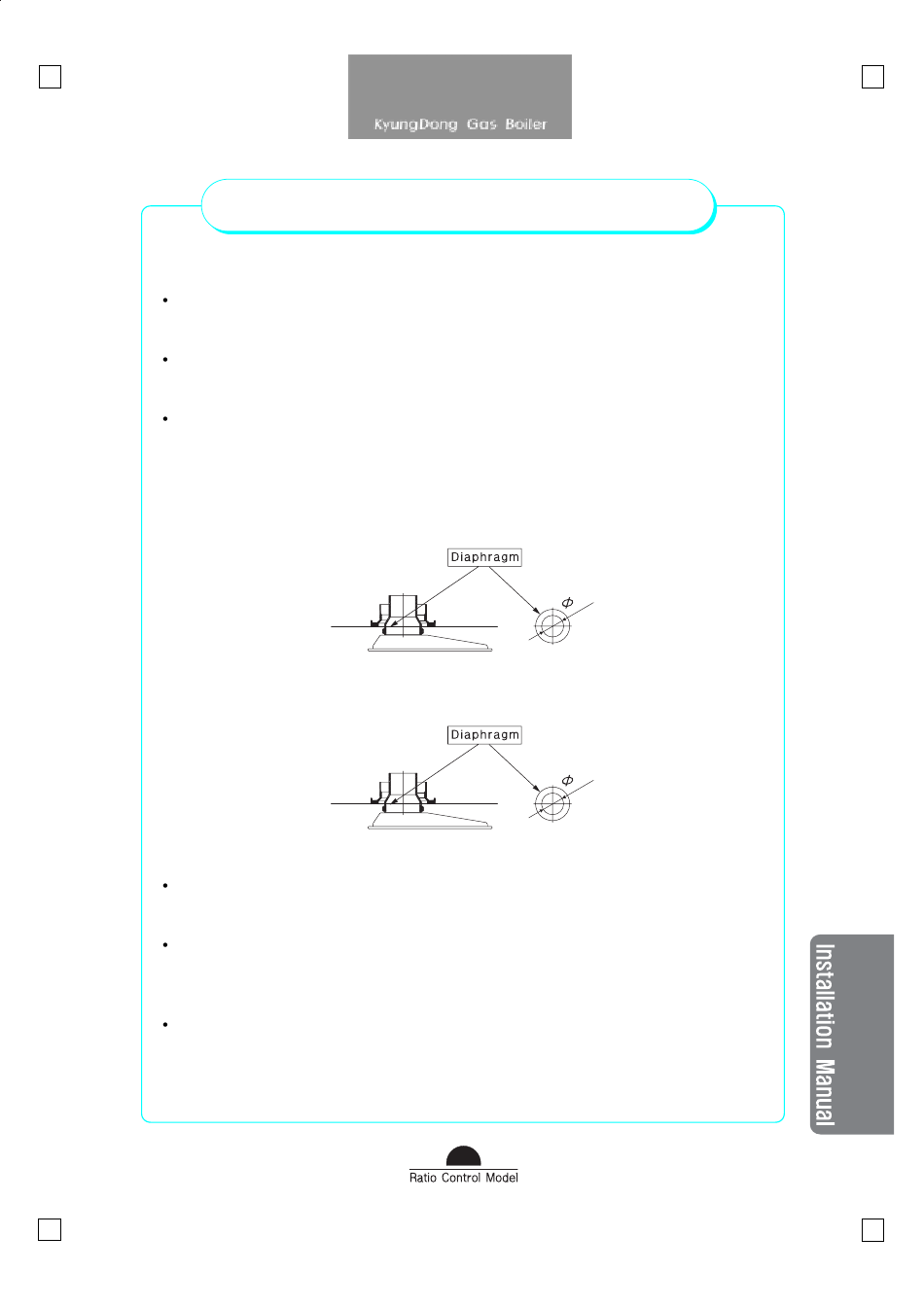

< Diaphram : For the Concentric Fluse System adapter>
< Diaphram : For the Separate Flue System Adapter>
For the choise of the correct diaphragme, please look at the schemes related to
each drawing in the following solutions.
Please pay attenction to the fact that 131GOM - 161GOM boilers with a very short
length of separate flue system, need a small 41 mm diaphragm, not requested by
201GOM and 251GOM boiler.
Please, follows carefully the information included in the tables related to each
drawing.
