8

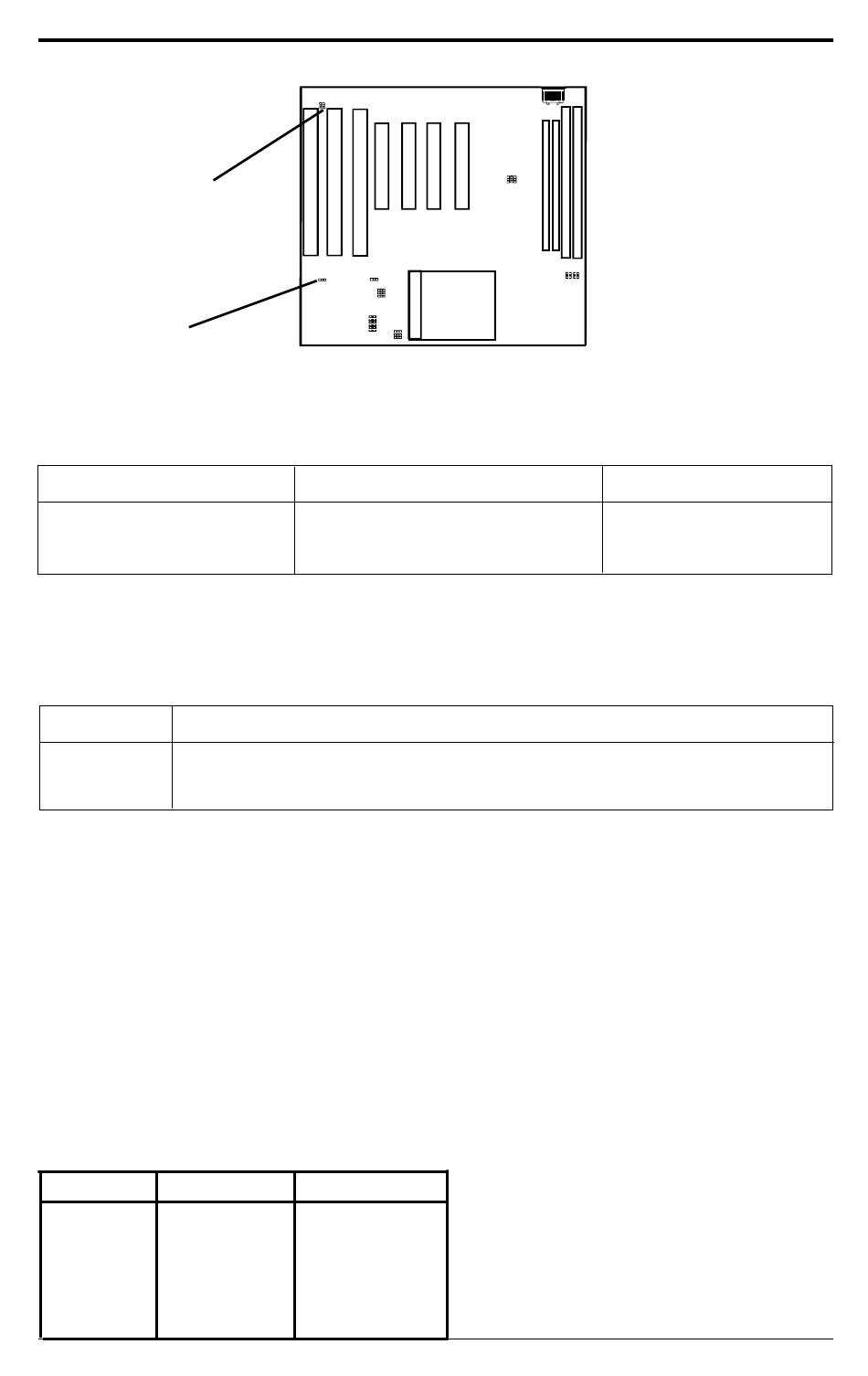

JP36
JP37
JP31

JP25, JP26, JP27, JP28 - DIMM Voltage Selection

DIMM 1 (JP25, JP26)
1-2*
2-3
For maximum system reliability it is recommended that DIMMs of the same voltage are
used for DIMM1 and DIMM2.

JP31 - CMOS Clear

JP31
CMOS
1-2*
Normal operation
2-3
Clear

JP36, JP37 - Reserved Jumpers

Reserved jumpers are pre-installed in the factory. They should NOT be altered by the
users.
* = Default setting.

Memory Configuration

The table 1 and table 2 shows the possible memory combinations. The motherboard will
support Fast Page Mode (FPM), Extended Data Output (EDO), Burst Extended Data
Output (BEDO) and Synchronous DRAM (SDRAM) DIMMs.
Table 1 (SIMM Configurations)
SIMM1
SIMM2
4MB
4MB
8MB
8MB
16MB
16MB
32MB
32MB
64MB
64MB
Technical Reference Booklet
DIMM 2 (JP27, JP28)
1-2*
2-3
Total
8MB
16MB
32MB
64MB
128MB
DIMM Voltage
3.3V
5V
