Installation and Operating Manual
LCD Charge Control S-VCC
Convenient, easily operable control and operating element, appropriate for Charging Converters of series VCC1212-30 ...
VCC1212-90 from model 2018, equipped with 6-pole. plug-type connection female connector "Display".
It indicates the status of the charging converter, the current charging phase, the voltage of board and starter battery, as
well as the instantaneous charging current. The current draw of the charging converter can be reduced/limited temporarily
at the touch of a button.
The large, clearly arranged display is illuminated and offers excellent legibility with very low current consumption. Retrofit
of the unit, also subsequently, is easily possible by means of the plug-and-play connection, and due to the compact design,
it can be installed at almost any location.
The dimensions of the unit are perfectly adapted to the VOTRONIC modular system. The VOTRONIC modular system
includes the tank display units (fresh and sewage water as well as feces), the LCD series (battery computer, voltmeter and
thermometer), as well as the switch and fuse panels.
Please read these mounting instructions and the operating manual completely and attentively.
Particularly observe page 4 "Safety Regulations and Appropriate Application",
prior to starting connection and start-up.

Installation and Connection

The small mounting depth (approx. 22 mm) of the electronic system allows flush mounting into furniture boards to ensure,
that an optimum installation place can always be chosen. Please use the delivered drilling jig, which has been designed to
consider combination with further display panels.
If possible, the rear cutout opening should be covered with electrically nonconducting material to ensure efficient
protection of the electronic system and full utilization of the storage space, which might be located behind.
The delivered control cable of 5 m length is used to connect the display unit to the VOTRONIC Charging Converter. The
connection is executed ready to be plugged in, and the cable should be laid according to the safety instructions.
Now the unit is ready for operation.
If the length of the control cable is not sufficient for connection of the connection unit, the cable extension of 5 m length,
order No. 2005, being available as accessory can be used. The total cable length is then 10 m.
The delivered control cable is specially designed and tested for this application. Faultless operation of the
unit is only ensured, if the delivered control cable is used. Cables in similar execution might produce
failures, which are not covered by the guarantee.

Initial Start-up

Connect the charging converter according to the manual, and it is ready for operation, make the plug-type connection
between display and charging converter. Now, also the LCD Charge Control S-VCC is ready for operation.

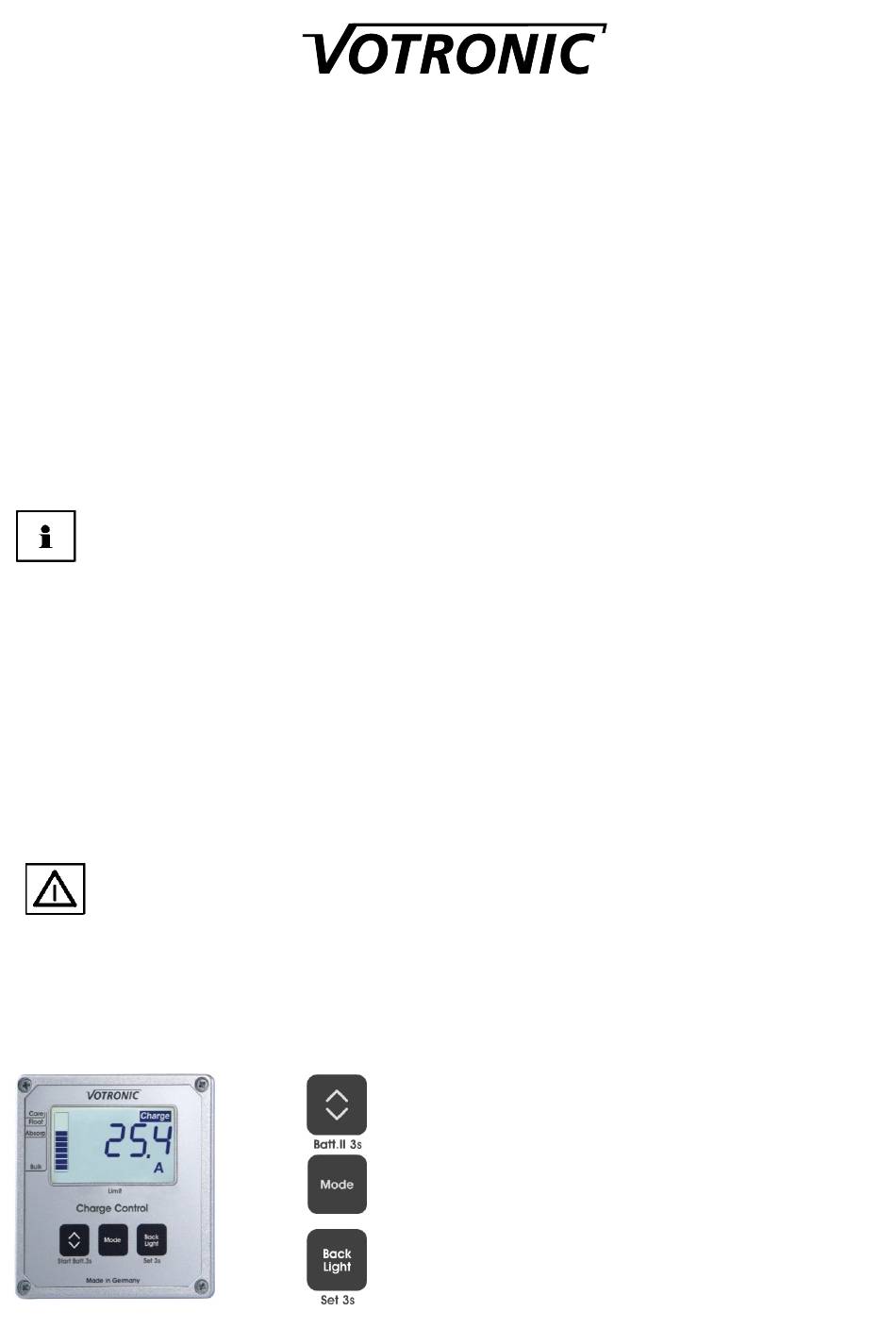

Operation

Key 1: Next page of display,
Display of voltage starter battery (3 s).
Key 2: AC Power Limit
Key 3: Illumination on/off.
Brightness Setting (3 s)
Order No. 1248
