In-Ground Fitting Kit includes:
A - (1)
In-Ground Fitting
60 cm /
2 ft.

STEP 1 Preparation

Dig an approximate 60 cm/2 ft. deep by 90 cm/3 ft. wide hole. Insert in-ground fitting and
pour mixed concrete into hole around fitting. Make sure in-ground plate is level.
Note Do not get slurry in the screw threads. Either apply tape over the holes on both sides
of the fitting or place the stem bolts in the threads and remove them when the concrete is
almost set.

STEP 2 Bolt Internal Stem

Once concrete has cured, attach internal stem to in-ground fitting using (5) stem bolts and
hex wrench. Note Internal stem, stem bolts and hex wrench are included with umbrella.
Tighten all (5) stem bolts with supplied hex wrench.
You are now ready to install your umbrella!

REMOVAL:

To remove your umbrella for seasonal storage or to more it to another base plate or
in-ground fitting, simply undo stem bolts and remove the umbrella from the in-ground fitting.

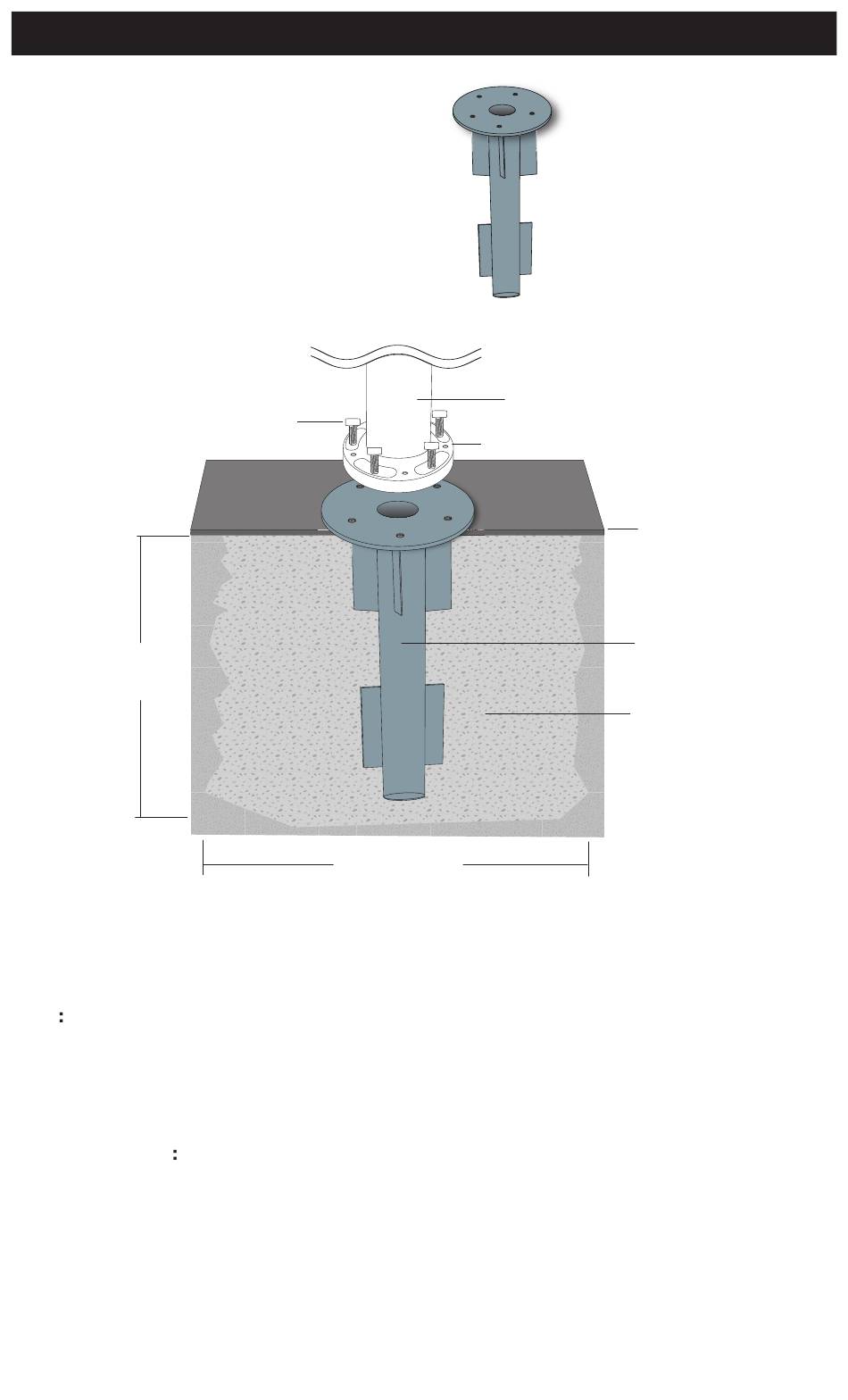

IN-GROUND FITTING KIT (MKG17)

Stem Bolt
90 cm / 3 ft.
A -
Internal Stem
Stem Plate
Ground
Level
In-Ground
Fitting
Concrete
Footing
2
