Summary of Contents for Shademaker Astral-TC Series

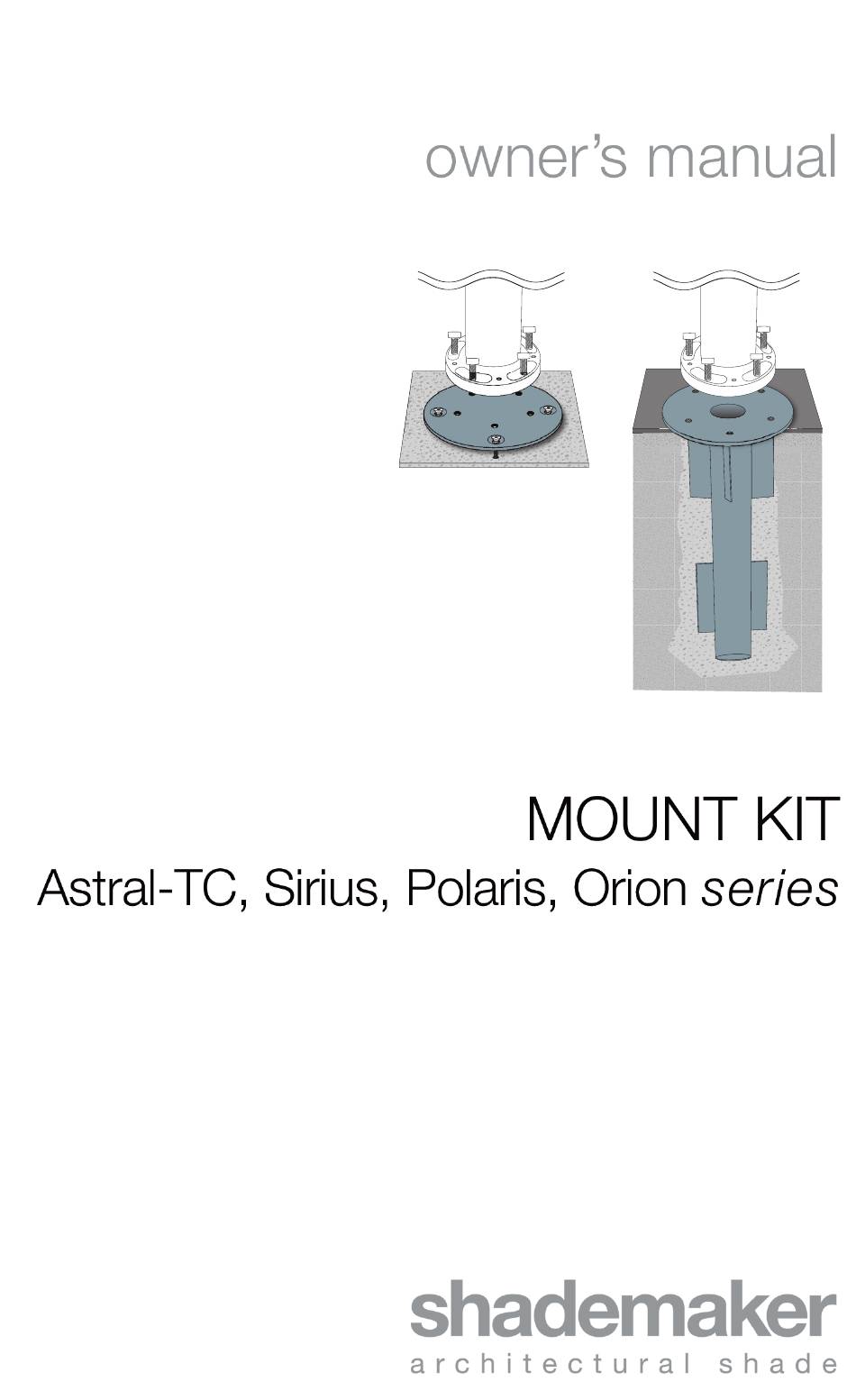

- Page 2 CONCRETE MOUNT KIT (MKC17) Concrete Mount Kit includes: A - (1) Base Plate B - (4) Countersunk Bolt Anchors C - (4) Expansion Concrete Anchors Internal Stem Stem Bolt Stem Plate Base Plate Countersunk Countersunk hole Bolt Anchor Concrete At least Expansion 6”...
- Page 3 IN-GROUND FITTING KIT (MKG17) In-Ground Fitting Kit includes: A - (1) In-Ground Fitting Internal Stem Stem Bolt Stem Plate Ground Level In-Ground 60 cm / Fitting 2 ft. Concrete Footing 90 cm / 3 ft. STEP 1 Preparation Dig an approximate 60 cm/2 ft. deep by 90 cm/3 ft. wide hole. Insert in-ground fitting and pour mixed concrete into hole around fitting.
- Page 4 DISCLAIMER: ALL MOUNT KITS SHOULD ONLY BE PROFESSIONALLY INSTALLED BY A LICENSED CONTRACTOR DULY QUALIFIED TO PERFORM THE INSTALLATION. SHADEMAKER ASSUMES NO LIABILITY AND EXPRESSLY DISCLAIMS ANY RESPONSIBILITY FOR INJURIES OR DAMAGES ARISING FROM OR RELATED TO THE FAILURE OF BUYER TO HAVE ANY MOUNT KIT INSTALLED BY A LICENSED PROFESSIONAL CONTRACTOR.
