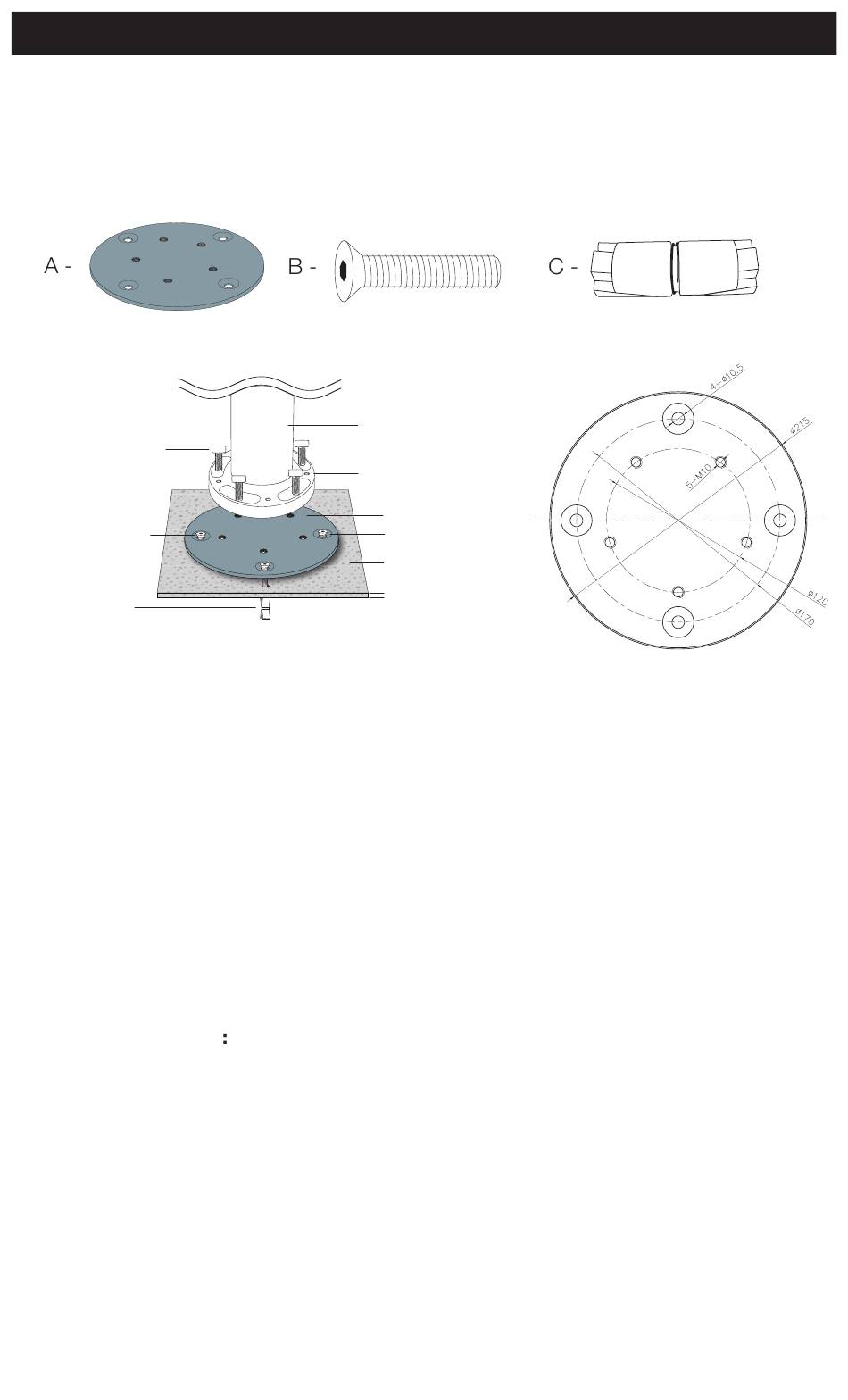

Concrete Mount Kit includes:
A - (1)
Base Plate
B - (4) Countersunk
C - (4)
Expansion Concrete Anchors
Stem Bolt
Countersunk
Bolt Anchor
Expansion
Concrete Anchor

STEP 1 Bolt Expansion Concrete Anchors

Final installation hardware should be determined by and professionally installed by a license
contractor. During installation, make sure all base plate holes align with drilled holes in
concrete. Clean out each hole of all debris. Insert (4) expansion concrete anchors into holes
and tap the fastener lightly with a hammer to ensure they are seated correctly. When using
supplied expansion concrete anchors, make sure thread side is down, towards the bottom of
the hole and they are flush with the concrete slab.

STEP 2 Bolt Base Plate

Set base plate over expansion concrete anchors. Insert (4) countersunk bolt anchors through
base plate and into the expansion concrete anchors. Tighten all (4) countersunk bolt anchors
with hex wrench (not included).
E

STEP 3 Bolt Internal Stem

Align internal stem holes with base plate holes. Insert (5) stem bolts and tighten using hex
wrench to secure. Note Internal stem, stem bolts and hex wrench are included with
umbrella.
You are now ready to install your umbrella!

REMOVAL:

To remove your umbrella for seasonal storage or to move it to another base plate or
in-ground fitting, simply undo the stem bolts and remove the umbrella from the base plate.
1

CONCRETE MOUNT KIT (MKC17)

Bolt Anchors
Internal Stem
Stem Plate
Base Plate
Countersunk hole
Concrete
At least
6" thick
