CHAPTER 5
Commissioning and Test Software
Click OK. The following screen appears, only if the card is not found at the factory
default Base address of 544.
Use the mouse to select the base address of the PCL-812 interface card which has been
set and checked in accordance with the procedure detailed in Chapter 3 of this manual.
If you do not know the Base Address, clicking on Locate will identify and set it
automatically. ( Note that Locate can only be used if there is only one PCL-812 board
installed in your PC ).
Having selected the correct base Address, click on Close . The screen shown below
appears.
2.6

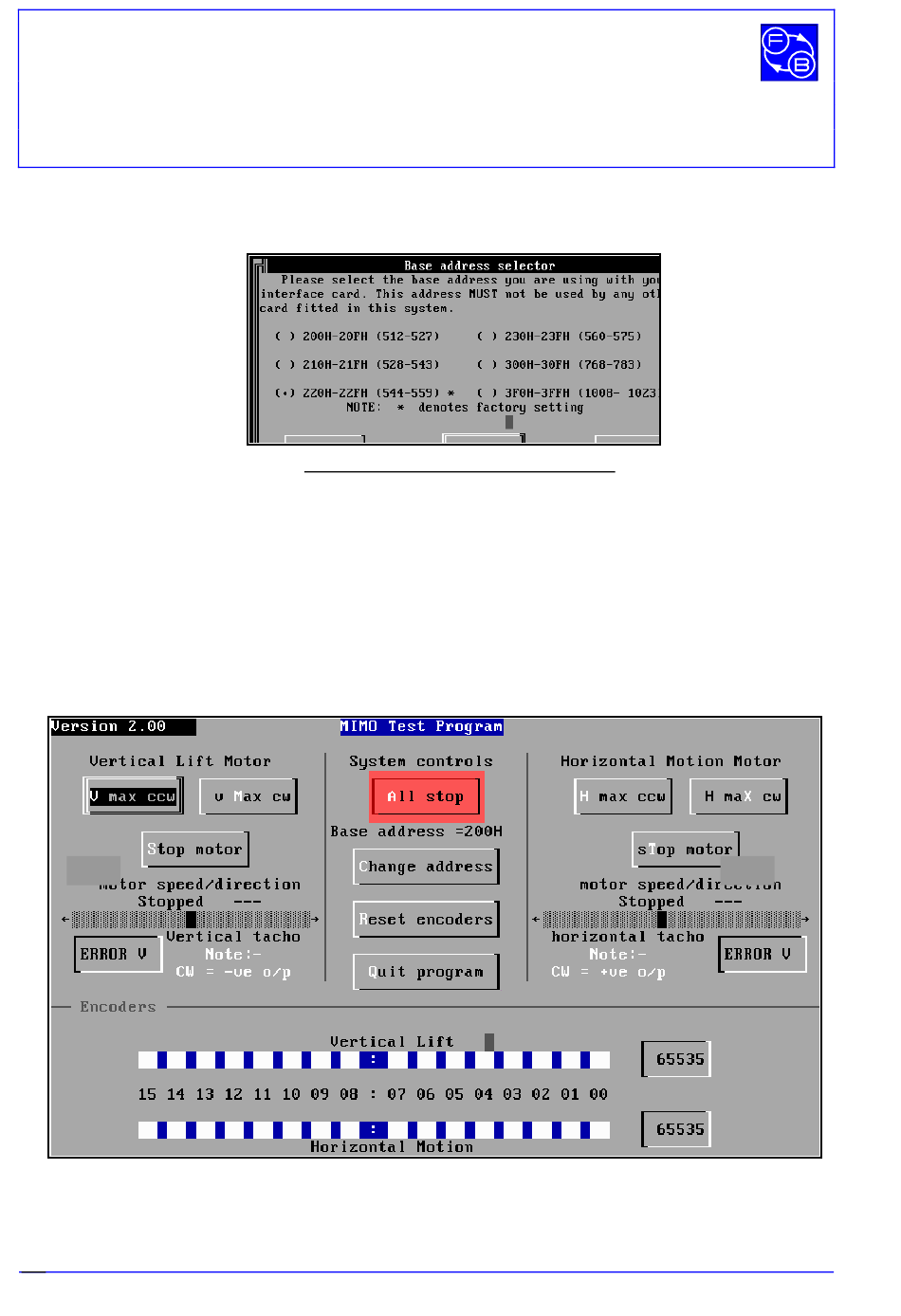

Fig. 5.3: Main screen of MIMO Commissioning and Test Software
5-2
Fig. 5.2: PCL-812 Base address Selection
