CHAPTER 4
PCL-812 Card Installation
Following the installation of the interface card into your PC, you are now ready to close
the PC case and connect the ribbon cables to the 33-220 Twin Rotor MIMO System.
Refer to Fig 6.2 below for details.
DIN Socket for
remote on/off
switch
O
Mains power input
Connectors and
Switches
ON / Off switch
Voltage selector
Mains power
Switch on
4-2
Voltage Selector
On
I
Power switch -
connects power to
the controller
Off

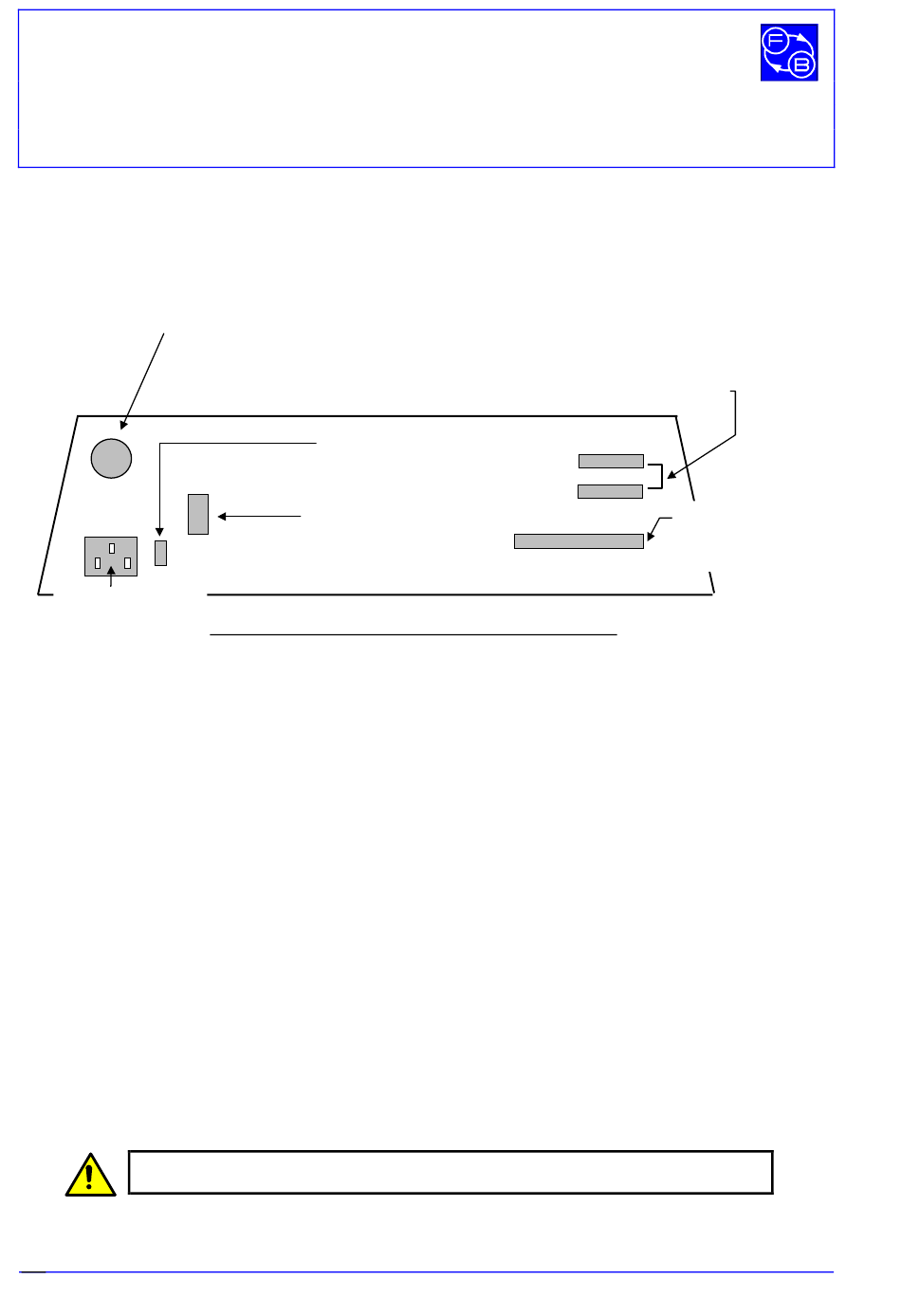

Fig 4.2: Twin Rotor MIMO System 33-220 - Rear Panel
The connectors and switches are located at the rear of the 33-220
unit.
The sockets for the ribbon cables are on the back of the 33-220 unit.
The 20-way connector from CN1 connects to the topmost connector
on the 33-220. The 20-way connector from CN2 connects to the next
connector and the 40-way connector connects to the lowest
connector on the 33-220.
Connect the remote On/Off switch unit DIN connector to the rear of
the 33-220.
Set the voltage selector for the correct voltage in your area.
Connect the mains power cable to the 33-220 and plug in to your
mains supply.
Switch on the mains supply to the 33-220 and your PC. Switch the
33-220 illuminated power switch on. If this switch does not light up
check the mains power cable and mains power supply.
Do not at this stage press the round green start button.
TWIN ROTOR MIMO SYSTEM
Installation and Commissioning
Narrow ribbon 20
way cables from
PC interface card
Wide ribbon 40
way cable from
PC interface card
33-007-0
