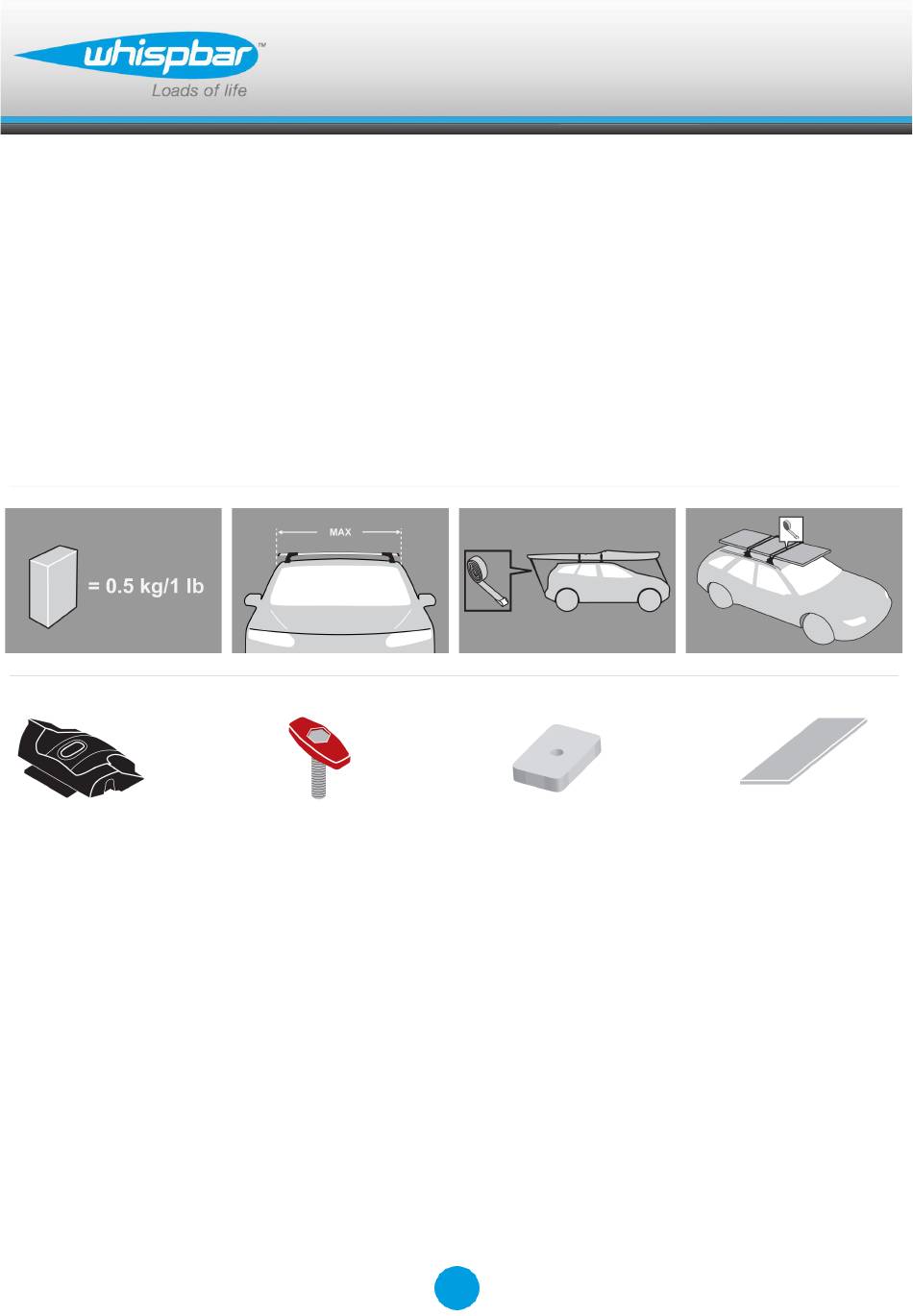

- Page 1 K462 Fitting Kit GB Fitting Instruction for Accessory Revision No:...
- Page 2 Fitting Kit K462 MAX kgs MAX kgs W/P WHD W/P WHD Citroen Jumpy , 5dr Van 07-+ Jumpy , 5dr Van 07-+ Jumpy , 5dr Van 07-+ Fiat Scudo , 5dr Van 07-+ Scudo , 5dr Van 07-+ Scudo , 5dr Van 07-+...
-
Page 3: First Time Installation
Fitting Kit K462 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type B crossbar fitted. They also apply to type A, C and D. - Page 4 Fitting Kit K462 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Set bars to length (refer to the crossbar instructions for crossbar adjustment).
- Page 5 Fitting Kit K462 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K462 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Apply protective strip as shown. Trim if required. Fitment Slide nut under fixed-point mount...
- Page 7 Fitting Kit K462 Place crossbar foot over fixed-point mount. Tighten the red plastic knob. Do not over tighten. Ensure the red plastic knob is in the position shown when fully tightened. Repeat for all legs.
- Page 8 Fitting Kit K462 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 9: Maintenance
Fitting Kit K462 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Fitting Kit K462 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
- Page 11 Fitting Kit K462 Citroen Jumpy , 5dr Van 07-+ (AU) 600mm 1380mm 2100mm 1080mm 1055mm 1035mm 23 5/8" 54 5/16ths" 82 11/16ths" 42 1/2" 41 9/16ths" 40 3/4" Citroen Jumpy , 5dr Van 07-+ (EU) 600mm 1380mm 2100mm 1080mm 1055mm 1035mm 23 5/8"...
