PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE! IF YOU
DO NOT UNDERSTAND THE INSTRUCTIONS, OR DO NOT FEEL THAT YOU CAN FOLLOW THEM
SAFELY, CONTACT A QUALIFIED CONTRACTOR.THE WARRANTY WILL BE HONOURED IF
ACCOMPANIED BY AN ORIGINAL SALES RECEIPT, AND ONLY IF THE INSTRUCTIONS HAVE BEEN
FOLLOWED EXACTLY. To acquire missing parts please visit www.everik.com/parts.html or call
1-866-604-6966.

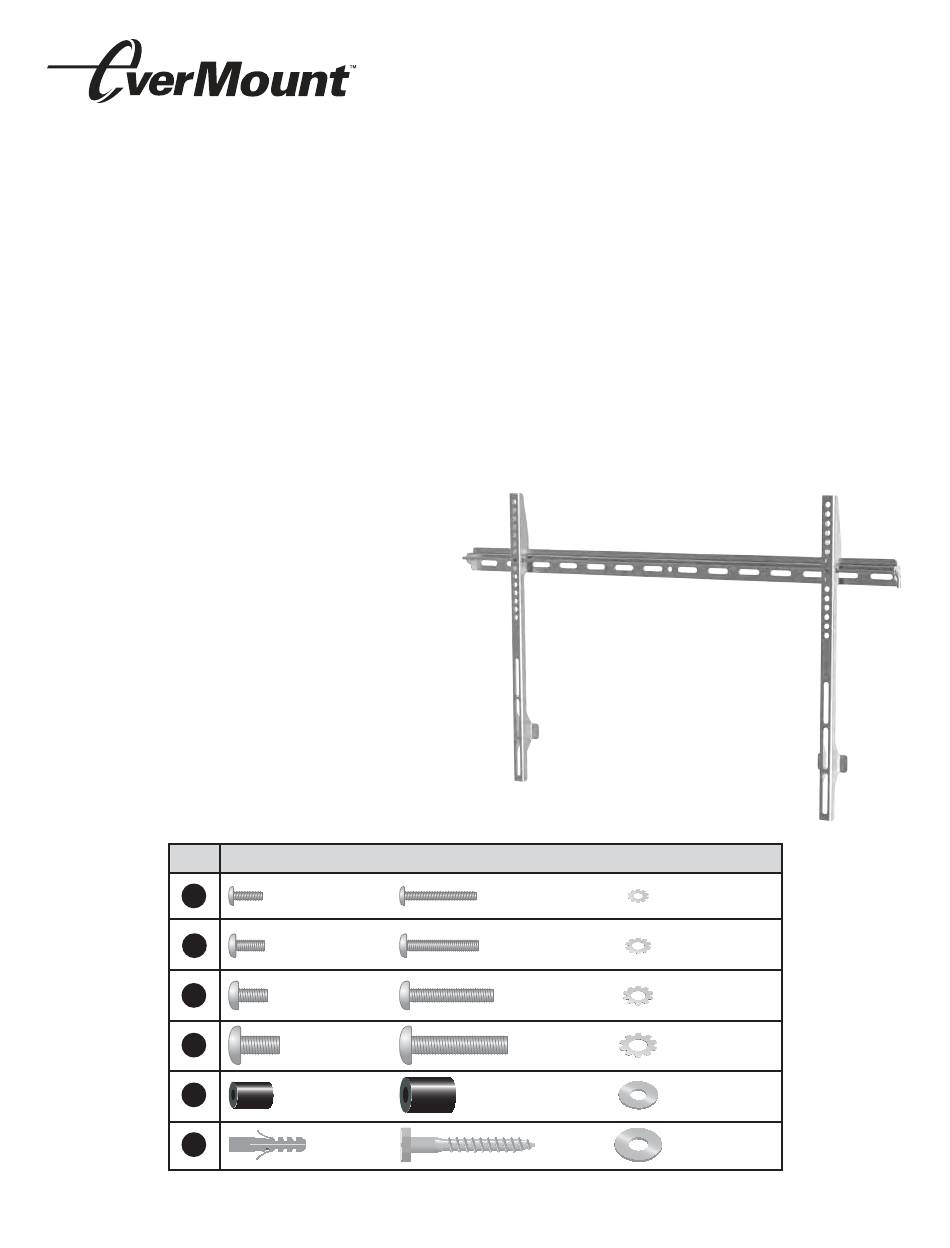

• The EverMount EM-LPF60B is designed to mount a TV panel onto a vertical wall. Hardware
for mounting to a wood stud is included. For mounting to any other surface, contact a qualified contractor.
• The wall or mounting surface must be capable of supporting the combined weight of the mount and the
display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. A minimum of two people are required for this installation.
Failure to use safety gear and/or attempting this installation alone can result in property damage, serious
injury, or death.
• Follow all instructions and recommendations regarding adequate ventilation and suitable locations for
mounting your display. Consult the owner's manual for your display for more information.
• This product will hold flat screens 37 to 60 inches and weighing up to 165 lbs.
Tools Required
Phillips Head Screwdriver
•
Ratchet or Driver with 1/2" (13 mm) Socket
•
Portable or Electric Drill
•
1/4" (6 mm) Drill Bit and Stud Finder
•
3/8" (10 mm) Masonry Bit for Concrete Installation
•
Bag #
1
2
3
4
5
6
INSTRUCTIONS
(Ref ) Item (Qty)
(A) M4x12 Bolt (x4)
(D) M5x12 Bolt (x4)
(G) M6x12 Bolt (x4)
(J) M8x16 Bolt (x4)
(M) Small Spacer (x4)
(P) Concrete
Anchor (x6)
(B) M4x30 Bolt (x4)
(E) M5x30 Bolt (x4)
(H) M6x35 Bolt (x4)
(K) M8x40 Bolt (x4)
(N) Large Spacer (x4)
(Q) M8 x 63
Lag Bolt (x6)
EM-LPF37B
EM-LPF60B
(C) M4 Lock Washer (x4)
(F) M5 Lock Washer (x4)
(I) M6 Lock Washer (x4)
(L) M8 Lock Washer (x4)
(O) M6 Washer (x4)
(R) Lag Bolt
Washer (x6)
1
Advertisement
Related Manuals for Evermount EM-LPF37B
Summary of Contents for Evermount EM-LPF37B
- Page 1 FOLLOWED EXACTLY. To acquire missing parts please visit www.everik.com/parts.html or call 1-866-604-6966. • The EverMount EM-LPF60B is designed to mount a TV panel onto a vertical wall. Hardware for mounting to a wood stud is included. For mounting to any other surface, contact a qualified contractor.
-
Page 2: Part 2 - Attaching The Arms To The Display
Part 1a - Mounting the Wall Plate to Wood Studs 1. Using a stud finder, locate and mark two adjacent studs for securing the mount. 2. Place the wall plate against the wall ensuring it is level. 3. Mark screw locations on the wall where the mount will be secured. Be sure to use the center of each stud. 4. - Page 3 Attaching the Arms to the Display Continued For displays with at For displays with curved backs... or recessed backs... Fig. 4 - Use a longer bolt and spacer for displays with curved or recessed backs. Do not use the M6 Washer (O) if you are using the M8 Bolts (J or K).
-
Page 4: Outils Requis
1 866 604-6966. • Le support EverMount EM-LPF60B est conçu pour monter un écran sur un mur vertical. Le matériel servant au montage sur montant de bois est inclus. Pour le montage sur toute autre surface, veuillez communiquer avec un technicien qualifié. - Page 5 Étape 1a – Montage de la plaque murale aux montants de bois 1. À l'aide d'un détecteur de montant, localisez et marquez deux montants adjacents pour le montage du support. 2. Placez la plaque murale sur le mur en vous assurant qu’elle soit au niveau. 3.
- Page 6 Fixation des bras à l’écran (suite) Pour les écrans avec dos Pour les écrans avec incurvé ou concave dos plat Fig. 4 – Utilisez une vis plus longue et une cale d’espacement pour les écrans à dos incurvé ou concave. N’utilisez pas la rondelle M6 (O) avec les vis M8 (J ou K).
