Conexant PT-3812 Installation Manual

Adsl modem router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3812_VER.C_STD_PK-MAN-0269

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-3812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Conexant PT-3812

Summary of Contents for Conexant PT-3812

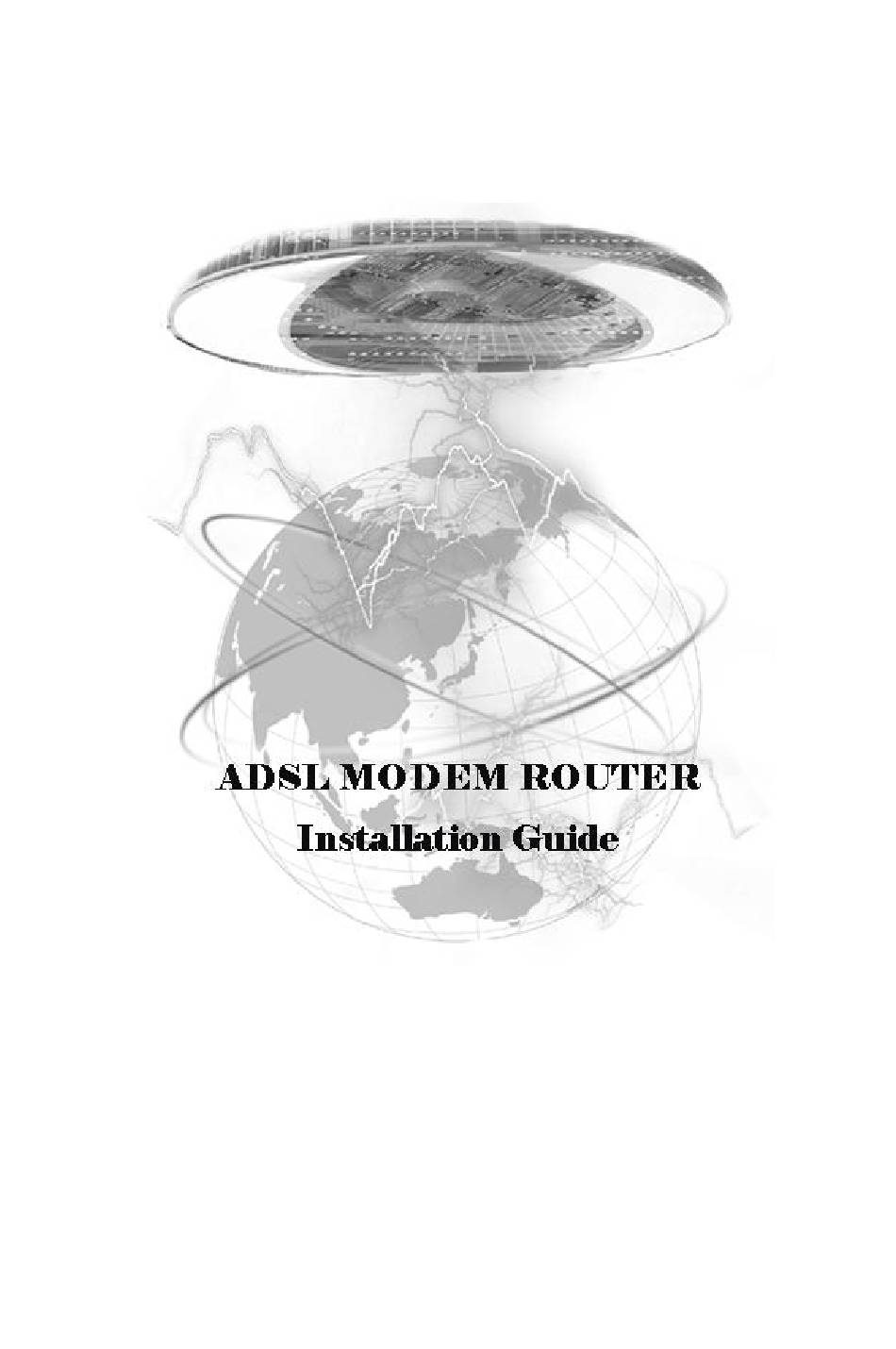

  • Page 1 3812_VER.C_STD_PK-MAN-0269...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Check and Prepare Package Checklist............Hardware Requirement..........Data Requirement............For Static IP Address user..........1.3.1 For Dynamic IP Address user........1.3.2 Chapter 2 Introduction Features................. ADSL Compliance............ATM Protocols and Encapsulations......Bridge/Router Protocols..........Management............... LEDs of Front Panel............Chapter 3 Installation Hardware Connection..........

  • Page 3: Chapter 1 Check And Prepare

    Chapter 1 Check and Prepare Package Checklist One Ethernet ADSL Router ■ One power adapter ■ One RJ45 cable ■ One USB cable ■ One RJ11 phone cable ■ One CD driv er for USB interface ■ Hardware Requirement ADSL Line from your telephone company ■...

  • Page 4: Chapter 2 Introduction

    Chapter 2 Introduction 2.1 Features Using existing twisted-pair telephone lines, ADSL technology prov ides data rates more than 100 times as fast as traditional dial-up modem deliv ers, without an interruption in telephone serv ice. With data transfer rates of up to 8 Mbps downstream and 1Mbps upstream, ADSL is the ideal solution for high-bandwidth application such as access to a corporate network, internet access and v ideo deliv ery.

  • Page 5: Adsl Compliance

    ADSL Compliance ANSI T1.413 Issue 2 ■ ITU G.992.1 (G.DMT) ■ ITU G.992.2 (G.Lite) ■ ITU G.994.1 (G.hs) ■ ATM Protocols and Encapsulations PPP ov er ATM VCMUX (RFC 2364) ■ PPP ov er ATM LLCSNAP (RFC 2364) ■ Bridged IP ov er ATM LLCSNAP (RFC 1483) ■...

  • Page 6: Management

    PAP/CHAP ■ 128 character support for PPPx username/passwords ■ DNS proxy ■ Port forwarding ■ ■ NAPT ■ ALG support (MSN Messenger 4.x, H.323(Microsoft ■ NetMeeting),AOL Instant Messenger,Windows Media Player,Real Audio, CuSeeMe 5.00, DirectX 8.0-DirectPlay, IPSec,PPTP VPN pass-through,L2TP VPN pass-through, HTTPS,HTTP,FTP,ICMP,SMTP,POP3,NNTP,Telnet).

  • Page 7: Leds Of Front Panel

    2.6 Front Panel LED Description A D S L Ethernet / USB READY WAN DATA LAN_LINK LED Name Description READY The READY LED blinks when the ADSL modem is ready. The READY LED is off when the ADSL modem is not ready or has malfunctioned.

  • Page 8: Chapter 3 Installation

    Chapter 3 Installation 3.1 Hardware Connection Note: When plugging in power cord, router starts working after around 15 seconds. Note: If you push the “Reset” button, all the parameter setting will rev ert back to factory default. Method A LAN 10/100M ADSL AC-IN RESET...

  • Page 9: Usb Installation

    Method B LAN 10/100M ADSL AC-IN RESET Switch Hub ADSL Outlet USB port Power ..LAN port LAN port LAN port LAN port LAN port 3.2 USB Installation This ADSL Modem Router supports extra USB port for PC use and this USB port works together with Ethernet port at the same time.

  • Page 10: Chapter 4 Configuration Setting

    Chapter 4 Configuration Setting 4.1 LAN Card Setting When PC is on. Mov e cursor to 'Network Neighborhood' 1. Push the right button of mouse, click 'Properties' 2. Select the TCP/IP of your LAN card 3. Click 'Properties' 4. Under 'IP address', select 'Obtain an IP address automatically' 5.
  • Page 11 Figure 1 4. After entering the user name and password, you will see the Homepage shown as below(see Figure 2). Please select the Configuration section to start setting up your ADSL Modem Router. Note: Please refer Annex A(page 15) for ADSL Modem Router configuration.

  • Page 12: Router Mode For Static Ip With Dhcp Function

    4.2.1 Router mode for Static IP with DHCP function 1. Following is example of “Router mode for Static IP with DHCP function” (see figure 3). Go to the Configuration section, click WAN. Enter Default Gateway, VPI, VCI, Static IP address, Subnet Mask v alue(Note: please get this data information from your ISP or phone company).
  • Page 13 2.Please select DNS. Sel e ct”Auto Discovery+User Configured” and enter the Preferred DNS Server, Alternate DNS Server, then Click “Submit”. Figure 4 3.Click Save Settings -> “Submit”. This ADSL Modem Router will sav e these parameter settings and restart automatically. It takes about 15 seconds. Figure 5 4.

  • Page 14: Bridge Mode Ip With Dhcp Function

    4.2.2 Bridge mode with DHCP function 1. Following is example of “Bridge mode with DHCP function” (see Figure 6). Configuration section, cl i ck WAN. Enter VPI, VCI Go t o t he v alue(Note: please get this data information from your ISP or phone company).

  • Page 15: Annex A

    Annex A ADSL Modem Router Configuration Guide Bridge Mode Router Mode Router Mode (Dynamic IP) (Dynamic IP) (Static IP) WAN Configuration N/A (Automatically Default Gateway N/A (0.0.0.0) Assigned by ISP) Provided by ISP VC0 Enabled VC1-VC7 Enabled VC0 Static IP Address N/A (0.0.0.0) N/A (0.0.0.0) Provided by ISP...
