5.5
Start a debug session and configure the debugger for trace
Click the Debug button in the Debug Confugurations view. Now the program will be loaded into the
target, and run until main().

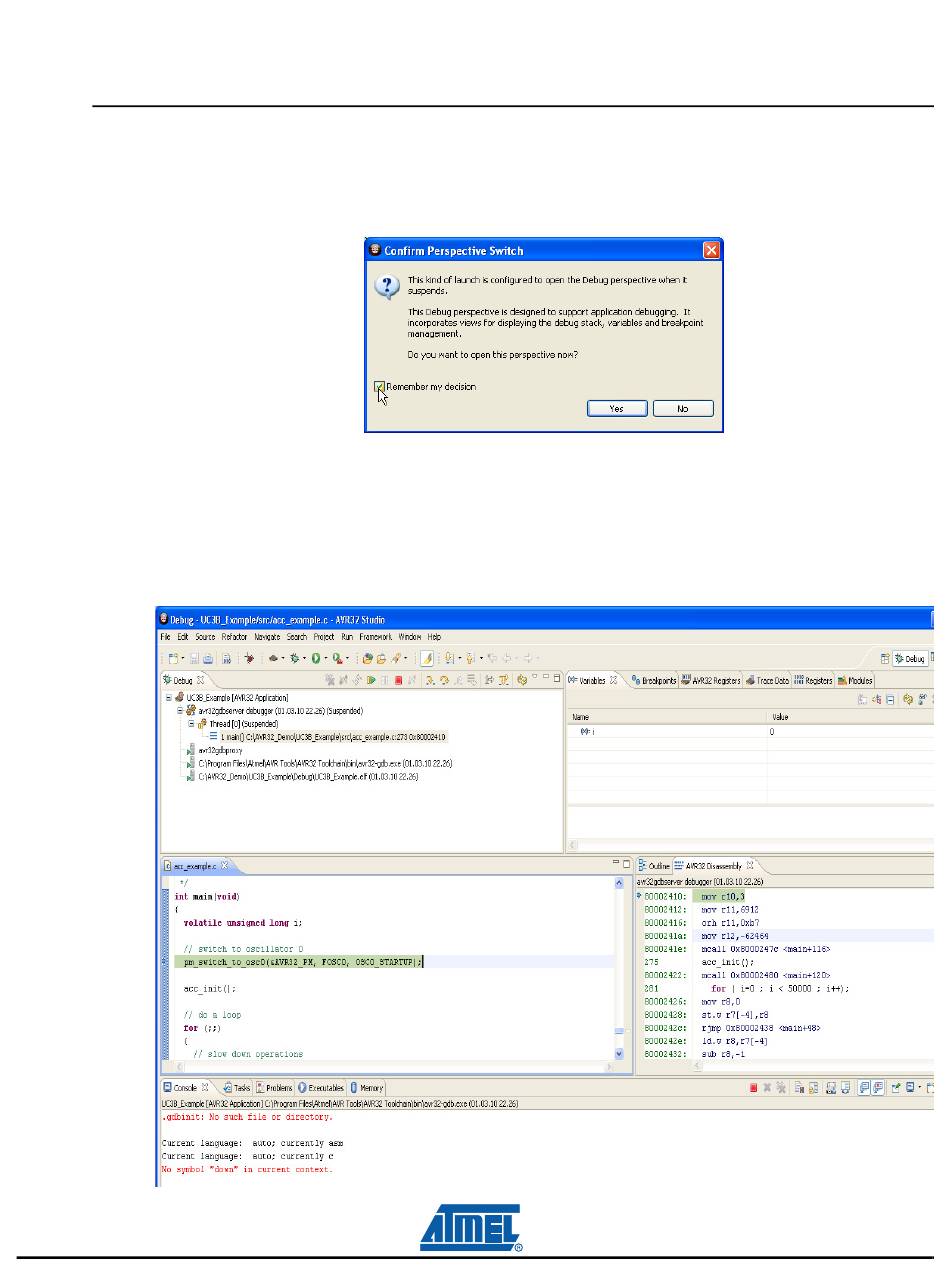

Figure 5-28. Switching perspective
When the debug session starts, AVR32 Studio 2.5 will change to the Debug perspective (desktop layout
designed for use during debug sessions). You should click Yes. To avoid being asked every time you
start a debug session, you should also click the Remember my decision box before answering Yes.
Wait until the target has stopped at the first instruction in the main() routine.
Figure 5-29. Program halted at main()
AVR ONE! Quick-start Guide
Create demo application
6-16
32104B–AVR ONE!–02/10
