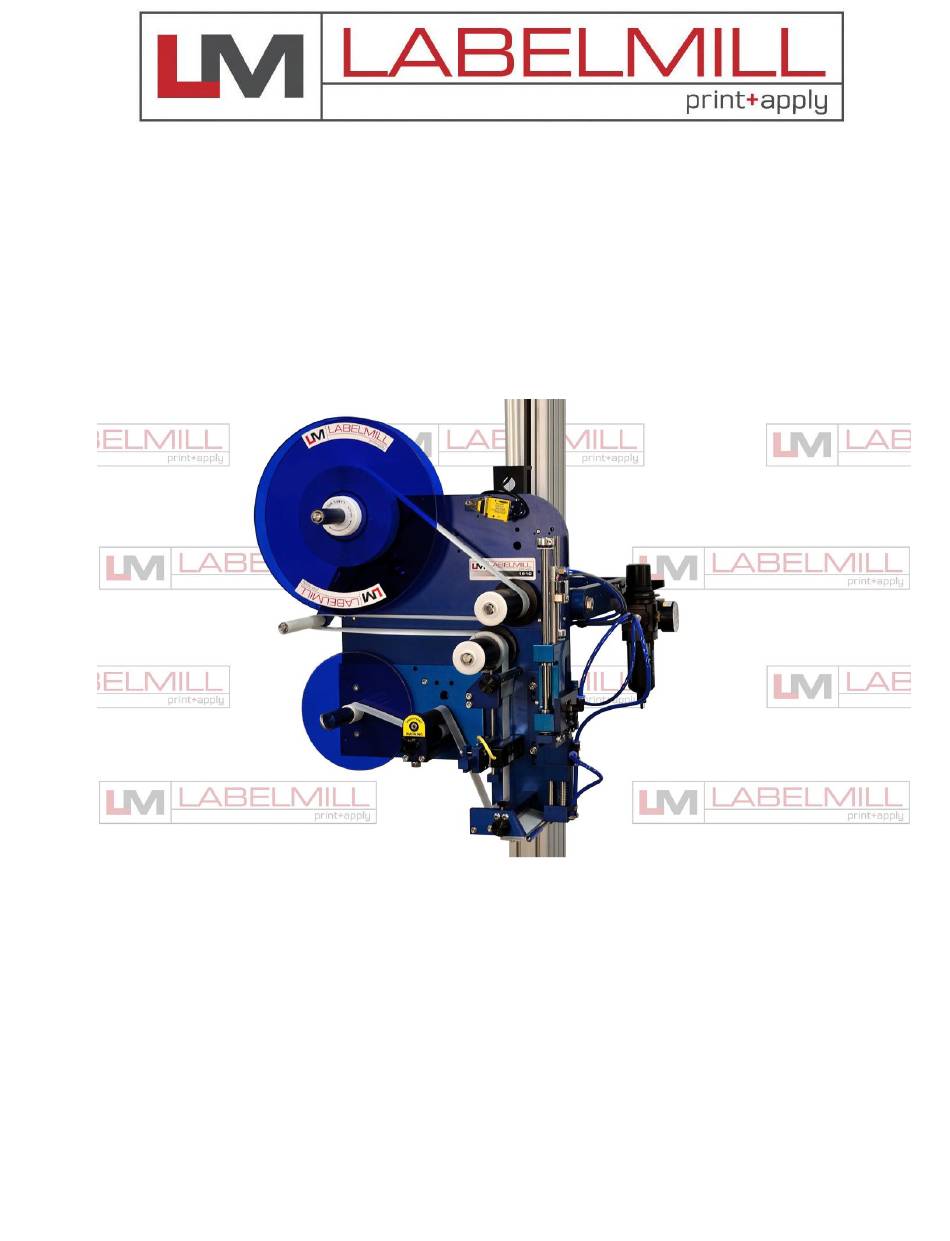

LM1510 AUTOMATIC LABEL APPLICATOR OPERATIONS MANUAL Manufactured in USA by: LabelMill, Inc. 2416 Jackson St. Savanna, IL 61074 (800) 273-4707 info@labelmill.com www.labelmill.com...
LM1510 Servo Drive Label Applicator USER’S MANUAL TABLE OF CONTENTS SECTION PAGE 1. APPLICATOR OVERVIEW Introduction General Applicator Specifications Inventory List User Responsibility/Safety 2. WEBBING, SETUP AND GENERAL OPERATION LM-1510 Component Description Web Routing Label Sensor Adjustment Drive Motor Pack...
LABELMILL LM1510 SERVO DRIVE LABEL APPLICATOR The LabelMill LM1510 is a state of the art, high speed, heavy-duty industrial Label Applicator. High-speed label applications to 2300 linear inches of label web per minute is combined with an exceptional placement accuracy of up to +/- 1/32", with its wipe-on method of application.
Page 5
LM1510 Servo Drive Label Applicator USER’S MANUAL INVENTORY LIST QTY. Description Applicator Assembly 12-½” dia. Blue Plastic Spools w/ Quick Release Collar 7-¾” dia. Blue Plastic Spool w/ screws ½” – 13 bolts w/ washers 6’ Power Cord Product Switch ( Manual Limit Switch/Photo Switch as Specified )
Page 6
LM1510 Servo Drive Label Applicator USER’S MANUAL USER RESPONSIBILITY This equipment will perform in conformity with the description thereof contained in this manual and accompanying labels and/or inserts when installed, operated, maintained, and repaired in accordance with the instructions provided. This equipment must be checked periodically. Defective equipment should not be used. Parts that are broken, missing, plainly worn, distorted, or contaminated should be replaced immediately.
LM1510 Servo Drive Label Applicator USER’S MANUAL WEB ROUTING (Left Hand Tamp Configuration Shown) Step Operation Load web onto label storage spool (A) so it unloads in a counter-clockwise direction. Feed the web to the left and under the guide roller (B).
LM1510 Servo Drive Label Applicator USER’S MANUAL LABEL SENSOR ADJUSTMENT (Synchronous Feed Configuration Shown) Label Sensor Peeler Arm Rail Manual adjustment of the label in relation to the peeler plate is achieved by loosening the thumbscrew on the backside of the label sensor and sliding the assembly up or down on the peeler arm rail.
LM1510 Servo Drive Label Applicator USER’S MANUAL DRIVE MOTOR PACK (PN: AC-F-A0011) To increase waste web tension, move the lock collar 1/32” away from the take-up spool, compressing the spring. CAUTION! Too much web tension may cause web breakage, label drifting or premature failure of the take-up spool assembly.
LM1510 Servo Drive Label Applicator USER’S MANUAL T-STAND ADJUSTMENT Column Crank Column Lock To adjust the T-150 mounting stand, simply loosen the headlocks and adjust to the desired height by turning the column crank. Be sure to lock the headlocks when finished.
Page 15
LM1510 Servo Drive Label Applicator USER’S MANUAL VALVE PACK (Not Included in Synchronous Feed Configuration) There are solenoid valves associated with applicators using pneumatics. They are supplied with pre-wired cables that connect to the necessary components. There is an adjustment for airflow for each valve. This will change the rate at which air will flow through each valve.
LM1510 Servo Drive Label Applicator USER’S MANUAL Tamp Assembly & Factory Setup NOTE: PICTURES SHOWN MAY NOT RESEMBLE YOUR MODEL Hinge Thumbscrew Tamp Pad (T) Peeler Plate (P) Air Assist Tube (B) Tamp pad adjustment 1. To adjust the tamp pad (T) in relationship to the peeler plate (P) in the horizontal plain, loosen the (2) button- head screws and move the peeler plate forward or backward in the slots.
LM1510 Servo Drive Label Applicator USER’S MANUAL Flag Assembly & Factory Setup NOTE: PICTURES SHOWN MAY NOT RESEMBLE YOUR MODEL Shaft Collars (S) Cylinder Mounting Plate (C) Flag Assembly (F) Peeler plate (P) Label jaws (J) Air assist tube (B)
LM1510 Servo Drive Label Applicator USER’S MANUAL Synchronous Feed Assembly & Factory Setup Peeler Arm (A) Mounting Screw (S) Peeler Plate (P) Peeler Plate Adjustment (used to adjust tracking) 1. Loosen the mounting screws (S) and slide the peeler plate (P) in the direction needed to make the label web track in the desired direction.
LM1510 Servo Drive Label Applicator USER’S MANUAL ACCESSORY CONNECTIONS LOCATED ON BACK OF CONTROL BOX Main Power Power Switch Remote Trigger (Photoeye) Port Valve Pack / Solenoids Port Light Bar / Auxiliary Ports Label Sensor Port Motor Pack Motor Pack...
LM1510 Servo Drive Label Applicator USER’S MANUAL PROGRAMMING All programming is performed via the HLI-100 keypad and display as shown on page 4-1. All programmed settings are backed in nonvolatile memory and are not lost when the unit is powered off.
Page 25
LM1510 Servo Drive Label Applicator USER’S MANUAL PASSWORD The PASSWORD is used to lock the menus of the control. This option is used to prevent unauthorized access to variable data. When shipped from the factory, the password is to 7074 and NO MENUS are locked. The password cannot be changed.
Page 26
LM1510 Servo Drive Label Applicator USER’S MANUAL COUNTERS Used to reset and set the internal counters of the control. PROGRAMMABLE BLOCKS: Total counter – resets the total counter to zero. Batch counter – resets the batch counter to zero.
Page 27
LM1510 Servo Drive Label Applicator USER’S MANUAL CYCLE TYPE Determines the application type and sequence in relation to the label. PROGRAMMABLE BLOCKS: No Tamp (Used for Synchronous Feed (Wipe-On) Applications) Tamp Before Feed - Tamp Cylinder will cycle before a label is fed onto vacuum platen...
LM1510 Servo Drive Label Applicator USER’S MANUAL PROGRAMMING FLOW CHART MODEL NUMBER LM MODEL 1510 & REVISION INITIALIZING UP & DOWN ARROW KEYS WILL SCROLL THROUGH THE PROGRAM BLOCKS AND SUB MENUS TOTAL 0000000 BATCH 0000000 PRESS "PROG" PASSWORD PRESS "ENTER"...
LM1510 Servo Drive Label Applicator USER’S MANUAL MAIN DISPLAYS PASSWORD 0000 PASSWORD PRESS ENTER PASSWORD PASSWORD Note: use UP and DOWN arrows to toggle between "ON" and "OFF". The enter key will save selection. AUTO SET UP AUTO SETUP IS...
Page 31
LM1510 Servo Drive Label Applicator USER’S MANUAL PRODUCT SENSOR PRODUCT DELAY PRODUCT DELAY 00.00 PRESS ENTER PRESS ENTER SENSOR TRIGGER SENSOR TRIGGER PRESS ENTER LEADING EDGE SENSOR TRIGGER TRAILING EDGE ON DEBOUNCE ON DEBOUNCE 0.000 USED TO FILTER FALSE PRESS ENTER...
Page 32
LM1510 Servo Drive Label Applicator USER’S MANUAL TAMP SETUP TAMP DURATION TAMP DUR 0.000 PRESS ENTER PRESS ENTER FLAG DURATION FLAG DUR 00.00 PRESS ENTER HEAD UP SWITCH HEAD UP SWITCH PRESS ENTER N.O. HEAD UP SWITCH NONE HEAD UP DEBOUNCE HD DBOUNCE 0.020...
Page 33
LM1510 Servo Drive Label Applicator USER’S MANUAL LABEL SPEED/ACC SET SPEED SPEED-IPM 0650 PRESS ENTER PRESS ENTER SET ACCERELERATION SET ACCERELERATION ACCEL-MS 0060 PRESS "ENTER" PRESS ENTER COUNTER TOTAL CNT RESET ENTER TO CLEAR PRESS ENTER ESC TO ABORT PRESS ENTER...
Page 34
LM1510 Servo Drive Label Applicator USER’S MANUAL LABEL SENSOR I-MARK/GAP/CLR I-MARK/GAP/CLR PRESS ENTER PRESS ENTER I-MARK/GAP/CLR CLEAR I-MARK/GAP/CLR I-MARK MANUALSET GAP SET MIN, ENTER PRESS ENTER 0.000 SET MAX, ENTER 0.000 GAP VOLTS 0.000 GAP THRESHOLD GAP VOLTS 0.000 PRESS ENTER...
Page 35
LM1510 Servo Drive Label Applicator USER’S MANUAL LABEL AUTO POSN AUTO-POSITION PRESS ENTER AUTO-POSITION STOP COMP DIST STOP COMP 0.000 PRESS ENTER LABEL STOP POSN STOP POSN 0.000 PRESS ENTER MISSG LABEL DET MISSING LBL DET PRESS ENTER MISSING LBL DET...
Page 36
LM1510 Servo Drive Label Applicator USER’S MANUAL ENCODER ENCODER ON/OFF PRESS ENTER PRESS ENTER ENCODER ON/OFF ENCODER ON/OFF CONVEYOR LOCK CONVEYOR LOCK >ON ENC OVERRIDE % & OVERRIDE 100.00 Range PRESS ENTER 50-150% TRIGGER DISTANCE TRIG DIST 00.00 PRESS ENTER START COMP DIST ST COMP DIS 0.000...
Page 37
LM1510 Servo Drive Label Applicator USER’S MANUAL CYCLE TYPE NO TAMP PRESS "ENTER" (WIPE-ON) TAMP BEFORE FEED TAMP AFTER FEED BLOW BEFORE FEED BLOW AFTER FEED PRE-PRINT TAMP PRE-PRINT BLOW CLAM SHELL BEFORE CLAM SHELL AFTER 4-17 Page Made in the U.S.A.
Page 38
LM1510 Servo Drive Label Applicator USER’S MANUAL PRINTER SETUP > = PRINT LABEL PRESS "ENTER" < = CYCLE NO PRINT PRINTER ENABLE ON / OFF PRESS "ENTER" PRINT REPEAT ON / OFF PRESS "ENTER" PRINT FLT TIMER PRINT FLT TIMER PRESS "ENTER"...
Page 39
LM1510 Servo Drive Label Applicator USER’S MANUAL Range 01-06 Jobs JOB STORAGE PRESS ENTER RESTORE JOB JOB NUMBER 1 ARE YOU SURE? PRESS ENTER < = NO > = YES SAVE JOB JOB NUMBER 1 ENTER: OVERWRIGHT PRESS ENTER CLEAR: ABORT ARE YOU SURE? <...
Page 40
LM1510 Servo Drive Label Applicator USER’S MANUAL I/O STATUS S P H I A F V T PRESS ENTER O O O O O O (XO) O O O O O O O O (X1) O O O O O O O O...
STOP COMPENSATION – Stop compensation is used to correct the LabelMill application head ONLY. The reaction time of the LabelMill control and label sensor is corrected. The purpose of stop compensation is to maintain label placement at the peeler plate when the label web is traveling at different speeds. An example of this is when the applicator is synchronous feeding a label onto a product on a conveyor that accelerates on start up and decelerates to a stop.
Page 42
LM1510 Servo Drive Label Applicator USER’S MANUAL ENCODER OVERRIDE – This feature is used in conjunction with ELECTRONIC GEARING. This feature is used to fine-tune the ratio of the applicator to the product conveyor. TRIGGER DIST – TRIGGER DISTANCE is used in conjunction with the encoder feature. Trigger distance is similar to product delay in that it is used to electronically move the placement of the label on the product.
LM1510 Servo Drive Label Applicator USER’S MANUAL SETUP OF KEY FEATURES START COMP DIST – START COMPENSATION DISTANCE 1. Set basic applicator up first, refer to quick setup 2. Set up STOP COMP DIST, refer to STOP COMPENSATION DISTANCE setup 3.
Page 44
LM1510 Servo Drive Label Applicator USER’S MANUAL LABEL STOP POSITION LABEL STOP POSITION is used to electronically move the stop position of the label on the applicator ONLY. The setup below describes how to use the LABEL STOP POSITION in ASYNCHRONOUS operation ONLY.
Page 45
CALCULATING ENCODER LINES PER INCH (gearing) There are two basic concepts utilized to interface the product ENCODER to the LabelMill control. One method utilizes a wheel mounted directly to an encoder. This wheel rests on the belt surface and rotates when the belt moves.
Page 46
LM1510 Servo Drive Label Applicator USER’S MANUAL TRIGGER DIST – TRIGGER DISTANCE TRIGGER DISTANCE is used in conjunction with the encoder feature. Trigger distance is similar to product delay in that it is used to electronically move the placement of the label on the product. When the encoder feature is used, the product delay feature is rendered inactive.
Page 47
LM1510 Servo Drive Label Applicator USER’S MANUAL BROKEN WEB BROKEN WEB feature is used to detect the breakage of the label web. Note this feature will not work with clear labels. The label sensor detects the broken web by comparing the difference in the opacity of the label liner to NO label liner.
Page 48
LM1510 Servo Drive Label Applicator USER’S MANUAL MANUAL-SET GAP MANUAL-SET GAP is used to manually set the label sensor to the label stock that is webbed in the applicator. This step is automatically taken care of in the AUTO SETUP mode covered in QUICK SETUP chapter. If the values the applicator calculated are in question, the following will allow manual calibration of the label.
Page 49
LM1510 Servo Drive Label Applicator USER’S MANUAL QUICK START GENERAL SETUP 1. Inspect applicator system and verify all cables are installed properly. 2. Web system with labels. 3. Turn power switch on. 4. Press “PROG” 5. Press UP arrow 6. “ENTER” AUTO SETUP 7.
Page 50
LM1510 Servo Drive Label Applicator USER’S MANUAL HOW TO SET UP AN ASYNCHRONOUS APPLICATION “TAMP” WITHOUT AN ENCODER Determine the following and select it in the software 1. Type of application mode. (Tamp) 2. Tamp before or after feed (before feed is standard) 3.
Page 51
LM1510 Servo Drive Label Applicator USER’S MANUAL HOW TO APPLY MULTIPLE LABELS TO A SINGLE PRODUCT WHEN UTILIZING A ENCODER This section will explain how to apply more than one label to a single product with a single start signal. TRIGGER DISTANCE will move the label placement in inches (00.00) for the FIRST LABEL.
Page 52
LM1510 Servo Drive Label Applicator USER’S MANUAL WHEN NOT UTILIZING A ENCODER Product delay is similar to trigger distance in that it is used to electronically move the placement of the FIRST label on the product. Product delay will move the label placement in time (00.000). Because the product delay feature utilizes time, the speed of the product MUST be constant and consistent.
Page 53
LM1510 Servo Drive Label Applicator USER’S MANUAL DESCRIPTION OF I/O All user inputs and outputs are “SINKING” type, except for the special isolated ground I/O. Example in order for a status light to illuminate for “Run Status Ok” the light should be wired between pins #1 & #8 on the “Light Bar/Aux.”...
LM1510 Servo Drive Label Applicator USER’S MANUAL 1510 SETUP DIP SWITCH COMMUNICATIONS ADDRESS HOW TO SET LABELER COMMUNICATIONS ADDRESS FOR A 1510 WHEN USING MULTIPLE LABELERS WITH ONE TS204 TOUCHSCREEN, EACH LABELER MUST BE SET UP WITH A UNIQUE COMMUNICATIONS ADDRESS.
LM1510 Servo Drive Label Applicator USER’S MANUAL GENERAL CLEANING & MAINTENANCE The system should be inspected and cared for properly before operation begins. Typical inspection includes confirming correct supply spool loading, web path, checking air pressure, ensuring rollers are clean and free of adhesives, checking pinch assembly operation, and label feed position. Do not attempt to operate system if not in good working order.
LM1510 Servo Drive Label Applicator USER’S MANUAL TROUBLESHOOTING GUIDE If the system malfunctions, it is necessary to determine where the problem exists in a normal sequence of operation. Possible error conditions are listed in the left-hand column to provide a systematic approach to troubleshooting.
LM1510 Servo Drive Label Applicator USER’S MANUAL FAULT CODES DISPLAYED FAULT DESCRIPTION CORRECTIVE ACTION Memory Checksum Data lost in battery SRAM Consult factory or service provider Missing Label Too many labels missing on web Check label stock Following Error Servo motor stalled...
LM1510 Servo Drive Label Applicator USER’S MANUAL REPLACING THE MAIN POWER FUSE The circuitry is protected from a current overload by GMA 15A a fast blow fuse. Should the applicator fail to operate, the condition of this fuse should be checked. If the fuse is open, the cause of the overload condition must be determined and corrected prior to replacing the fuse.
