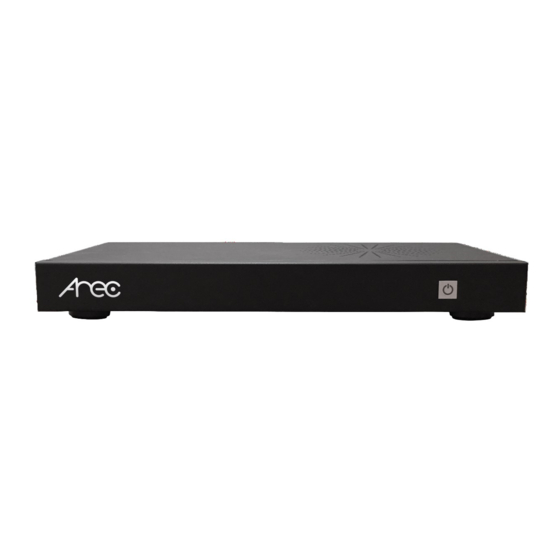

Arec DS-4CU Manual

Speaker tracking system
Hide thumbs Also See for DS-4CU:

Advertisement

Quick Links

Download this manual
Speaker Tracking System
DS-4CU
2021/6/23 Updated
(DS-4CU v6.0.0.41)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-4CU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arec DS-4CU

Summary of Contents for Arec DS-4CU

  • Page 1 Speaker Tracking System DS-4CU 2021/6/23 Updated (DS-4CU v6.0.0.41)
  • Page 2 When paired with an AREC media station, It could also control the station’s theme when a microphone is activated/deactivated. AREC Inc.© All Rights Reserved 2021 www.arec.com...

  • Page 3: Installation

    Installation Connection AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 4 The following guide gives an example of the commonly used ONVIF protocol of network cameras. Register Camera Make sure the cameras are correctly connected. And go to DS-4CU web Admin page → Media I/O → Network device manage → Network cameras Click 3.
  • Page 5 "Signal type" to "Encoder" in the "Video Inputs" and fill in the stream URL of your camera. **Note: DS-4CU supports IP stream profile: H264, 1920x1080, 30 FPS, Bitrate 4Mbps. AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 6 Assign cameras to video inputs DS-4CU could be connected to up to 4 video input sources; they could be either HDMI/VGA/IP camera/encoder(stream sources: RTP/RTSP/RTMP). *Note: HDMI/VGA only available in 1st and 2nd Video input 1. Go to web admin → Media I/O → Video inputs.
  • Page 7 (2) select the IP address of the camera, (3) select "over IP (ONVIF)" for PTZ control, (4) and click Apply Repeat the steps above to add all necessary cameras. AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 8 The IP of the APT(Access Point Transceiver), which is either an MXWAPT8, MXWAPT4, or MXWAPT2. 2. Go to DS-4CU’s web Admin page → Speaker Tracking → Control settings 3. Find the External system section and select the corresponding microphone. Insert the microphone system’s IP and click Apply.
  • Page 9 4. Go to the display’s graphic user interface and click the Info button in the bottom-right corner. 5. To ensure the connection between DS-4CU and the microphone was successfully set, activate any microphone to see if any string was shown like the image below.
  • Page 10 Control settings - General default This configuration defines how the image should be displayed when there is no microphone activated. 1. Go to DS-4CU’s web Admin page → Speaker Tracking → Control settings, and find the General default 2. Click the edit button to edit the theme of general default(no microphone activated).
  • Page 11 3. Click to preview the theme setting AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...

  • Page 12: Camera Control

    This configuration defines how the image should be displayed when a single microphone is activated. *Note: When connected with any Shure model, the Group on this page should always be set at 0. 1. Go to DS-4CU’s web Admin page → Speaker Tracking → Camera control 2. Click or the edit button to edit the theme of each microphone, and click [Apply].
  • Page 13 0 ~ 255, 0 = no background Ext. Recorder Paired AREC media station -1 & 1 ~ 255, -1 = OFF Theme Theme ID 3. Click to preview the theme setting AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 14 MXA Series(MXA910/MXA710/MAX310) For Shure MXA Series, each mic lobe/channel on a Shure device corresponds to a microphone theme. The ID set on DS-4CU is the same as the mic lobe/channel number on Shure. Ex. MXA910 - 8 lobes/channels (1~8) On DS-4CU’s camera control page, it should have Group 0, ID 1~8.
  • Page 15 Find the seat number for each microphone on the Shure MXCW series, and use it as the ID to set up the microphone theme on DS-4CU. AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 16 Find the channel number for each microphone on the Shure MXW series, and use it as the ID to set up the microphone theme on DS-4CU. AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
  • Page 17 DS-4CU applies the theme of the earliest activated microphone. Set Mode of Speaker action settings 1. Go to DS-4CU’s web Admin page → Speaker Tracking → Control settings, scroll down and find the Speaker action settings 2. Select the mode and click [Apply].
  • Page 18 FIFO". However, for the "Multiple speaker" mode, users need to set up the theme to be applied when multiple microphones are activated. 1. Go to DS-4CU’s web Admin page → Speaker Tracking → Control settings, scroll down and find the General - Multiple speaker 2.
  • Page 19 Find the current Overlay / Background / Layout ID number 1. Go to web admin → Theme 2. The number above each image is the ID number of the overlay/background/layout. AREC Inc.© All Rights Reserved 2021 www.arec.com All information contained in this document is Proprietary...
