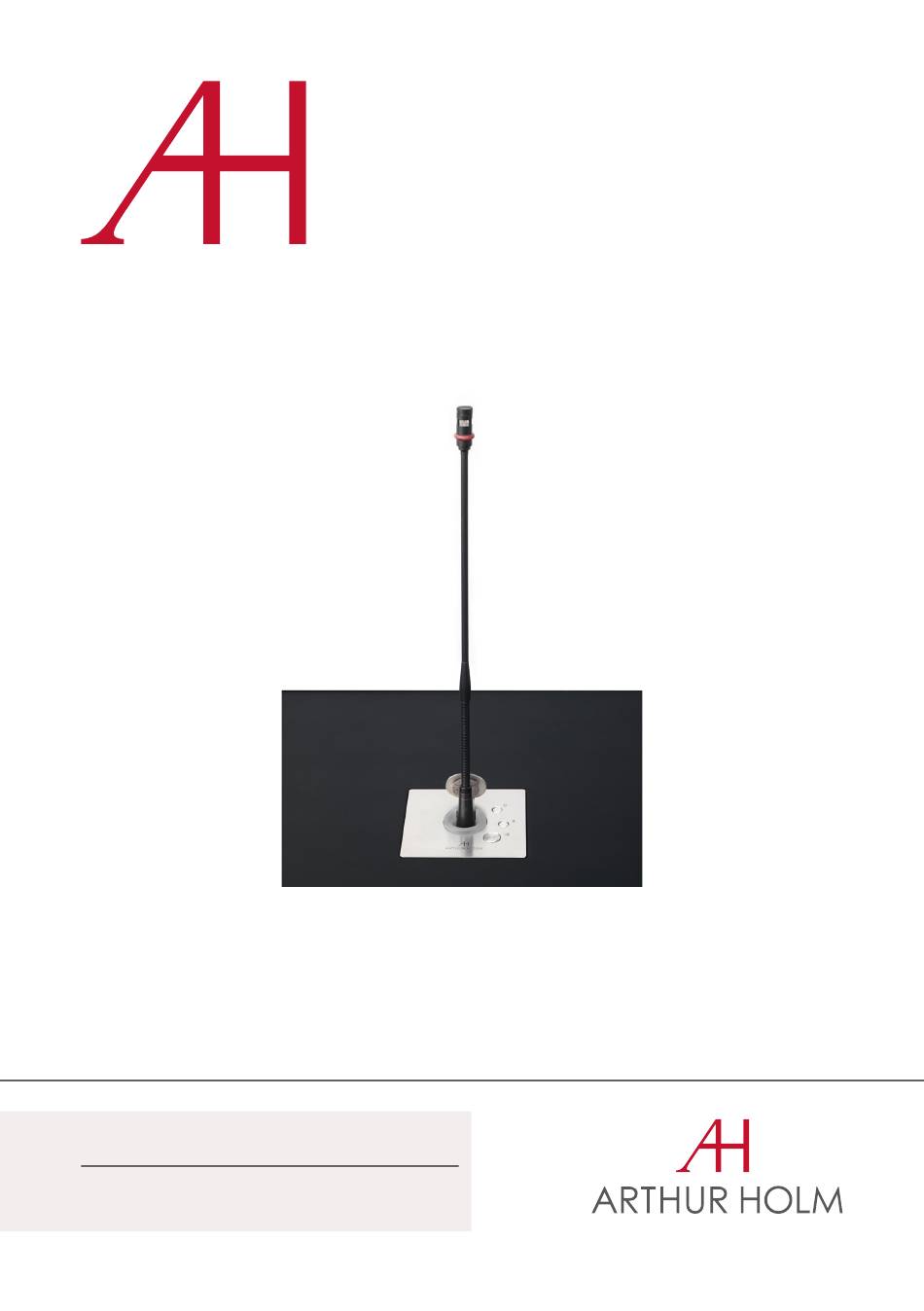

- Page 1 User Guide AHDTL Universal motorised lift system for gooseneck microphones Technology Serving Desing Danish craftmanship Mediterranean soul...
-
Page 3: Table Of Contents
TABLE OF CONTENTS EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS APPLICATIONS FEATURES BOX CONTENTS CONTROLS CONNECTIONS PRODUCT HANDLING AHNET PROTOCOL AHLINK INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 4 Please, read this guide carefully. If you have any suggestions that might help us to improve our products, we would be pleased to receive them. Thank you again and we hope that you enjoy the Arthur Holm experience! Henrik Holm...
- Page 5 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, the design force behind Arthur Holm product range. The result of...
-
Page 6: Ec Regulations And Security
EC REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 8: Applications
SAFETY INSTRUCTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 9: Features
APPLICATIONS retracting. When in Conference model, the microphone will always be active and both the light ring and the access to the push button on the cover plate will be available via GPI and GPO for remote control. DynamicTalk is available in 3 sizes: for 400 mm, 500 mm and 600 microphones. -
Page 10: Controls
CONTROLS On the upper cover plate, there are three buttons to control the functions and to externally control other devices (GPO). 1. UP/DOWN: Controls the elevation and retraction of the microphone lift. Press this button during 2 seconds to activate AHlink signal (5 beeps sound when AHlink signal is activated). - Page 11 CONTROLS • Conference mode: In Conference mode, the microphone is controlled by the external conference system. This button then, has no function and the contact close of the push button is present on the GPO control connector. The contact close button (GPO) is present on GPO connector to externally control other devices.
-
Page 12: Connections
CONNECTIONS RJ45 CAT5 connector for addressable RS422 control. There is AHnet: a loop through connector to use as signal RS422 output. Up to 30 devices can be connected on the same RS422 bus. AHnet address: Shows the AHnet Address configured on this unit Term ON: Brighting when the RS422 bus termination is active. - Page 13 CONNECTIONS Service: Used for firmware upgrade. 12V D.C.: Power supply input connector. XLR-4 connector. - 1,2: Ground - 3,4: 12Vdc...
-
Page 14: Product Handling
PRODUCT HANDLING Please follow the figure below for a correct product usage of the DynamicTalk microphones. To avoid any product malfunctions, do not attempt to bend the microphone to the incorrect angle or outside the microphone's working area. Please note that ware to the microphone and pop screen surface can occur. -
Page 15: Ahnet Protocol
AHNET PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-5 Speed & configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX RJ-45 7. - Page 16 AHNET PROTOCOL AHnet protocol Using 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 AHnet commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN...
- Page 17 AHNET PROTOCOL BIT 0 TOP POSITION BIT 1 DOWN POSITION BIT 2 MUTE ON (1) BIT 3 BUTTON LOCKED (1) BIT 4 BIT 5 BIT 6 BIT 7 (1) FAILURE IN THE SYSTEM To send an order to all the devices, you must use the address: F7 Hex.
-
Page 18: Ahlink
AHLINK AHlink is used to control and set up the unit. By default, the AHlink signal on the unit is deactivated. To activate the AHlink signal, press during 2 seconds the Up/Down microphone button located on the cover plate, or contact close GPI2 pin to GND during 2 seconds. - Page 19 AHLINK If the device does not appear on the window, the AHlink signal is not active. To activate, press for 2 seconds the Up/Down button located on cover plate, or contact close to GND GPI pin2 during 2 seconds. You will hear 5 beeps indicating that the AHlink signal is activated.
- Page 20 AHLINK First line shows the model name of the device SERIAL Serial number on the unit Firmware version BEEP A Beep will sound while pressing this button. Use this function to identify the unit connected BT OFF Switch off the AHlink signal on the device. It will close the AHlink App connection AUTO ADJUST Auto adjusts the speed and protection parameters.
-
Page 21: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 22: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. 1. Electrical, electronic boards, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 23 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2019. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
- Page 24 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
