Summary of Contents for ARTHUR HOLM AHDTL

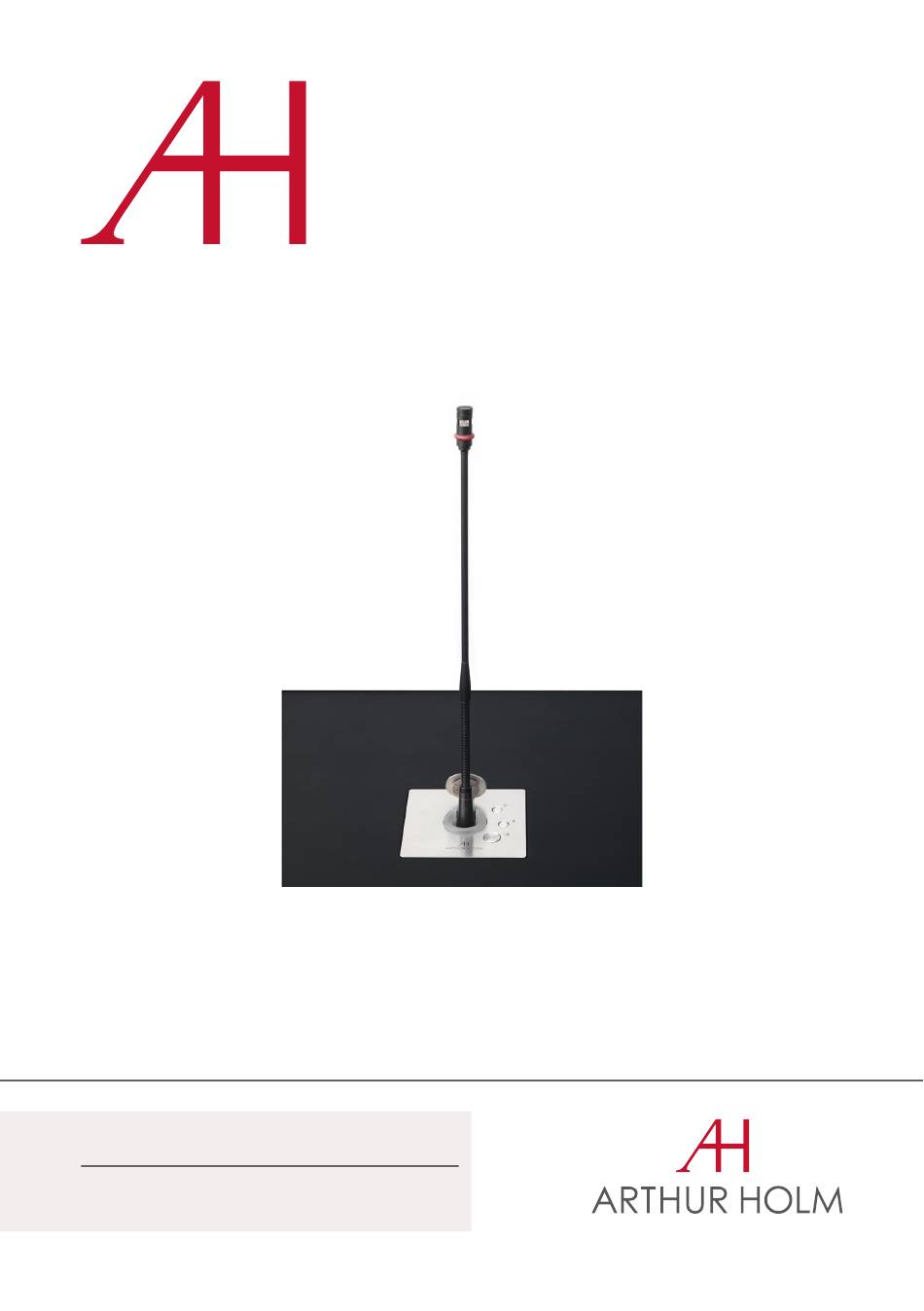

  • Page 1 User Guide AHDTL Universal motorised lift system for gooseneck microphones Technology Serving Desing Danish craftmanship Mediterranean soul...
  • Page 2 Please, read this guide carefully. If you have any suggestions that might help us to improve our products, we would be pleased to receive them. Thank you again and we hope that you enjoy the Arthur Holm experience! Henrik Holm...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS APPLICATIONS FEATURES BOX CONTENTS CONTROLS CONNECTIONS PRODUCT HANDLING AHNET PROTOCOL AHLINK WARRANTY TERMS...
  • Page 4: Ec Regulations And Security

    EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS ATTENTION: Do not disassemble or modify the device in any way. Wiring connected to hazardous voltage requires installation by This symbol warns of the presence of dangerous un-insulated qualified personnel or the use of ready-made flexible cables. voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock.
  • Page 5: Applications

    SAFETY INSTRUCTIONS APPLICATIONS This equipment has been tested and found to comply with the limits retracting. When in Conference model, the microphone will always be for a Class B digital device, pursuant to part 15 of the FCC Rules. These active and both the light ring and the access to the push button on limits are designed to provide reasonable protection against harmful the cover plate will be available via GPI and GPO for remote control.
  • Page 6: Controls

    CONTROLS CONTROLS On the upper cover plate, there are three buttons to control the • Conference mode: In Conference mode, the microphone is functions and to externally control other devices (GPO). controlled by the external conference system. This button then, has no function and the contact close of the push button is present on the GPO control connector.
  • Page 7 CONNECTIONS CONNECTIONS SERVICE Used for firmware upgrade 12V D.C. Power supply input connector. XLR-4 connector: 1,2: Ground 3,4: 12Vdc AHNET RJ45 CAT5 connector for addressable RS422 control. There is a loop through connector to use as signal RS422 output. Up to 30 monitors can be connected on the same RS422 bus AHNET ADDRESS Shows the AHnet Address configured on this unit TERM ON...
  • Page 8: Connections

    PRODUCT HANDLING AHNET PROTOCOL Please follow the figure below for a correct product usage of the Communications protocol DynamicTalk microphones. COMMUNICATION RS422 To avoid any product malfunctions, do not attempt to bend the CONNECTION RJ45 microphone to the incorrect angle or outside the microphone's working WIRING CAT-5 area.
  • Page 9 AHNET PROTOCOL AHNET PROTOCOL AHnet protocol Using 5 bytes communication: BIT 0 TOP POSITION BIT 1 DOWN POSITION BYTE 0 START BYTE BIT 2 MUTE ON (1) BYTE 1 ADDRESS BYTE BIT 3 BUTTON LOCKED (1) BYTE 2 COMMAND BYTE BIT 4 BYTE 3 VALUE 1...
  • Page 10: Ahlink

    AHLINK AHLINK AHlink is used to control and configure the unit. If the device does not appear on the window, the AHlink signal By default, the AHlink signal on the unit is deactivated. To activate the is not active. To activate, press AHlink signal, press during 2 seconds the Up/Down microphone button for 2 seconds the Up/Down located on the cover plate, or contact close GPI2 pin to GND during 2...
  • Page 11 AHLINK INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying First line shows the model name of the device documents means that used electrical and electronic products should not be mixed with general household SERIAL waste.
  • Page 12: Warranty Terms

    This warranty does not apply if the fault has been caused by misuse, improper handling, electrical or mechanical abuse, abnormal operation Albiral Display Solutions SL. conditions, non-authorised modifications, and inadequate transportion or as a result of atmospheric phenomenons. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
  • Page 13 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
