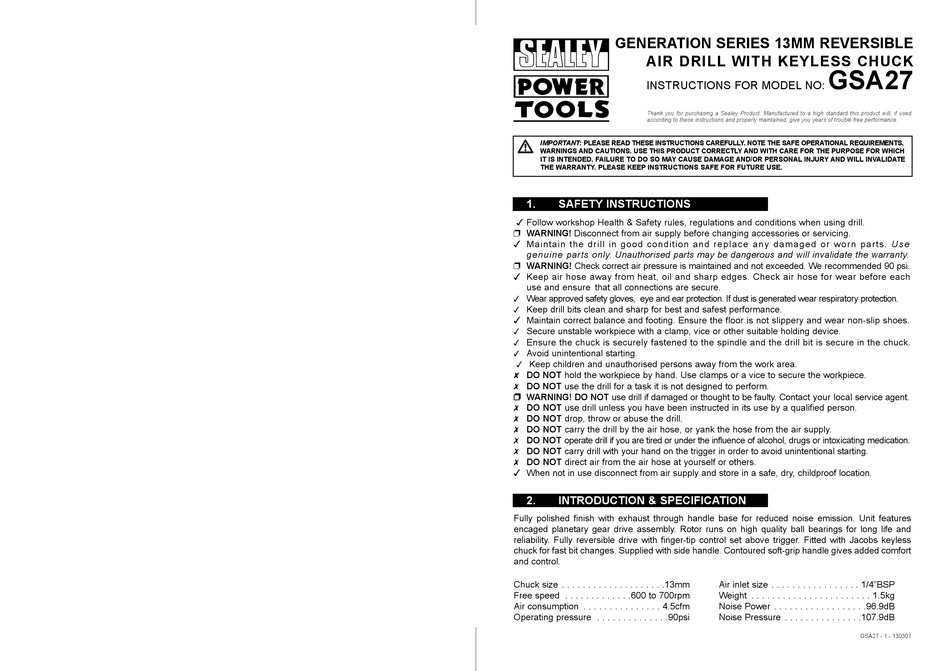

Sealey GENERATION Series Instructions For Use

GENERATION SERIES 13MM REVERSIBLE
AIR DRILL WITH KEYLESS CHUCK
INSTRUCTIONS FOR MODEL NO:
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used
according to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! Follow workshop Health & Safety rules, regulations and conditions when using drill.
" WARNING! Disconnect from air supply before changing accessories or servicing.
! Maintain the drill in good condition and replace any damaged or worn parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
" WARNING! Check correct air pressure is maintained and not exceeded. We recommended 90 psi.
! Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
Wear approved safety gloves, eye and ear protection. If dust is generated wear respiratory protection.
!
Keep drill bits clean and sharp for best and safest performance.
!
! Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Secure unstable workpiece with a clamp, vice or other suitable holding device.
!
Ensure the chuck is securely fastened to the spindle and the drill bit is secure in the chuck.
!
Avoid unintentional starting.
!
Keep children and unauthorised persons away from the work area.
!
DO NOT hold the workpiece by hand. Use clamps or a vice to secure the workpiece.
#
$ DO NOT use the drill for a task it is not designed to perform.
" WARNING! DO NOT use drill if damaged or thought to be faulty. Contact your local service agent.
$ DO NOT use drill unless you have been instructed in its use by a qualified person.
$ DO NOT drop, throw or abuse the drill.
$ DO NOT carry the drill by the air hose, or yank the hose from the air supply.
$ DO NOT operate drill if you are tired or under the influence of alcohol, drugs or intoxicating medication.
$ DO NOT carry drill with your hand on the trigger in order to avoid unintentional starting.
$ DO NOT direct air from the air hose at yourself or others.
! When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATION

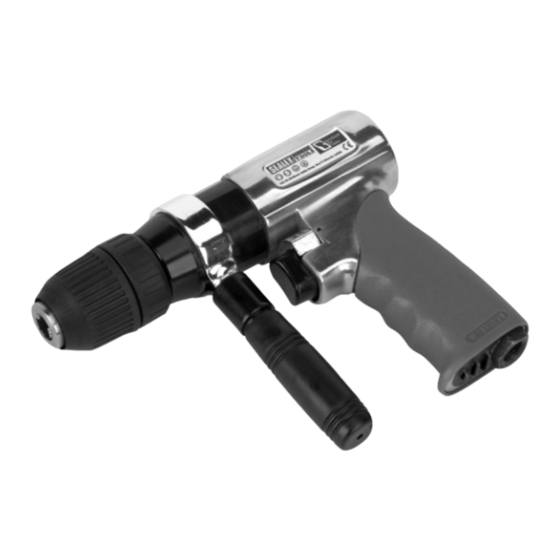

Fully polished finish with exhaust through handle base for reduced noise emission. Unit features
encaged planetary gear drive assembly. Rotor runs on high quality ball bearings for long life and
reliability. Fully reversible drive with finger-tip control set above trigger. Fitted with Jacobs keyless
chuck for fast bit changes. Supplied with side handle. Contoured soft-grip handle gives added comfort
and control.
Chuck size . . . . . . . . . . . . . . . . . . . .13mm
Free speed . . . . . . . . . . . . .600 to 700rpm
Air consumption . . . . . . . . . . . . . . . 4.5cfm
Operating pressure . . . . . . . . . . . . . .90psi
GSA27
Air inlet size . . . . . . . . . . . . . . . . . 1/4"BSP
Weight . . . . . . . . . . . . . . . . . . . . . . . 1.5kg
Noise Power . . . . . . . . . . . . . . . . . .96.9dB
Noise Pressure . . . . . . . . . . . . . . .107.9dB
GSA27 - 1 - 130307
