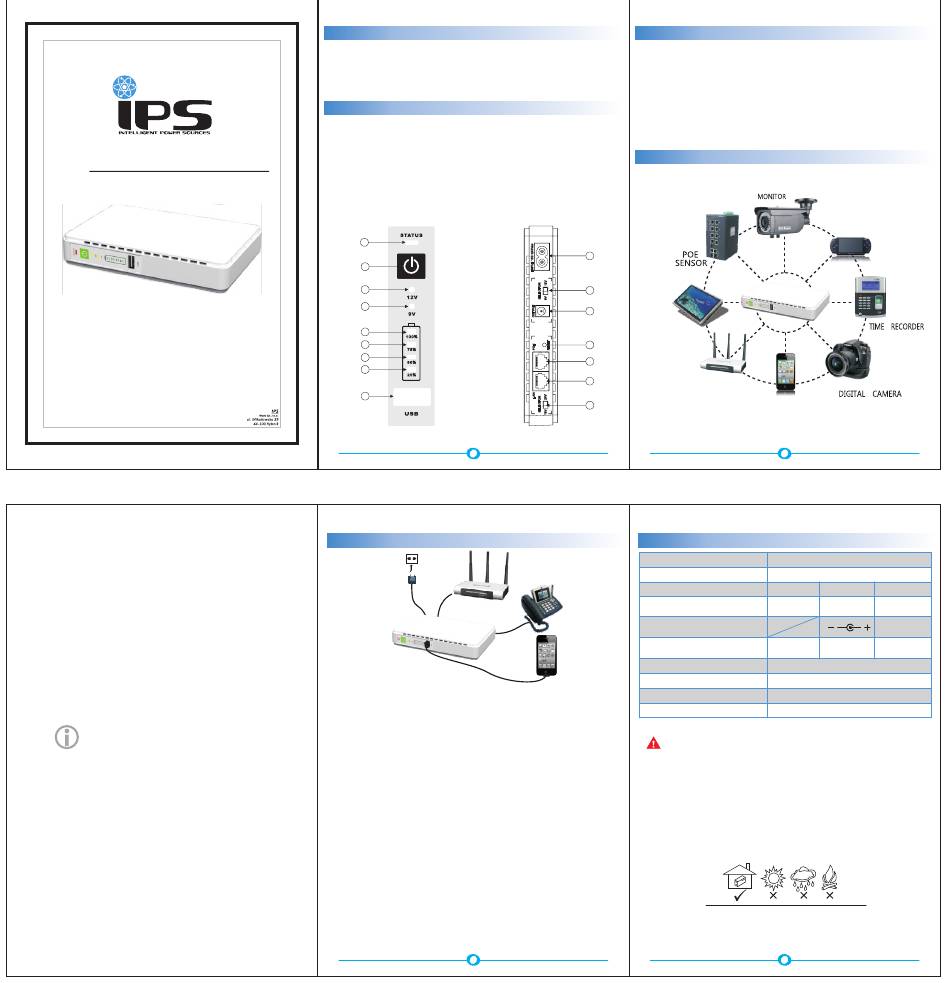

IPS ROUTER UPS-15-POE User Manual

15VDC or 24VDC POE and 9VDC or 12VDC UPS
ROUTER UPS-15-POE
MODEL:
U M
SER ANUAL
Please read and save this manual!
Please read this document before using
the equipment and save it for future reference.
Router UPS-15-POE-manual-R1, 24.07.2018
Please do not disassembly, short the batteries. Do not put the UPS
in places where ambient temperature is above 60°C.
1. P
ACKAGE
1) Router UPS-15-POE
2) AC input wire
3) DC output cables (2 ends)
4) User manual
2. F R P D
RONT AND EAR ANEL ESCRIPTION
1) Status LED indicator 10) AC input socket
2) Power ON/OFF Switch 11) DC Output Selector Switch 9VDC/12VDC
3) 12VDC output LED Indicator 12) 9VDC/12VDC output socket
4) 9VDC output LED indicator 13) Reset Button for POE Devices
5) Battery capacity LED indicator -> 100% 14) Ethernet interface POE output:
6) Battery capacity LED indicator -> 75% 15VDC / 24VDC
7) Battery capacity LED indicator -> 50% 15) Ethernet interface LAN
8) Battery capacity LED indicator -> 25% 16) DC POE Output Selector 15VDC/24VDC
9) 5VDC USB socket
1
2
3
4
5
6
7
8
9
1
5. I U
NSTRUCTION OF SE
1. In order to prevent batteries over discharge, please restart UPS when AC power
is available after activation battery cut-off protection.
2. Before connecting loads to the UPS, please check rated parameters of these loads like voltage,
current and polarity.
3. The overload protection is detected by total output power. Total power of the loads conected to all
outputs cannot exceed the maximum output power of UPS. Otherwise USB port(9) will be cut off
and Status LED indicator(3) will be flashing in yellow color. If power of the loads still exceeds
maximum output power of UPS all other outputs will be cut off and all LEDs will be flashing. To get
back to normal operation please remove overload.
4. To turn on the UPS please press and hold power ON/OFF switch for 2-3 seconds(2). Output voltage
can be choosen between 9VDC and 12VDC by DC Output Selector Switch(11). POE voltage can be
choosen between 15VDC and 24VDC by DC POE selector switch(16). After turning on UPS in AC
mode status LED indicator becomes green for charging. In the process of charging, the battery
capacity LED indicates the capacity of the battery by 25%, 50%, 75% and 100%(5 to 8) increasingly,
100% means fully charged batteries. In battery mode (when AC input fails) status LED indicator
becomes red and battery capacity LED indicator will turn off one by one from 100%(5), 75%(6),
50%(7) to 25%(8). When LED indicator 25% is flashing it means the battery capacity is very low,
please press and hold power ON/OFF switch fo 2-3 seconds to turn off the UPS.
5. Plug-and-play USB output provides stable charging to the digital devices with their original cables.
6. UPS shut down automatically when battery is low, it will recover to normal operation when AC input
recover.
7. If UPS is not used for a long time, please keep full charged batteres and let it stay in a cool place. If
the storage time is too long to turn on, please connect AC supply for charging batteries till status
LED indicator wil become light on green color. It's recommended to charge battery once per month.
3
3. F
EATURES
1) High capacity lithium batteries provides long backup to the loads
2) High compatibility: suitable for many digital devices on market
3) USB output for charging digital devices like mobile phones, PDA,
PSP, IPOD, MP4, etc.
4) POE (Power Over Ethernet) for transmit data and supply via the same
connector
5) Protections: Overcharge, Overdischarge, Short-circuit
6) Universal input AC range 90-264VAC
4. A
PPLICATIONS
10
11
12
IPAD
13
14
WIFI
15
16
6. S
PECIFICATION
Model
Combined Output Power (max.)
Output
Output voltage
Polarity of outputs
Current / Power of outputs
Battery
Dimensions
Net weight
Input Voltage Range
Warning
1. Check the voltage, current and polarity of the loads before connecting to the
UPS.
2. Please fully charge batteries before first use.
3. Dropping, hitting, disassembling and repairing are forbidden.
4. Do not put UPS into water or make it wet.
5. Do not expose UPS on fire or or direct sunlight or heating it.
6. Do not use UPS in any flammable environments.
7. Do not put UPS in a place where children can reach.
PSP
Phone
2
Router UPS-15-POE
15W
USB DC POE
9VDC / 12VDC 15VDC / 24VDC
5VDC
selectable selectable
V+: PIN4, PIN5
V-: PIN7, PIN8
15V: 0.6A/10W
1A / 5W 1A / 12W
24V: 0.6A/15W
Li-ion 2200mAh x 4pcs.
160*105*28mm
0.4kg
100-240VAC / 50-60Hz
