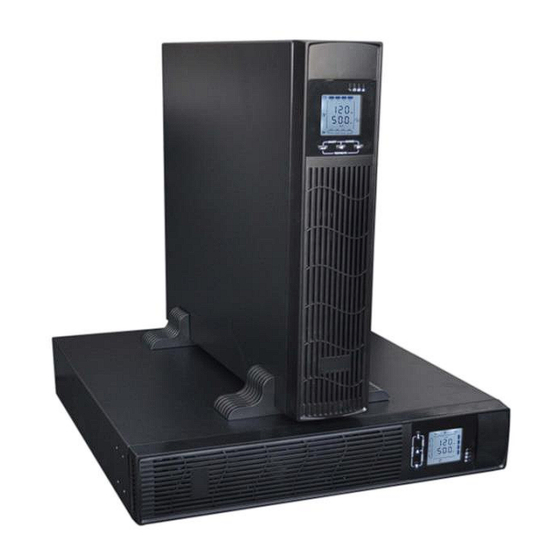

IPS RTS-ON-1k0-2U-LCD-2x9 User Manual
  1. Manuals
  2. Brands
  3. IPS Manuals
  4. UPS
  5. RTS-ON-1k0-2U-LCD-2x9
  6. User manual

IPS RTS-ON-1k0-2U-LCD-2x9 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL

Thanks for using our products
Please strictly obey all the instructions in this manual and pay attention to all the warning and operation
information. It is not advisable to install or operate the machine before reading this manual.
RTS-ON-user-manual_ENG-R1t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTS-ON-1k0-2U-LCD-2x9 and is the answer not in the manual?

Questions and answers

Related Manuals for IPS RTS-ON-1k0-2U-LCD-2x9

Summary of Contents for IPS RTS-ON-1k0-2U-LCD-2x9

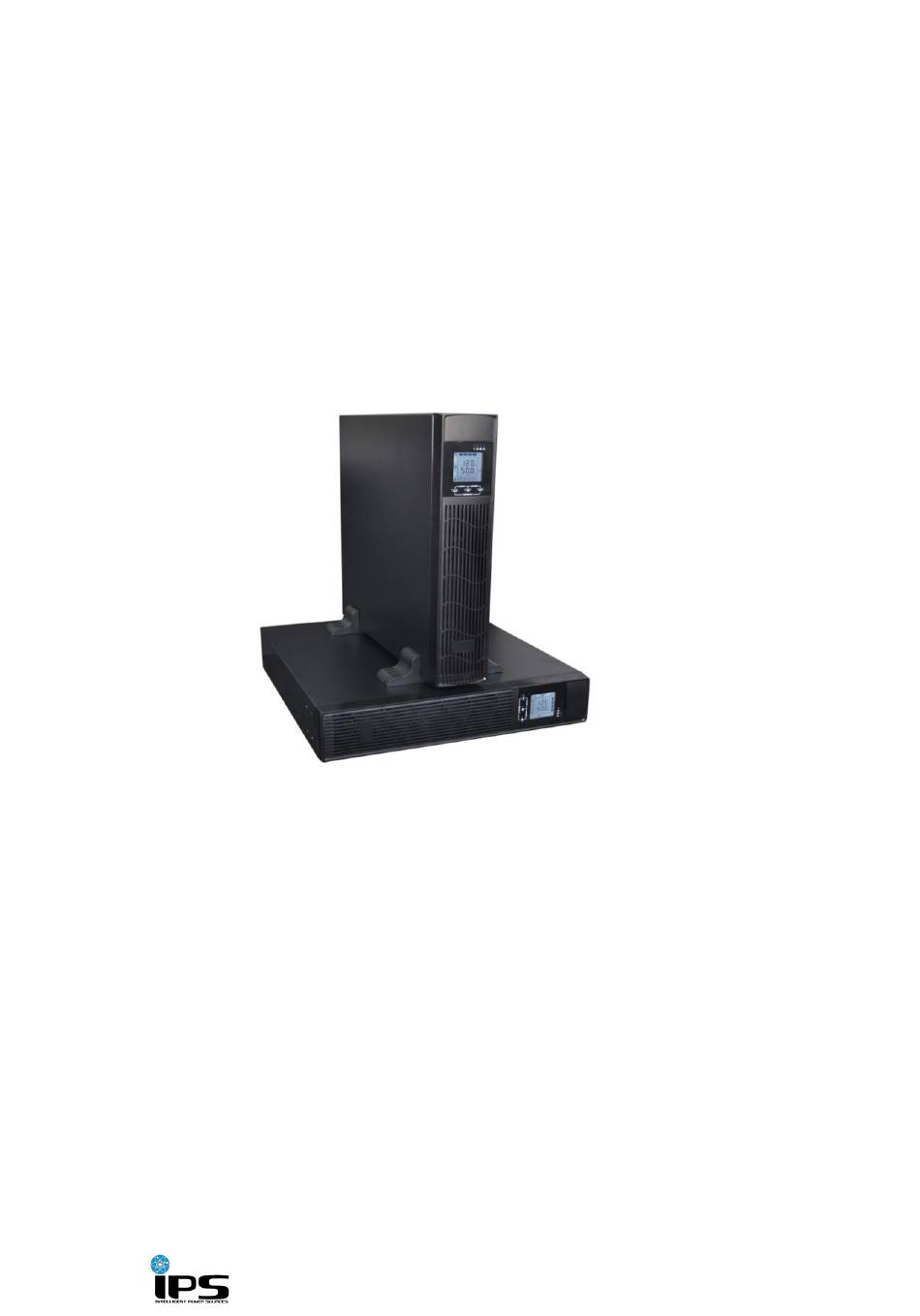

  • Page 1: User Manual

    USER MANUAL Thanks for using our products Please strictly obey all the instructions in this manual and pay attention to all the warning and operation information. It is not advisable to install or operate the machine before reading this manual. RTS-ON-user-manual_ENG-R1t...

  • Page 2: Ups Safety Instructions

    1. Safety instructions 1.1 UPS safety instructions ●Before applying the UPS system, Please read through all safety information and operating instructions carefully. It’s recommended to save this manual properly for future reading. ●Do not install the UPS system near the water or in moist environments. ●Do not install the UPS system where it would be exposed to direct sunlight or near the heater.

  • Page 3: Unpacking Inspection

    ●To determine whether this UPS is the model you want to buy. Check the model name showed both on the front panel and rear panel of UPS to confirm. Model Type RTS-ON-1k0-2U-LCD-2x9 1KVA RT Standard model RTS-ON-2k0-2U-LCD-4x9 2KVA RT Standard model...
  • Page 4 FUSE 125VAC,15A OUTPUT FUSE 125VAC 25A INPUT RESET RESET INPUT 48VDC 40A OUTPUT SOCKET OUTPUT SOCKET EXT.BATTERY TEL/MODEM/FAX a. 0.9PF 1KVA RT rear panel b. 0.9PF 1.5K&2KVA&3KVA RT rear panel B、Long-run model OUTPUT FUSE 125VAC,15A INPUT FUSE 125VAC 25A RESET RESET INTELLIGENT INPUT...
  • Page 5 B、Long-run model FUSE 250VAC,8A FUSE 250VAC,15A INPUT RESET RESET OUTPUT SOCKET INPUT TEL/MODEM/FAX INTELLIGENT 48VDC 40A SLOT EXT.BATTERY OUTPUT SOCKET a. 0.9PF 1KVA RT rear panel b. 0.9PF 1.5K&2KVA RT rear panel FUSE 250VAC,20A INPUT RESET INPUT OUTPUT INTELLIGENT 72VDC 40A SLOT EXT.BATTERY OUTPUT SOCKET...

  • Page 6: Installation Instructions

    RACK TOWER ONLINE UPS Note: Diagrams take the type of 0.9PF for example, the type of 0.8PF is similar. Due to the technology upgrading and development, goods and diagrams might have some differences. 3. Installation instructions 3.1 Attention items of installation ●The UPS installation environment must be with good ventilation, away from water, flammable gases and corrosive entities.
  • Page 7 RACK TOWER ONLINE UPS 3.2.1 Tower installation The UPS system is packaged with feet and extensions, those can be used to install tower UPS model. ① Take out two groups of feet and extensions from package, assemble by embedding them with each other as shown in step1, Place the two support feet in parallel on horizontal surface, and then put the machine into two support feet carefully as shown in step2 and step3.
  • Page 8 RACK TOWER ONLINE UPS ② Slide the UPS unit into the rack mount enclosure, attach the UPS to the rack with screws. 3.2.2 Single UPS output connection Normally, output connection of 1~10KVA type is configured with sockets or terminal blocks, users can plug the load cable into the UPS socket to energize the load as following pictures.

  • Page 9: Installation Procedure

    RACK TOWER ONLINE UPS ●The output cables of each UPS are recommended to connect together on a common terminal block, then output to the load. ●Each UPS should be equipped individual battery pack. ●Wiring installation for parallel UPS system please refer to the wiring diagrams are given below, switches of 6KVA should withstand more than 40A/250VAC, and switches of 10KVA should withstand more than 63A/250VAC.
  • Page 10 RACK TOWER ONLINE UPS Short Pin ②Connect output cables of all UPS together to a common terminal block. ③Connect input cables of all UPS together to one common utility power terminal block. U t i l i t y pow er suppl y I nput com m on t er m i nal bl ock O ut put com m on t er m i nal bl ock Load...
  • Page 11 RACK TOWER ONLINE UPS Output Input Wiring diagram for two UPS parallel system Input Output Wiring diagram for three UPS parallel system ④ If the UPS is the standard type, each UPS has batteries inside already. If the UPS is the long-run type, each UPS should be equipped a individual battery pack.

  • Page 12: External Battery Connection Procedure For Long Back Up Type

    RACK TOWER ONLINE UPS ＞Turn off the parallel system Hold on the OFF KEY of any one UPS of system for more than 4 seconds, it would turn off the whole parallel system. Hold on the OFF KEY of any one UPS of system for more than 1 second(less than 4 seconds), it would turn off single UPS you choose, of course if you need to turn on it again or turn on any other single UPS of the system, just press ON KEY of that UPS to start it.

  • Page 13: Network Functions

    RACK TOWER ONLINE UPS 3.5 Network functions 3.5.1 Communication port Users could monitor the UPS system through the communication port such as standard RS232 port and standard USB port with computer. With a communication wire to connect UPS and computer, could simply achieve UPS management.

  • Page 14: Panel Function And Operation

    RACK TOWER ONLINE UPS ●Fist of all, remove the intelligent slot cover; ●Then insert the intelligent card (SNMP card, dry contact or USB card); ●Last, screw the intelligent card back. > SNMP card (option) SNMP card on UPS is compatible with the most software, hardware and network operating system, it is a network management of UPS, with this function, UPS can login on internet , which can supply information of UPS status and input power, and even possible to control UPS via net management system.
  • Page 15 RACK TOWER ONLINE UPS 7 5 % 2 5 % 5 0 % 1 0 0 % OUTPUT 2 5 % 5 0 % 7 5 % 1 0 0 % TEST/MUTE ROTATE ※ ON/OFF key （ ） Press and hold this key for more than half a second to turn on the UPS. ※...

  • Page 16: Led Function

    RACK TOWER ONLINE UPS OUTPUT ※ INQUIRING key （ ） Non-function setting mode: 1) Press and hold for more than half a second (less than 2 seconds): display the items orderly. 2) Press and hold for more than 2 seconds: Circularly and orderly display the items every 2 seconds, when press and hold the key for some time again, it will turn to output status.

  • Page 17: Lcd Display Function

    RACK TOWER ONLINE UPS Warning red LED is on: UPS fault. For example: Overload beyond the allowed ④ Warning LED time, inverter fault, BUS fault, over temperature fault, etc PS: LED display detail in different mode is listed at the back. 4.3 LCD display function Icon display area IN P U T...

  • Page 18: Single Ups Turn On/Off Operation

    RACK TOWER ONLINE UPS After over 20 seconds, this area will display the working mode of the machine. Such as STDBY(standby Mode), BYPASS(Bypass Mode), LINE(AC Mode), BAT(Battery Mode), BATT(Battery Self Test Mode ), ECO(Economic mode), SHUTDN(Shutdown mode), CUCF(Constant Voltage and Constant Frequency Mode). 4.4 Single UPS turn On/Off operation 4.4.1 Turn on operation >...

  • Page 19: Single Ups Panel Function Setting

    RACK TOWER ONLINE UPS 4.6 Single UPS panel function setting UPS has setting function. It can run the setting in any mode. After setting, it will become effective at once when meets some standards. The set information can be saved only when the battery connected and normally turning off the UPS.
  • Page 20 RACK TOWER ONLINE UPS any more. The “ON” letter will flash. Press and hold the inquiring key ( ) for more than half a second (less than 2 seconds) to determine whether the BPS function is used or not. If used, the corresponding word is “ON”, if not, the word is “OFF”.
  • Page 21 RACK TOWER ONLINE UPS ④ Exit from the setting interface. Press and hold function setting key for more than half a second (less than 2 seconds), exit from the setting interface and return to main interface. 2 5 % 5 0 % 7 5 % 1 0 0 % 2 5 %...
  • Page 22 RACK TOWER ONLINE UPS 7 5 % 2 5 % 5 0 % 1 0 0 % 7 5 % 2 5 % 5 0 % 1 0 0 % 4.6.5 Frequency converter mode setting ① CF mode only can be set in STDBY mode. In STDBY mode, enter the setting interface. Press and hold the function setting key for more than 2 seconds, then come to setting interface, Press and hold the inquiring key (...
  • Page 23 RACK TOWER ONLINE UPS 2 5 % 5 0 % 7 5 % 1 0 0 % 2 5 % 5 0 % 7 5 % 1 0 0 % 2 5 % 5 0 % 7 5 % 1 0 0 % 2 5 % 5 0 % 7 5 %...
  • Page 24 RACK TOWER ONLINE UPS 2 5 % 5 0 % 7 5 % 1 0 0 % 2 5 % 5 0 % 7 5 % 1 0 0 % 4.6.7 ID setting ① Enter the setting interface. Press and hold the function setting key for more than 2 seconds, then come to setting interface, press and hold the inquiring key ( ) for more than half a second(less than 2 seconds),...

  • Page 25: Parameters Inquiring Operation

    RACK TOWER ONLINE UPS 4.7 Parameters inquiring operation Press and hold the inquiring key for more than half a second(less than 2 seconds) to inquire about items. The inquired items include input, battery, output, load and temperature. The displayed items on LCD screen are showed as following: Output：Display the output voltage and output frequency of the UPS.

  • Page 26: Working Mode Introduction

    RACK TOWER ONLINE UPS 7 5 % 2 5 % 5 0 % 1 0 0 % ℃ T E MP 2 5 % 5 0 % 7 5 % 1 0 0 % Input: Display the voltage and frequency of the input. As the following picture shows: the input voltage is 120V(220V), input frequency is 50Hz.

  • Page 27: Line Mode

    RACK TOWER ONLINE UPS Bypass yellow LED is on, the buzzer beeps once every 2 minutes. The warning red LED is on when beeping, what LCD displays depending on the exact load and battery capacity. Turn to bypass mode under the following two conditions: ①...

  • Page 28: Appendix 1: The Table Of The Fault Code

    RACK TOWER ONLINE UPS Fault mode (LCD interface on which the fault code display) When UPS has faulted. The warning LED is on and the buzzer beeps. UPS will turn to fault mode. UPS cuts off the output and LCD display fault codes. At the moment, you can press the mute key to make the buzzer stop beeping temporarily to wait for maintenance.

  • Page 29: Appendix 2: Table For Working Status

    RACK TOWER ONLINE UPS 80、81、82、83、84 Relay fault 85、86、87、88、89 AC input SCR fault unused 90、91、92、93、94 CAN fault 95、96、97、98、99 ID conflict 100、101、102、103、104 Incompatible type Appendix 2: Table for working status LED on Front panel Working status Alarm beep Note Normal Battery Bypass Fault Inverter mode (mains power) ●...

  • Page 30: Troubleshooting

    RACK TOWER ONLINE UPS Warning for mains ● ★ 2 beeps / sec power overload Protect operation for ● ● mains power mode Long beep overload Warning for battery ● ● ★ 2 beeps / sec overload Protect operation for ●...
  • Page 31 RACK TOWER ONLINE UPS Trouble indication Failure point Solution Fault LED on, audible buzzer Please test the bus bar voltage or contact Persistently alarm, the fault code is Bus bar voltage fault the supplier. 00-14 Fault LED on, audible buzzer Please check the soft start up circuit, persistently alarm, the fault code Soft start fault...

  • Page 32: Appendix 2: Symbol Instructions

    RACK TOWER ONLINE UPS LCD flickers supplier. Please press the power key more than 2 Pressing time too short seconds to start the UPS. The input connection is Please connect the input well, if the battery not ready or UPS fail to start when operate “On” voltage is too low, please disconnect the UPS internal battery input and start the UPS with no-load.

  • Page 33: Appendix 3: Specification Sheet (1-3Kva)

    RACK TOWER ONLINE UPS Turn on Overload Turn off Battery inspection Standby or Shutdown Repeat Display screen repeat key Battery Appendix 3: Specification Sheet (1-3KVA) Rated Capacity 1KVA 1.5KVA 2KVA 3KVA Input Rated input voltage 220V or 120V Rated input frequency 50Hz/60Hz auto-adaptive (115～295)±5VAC (half load) Input voltage range...
  • Page 34 RACK TOWER ONLINE UPS 120V 100/110/115/120/127VAC Setting available via LCD 0.8/0.9 0.8/0.9 0.8/0.9 Output PF 0.8/0.9 Output power(Watt) 800/900 1200/1350 1600/1800 2400/2700 105%～150%: transfer to bypass mode after 30s giving alarm; Inverter overload capability ＞150% : transfer to bypass mode after 300ms giving alarm; ±1% Voltage accuracy Load crest...

  • Page 35: Appendix 4: Specification Sheet (6-10Kva)

    RACK TOWER ONLINE UPS Graphics analyze; Switch on/off UPS system; Monitor UPS working status; History record Software function and event log Display LCD/LED Appendix 4: Specification Sheet (6-10KVA) Rated Capacity 6KVA 10KVA Input Rated input voltage 220V Rated input frequency 50Hz/60Hz auto-adaptive (115～295)±5VAC (half load);...

  • Page 36: Appendix 5: Physical (The Type Of 220V)

    RACK TOWER ONLINE UPS Battery Battery type Sealed lead acid maintenance free battery Quantity DC voltage 192V 216.8±1V Output voltage Inbuilt battery 16*7AH/12V 16*9AH/12V Charge method Three-stage charging Back up time Based on battery capacity Standard model:1A Charge current Long time model: 1A /3A /5A /8A System Control and Communication Function Silence;...

  • Page 37: Appendix 6: Physical (The Type Of 120V)

    RACK TOWER ONLINE UPS 6KVA 10KVA Rated Capacity 440×565×132 Dimension (W*D*H) Battery pack 440×565×132 20.7 22.4 Long 20.7 22.4 Standard Weight (Kg) Battery pack Appendix 6: Physical (The type of 120V) 1KVA 1.5KVA 2KVA 3KVA Rated Capacity 440×468×88 Long 440×468×88 (Without Internal battery) 440×468×88 Dimension Standard...
